ABS-AT Control (Non Controlled)

Part 1 Of 2:

Part 2 Of 2:

DIAGNOSIS:
Power source voltage of the ABS Control Module And Hydraulic Control Unit (ABSCM&H/U) is high.

TROUBLE SYMPTOM:
ABS does not operate.

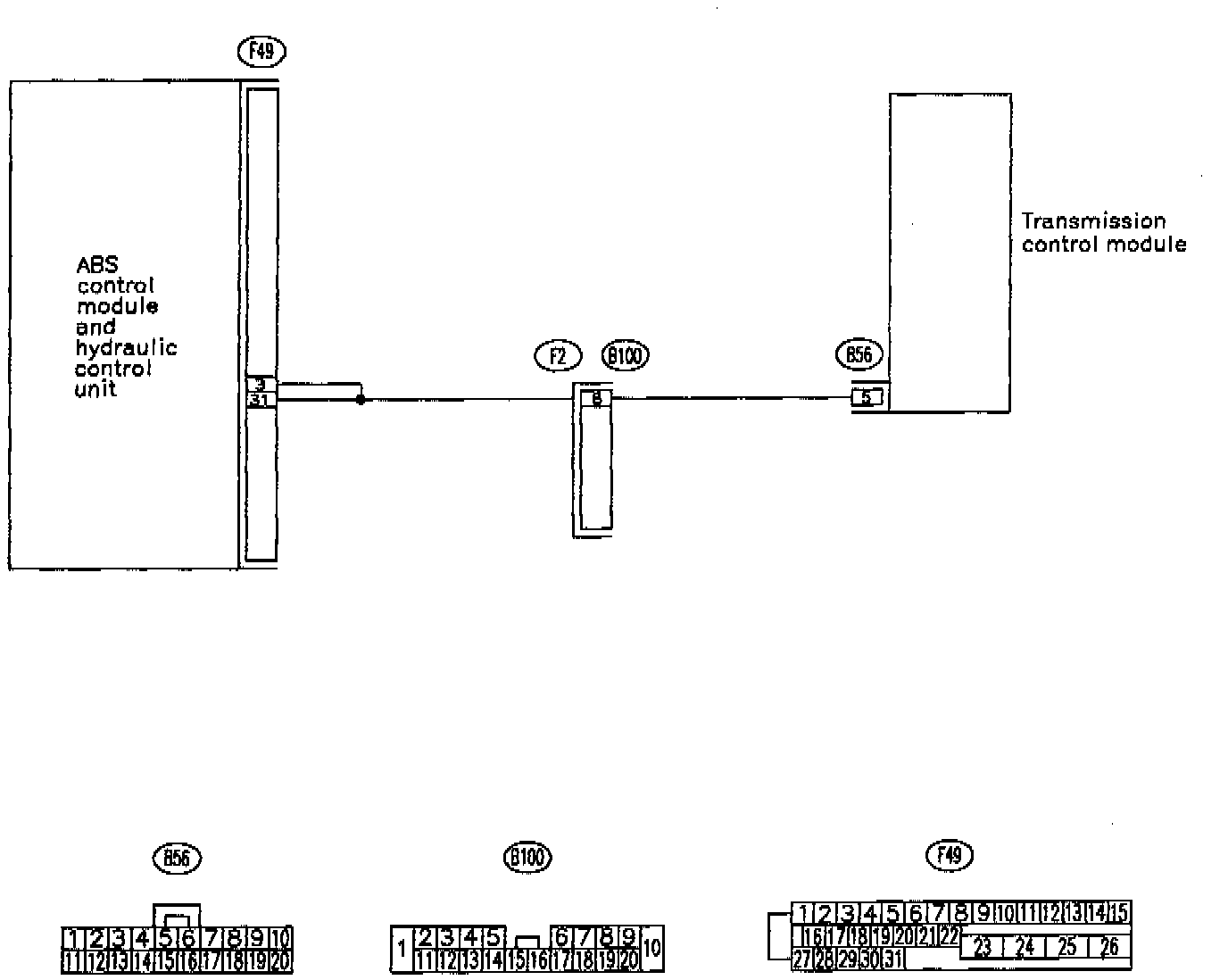

WIRING DIAGRAM:
