Transmission Control Systems

TROUBLE CODE 32: VEHICLE SPEED SENSOR 1

DIAGNOSIS:
- Input signal circuit of TCM is open or shorted.

TROUBLE SYMPTOM:
- No lock-up or excessive tight corner "braking".

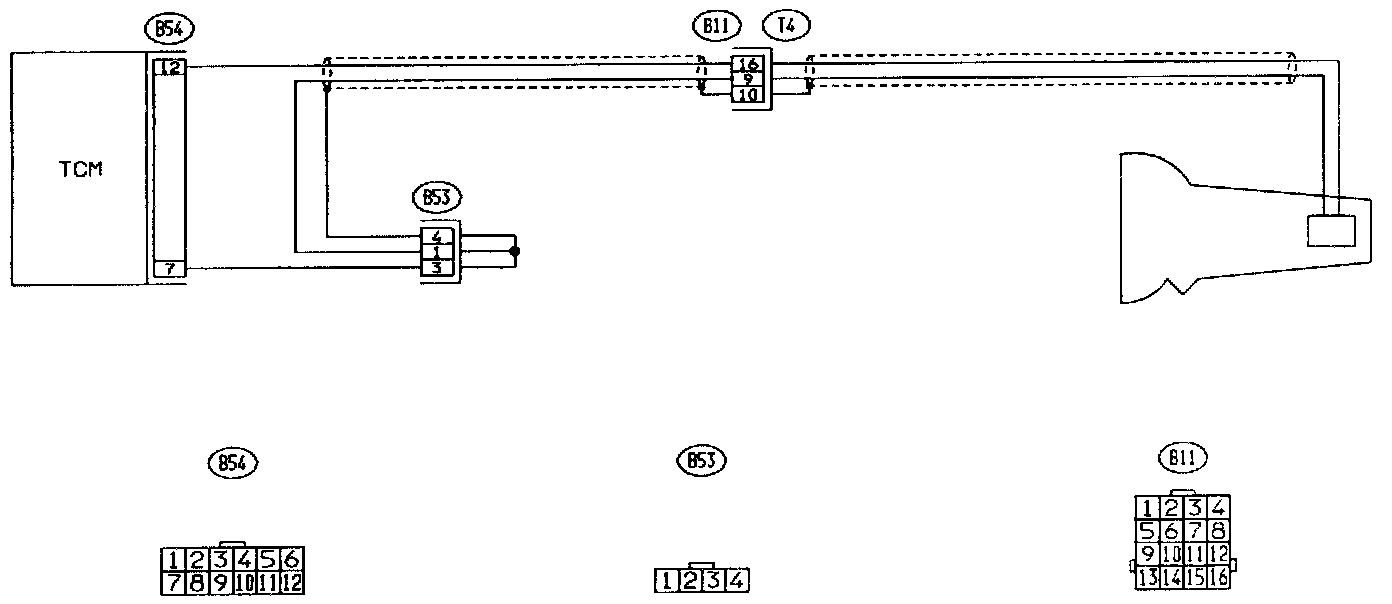

WIRING DIAGRAM

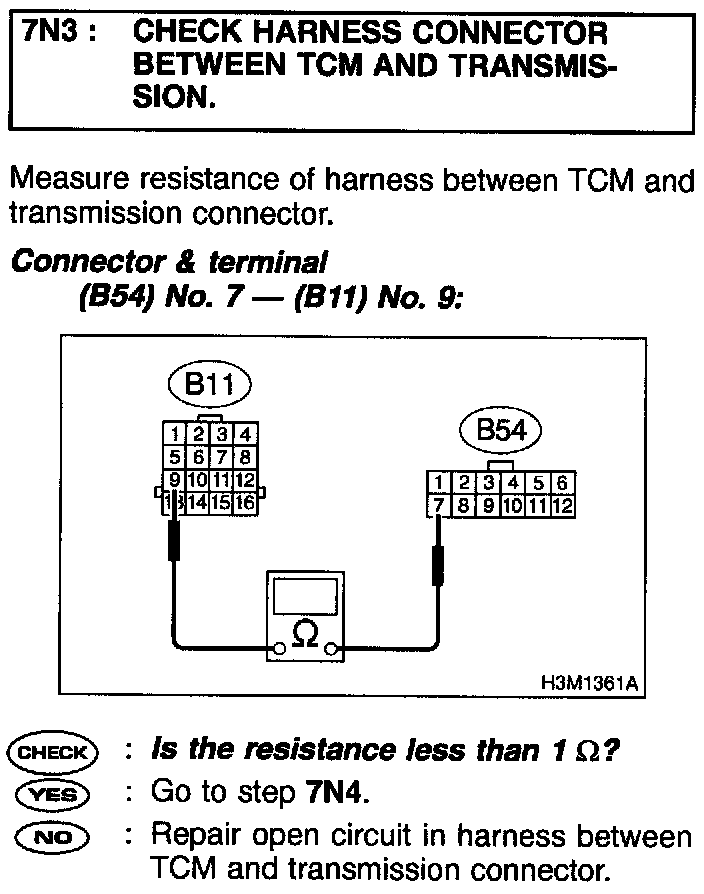

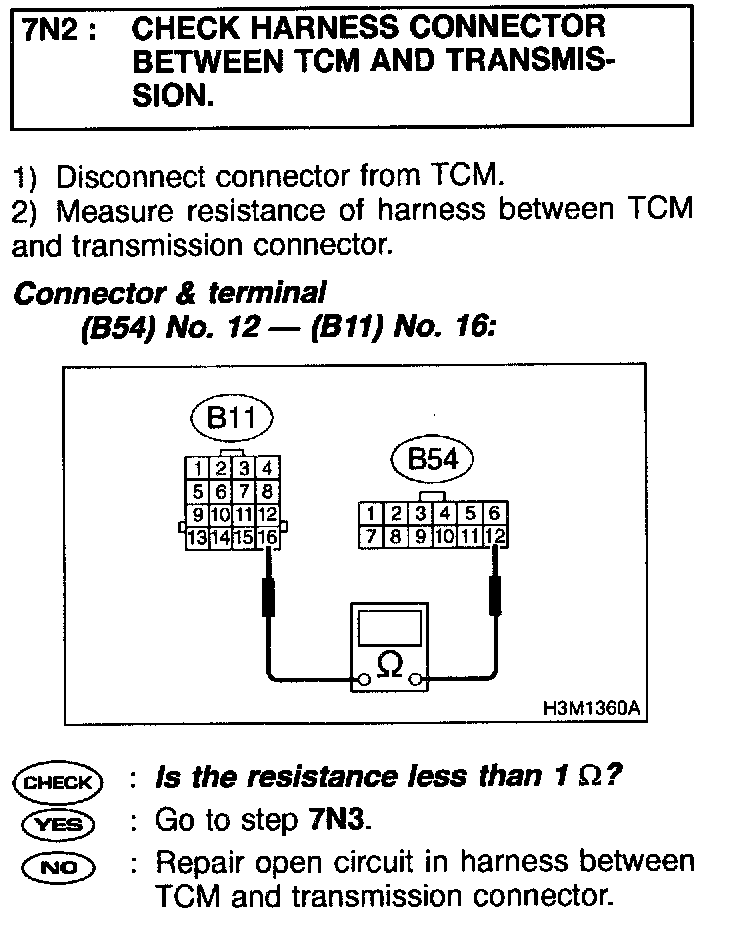

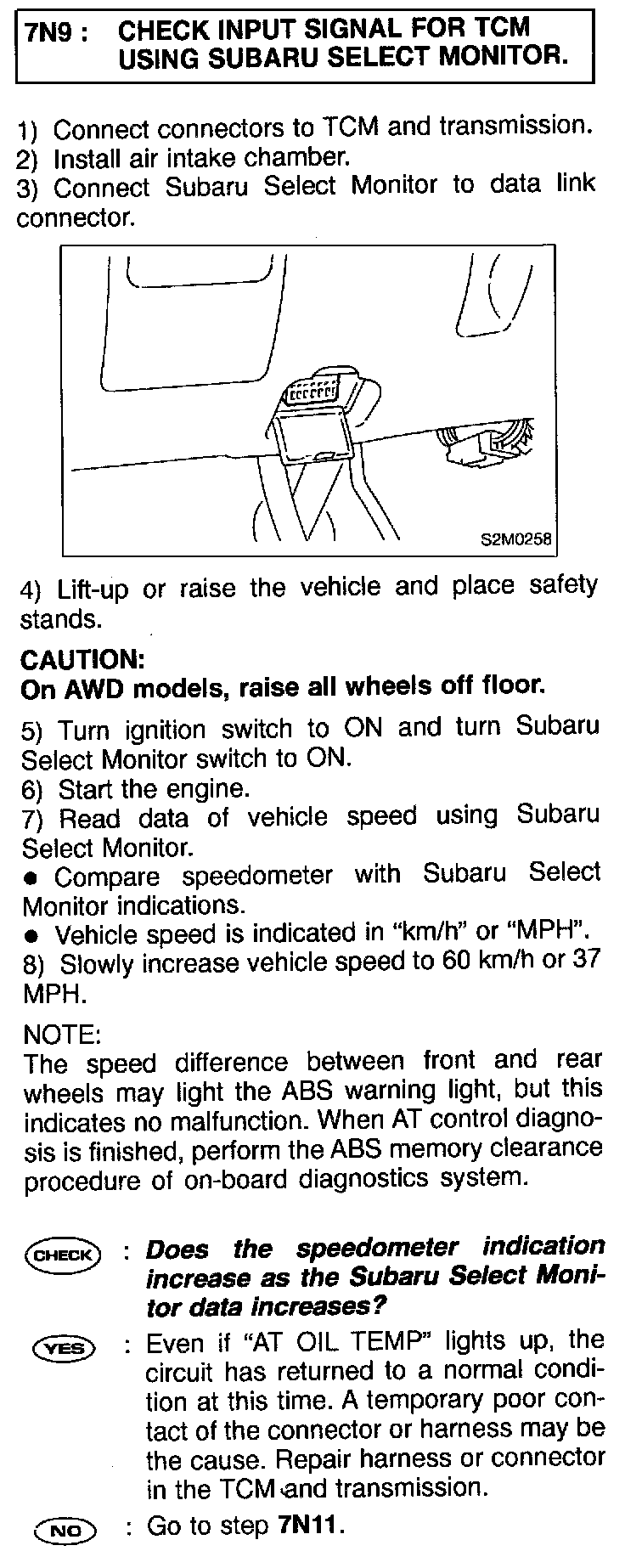

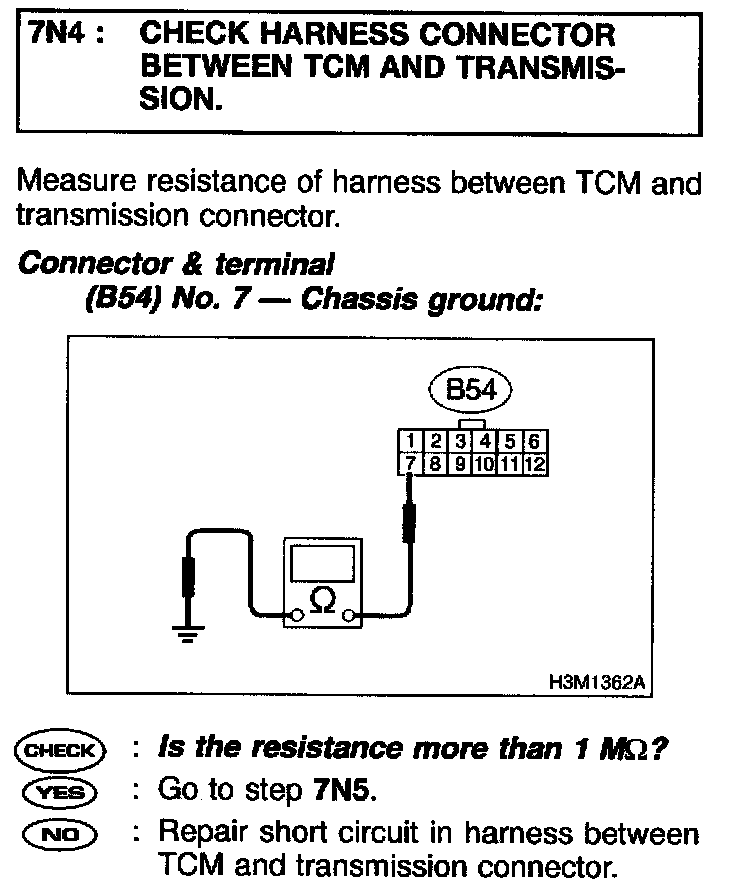

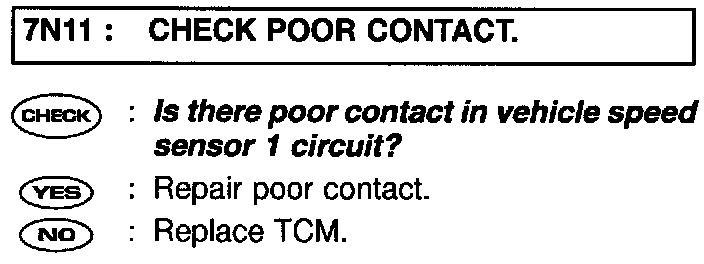

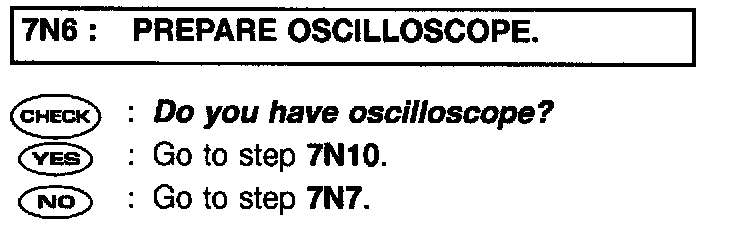

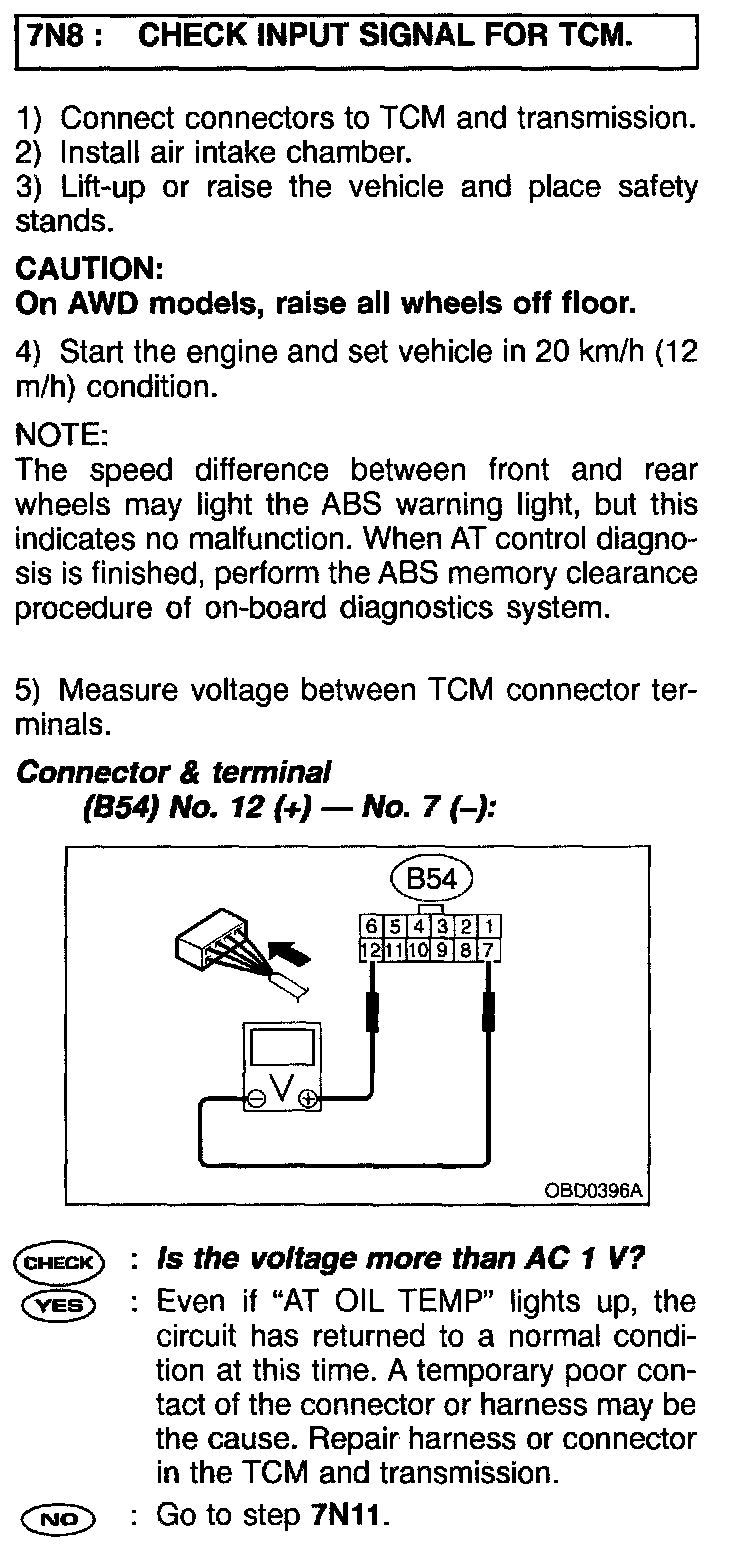

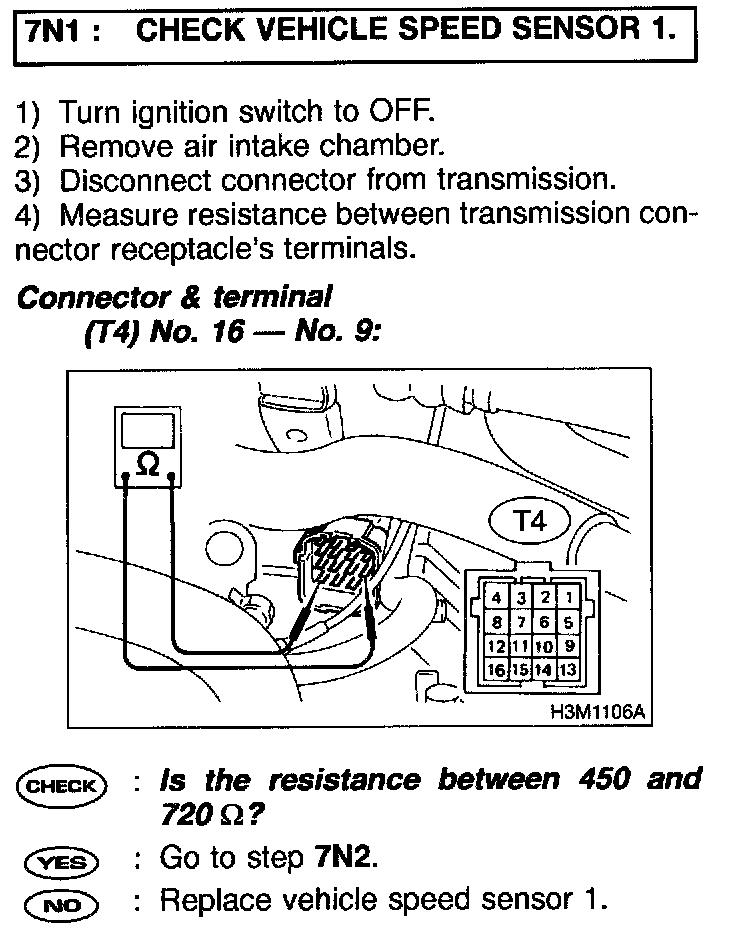

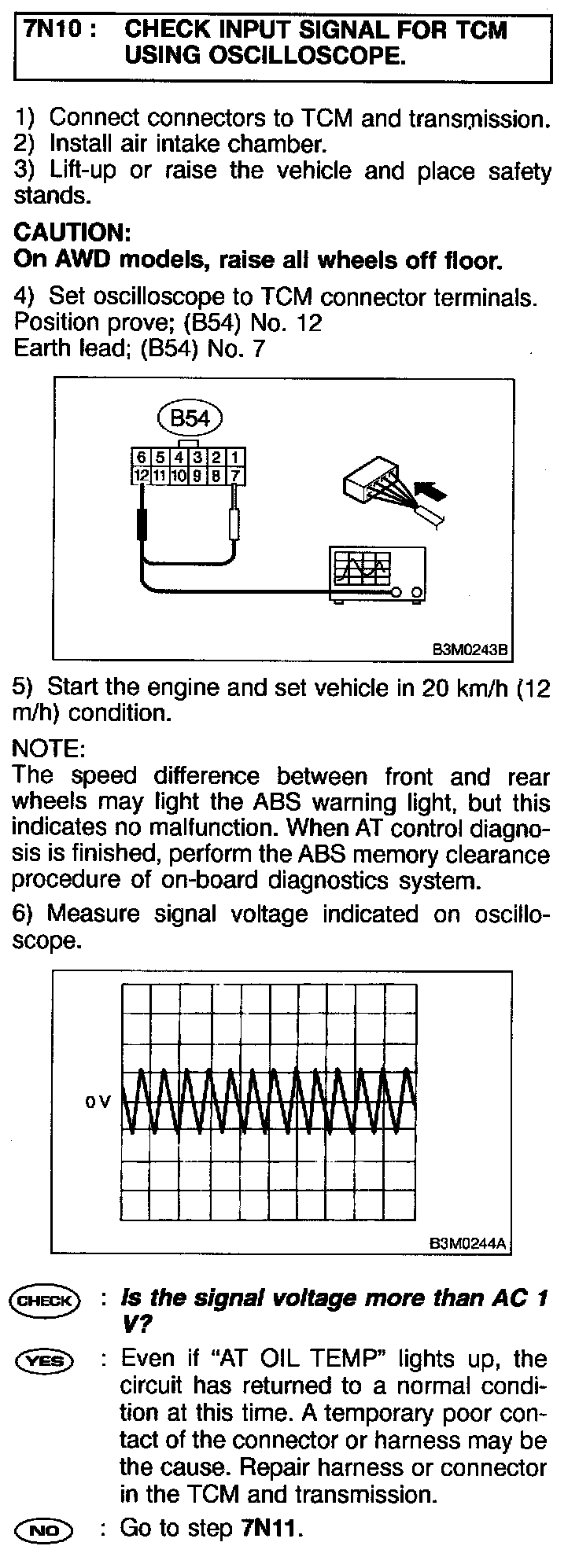

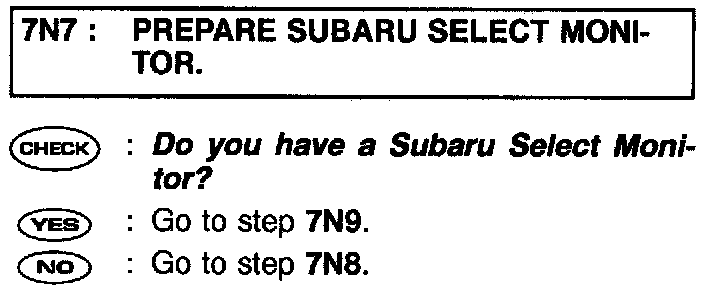

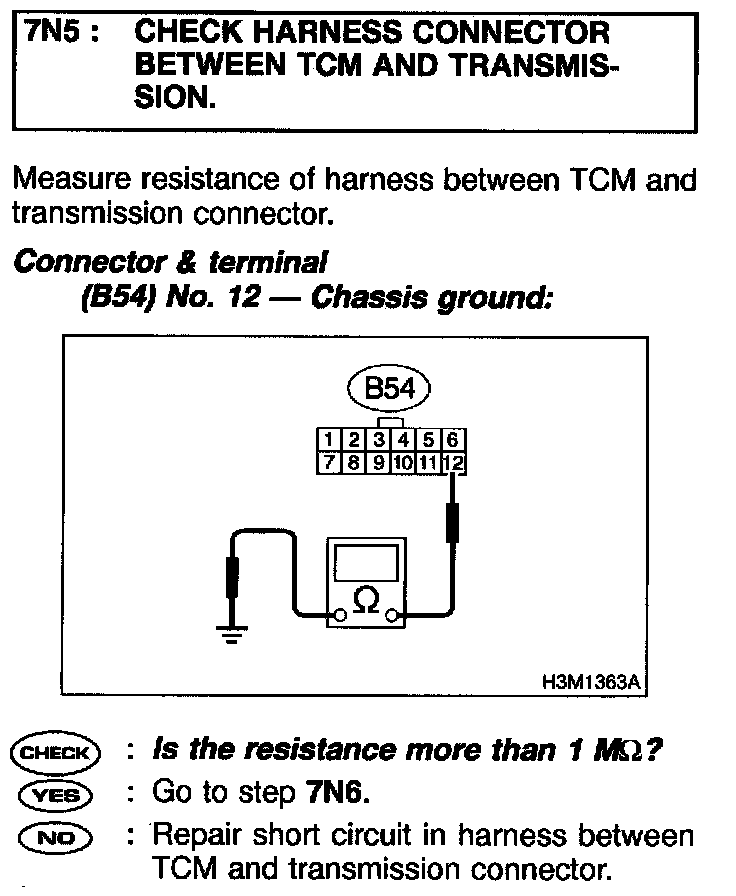

PROCEDURES
