Transmission Control Systems

TROUBLE CODE 31: THROTTLE POSITION SENSOR

DIAGNOSIS:
- Input signal circuit of throttle position sensor is open or shorted.

TROUBLE SYMPTOM:
- Shift point too high or too low; engine brake not effected in "3" range; excessive shift shock; excessive tight corner "braking".

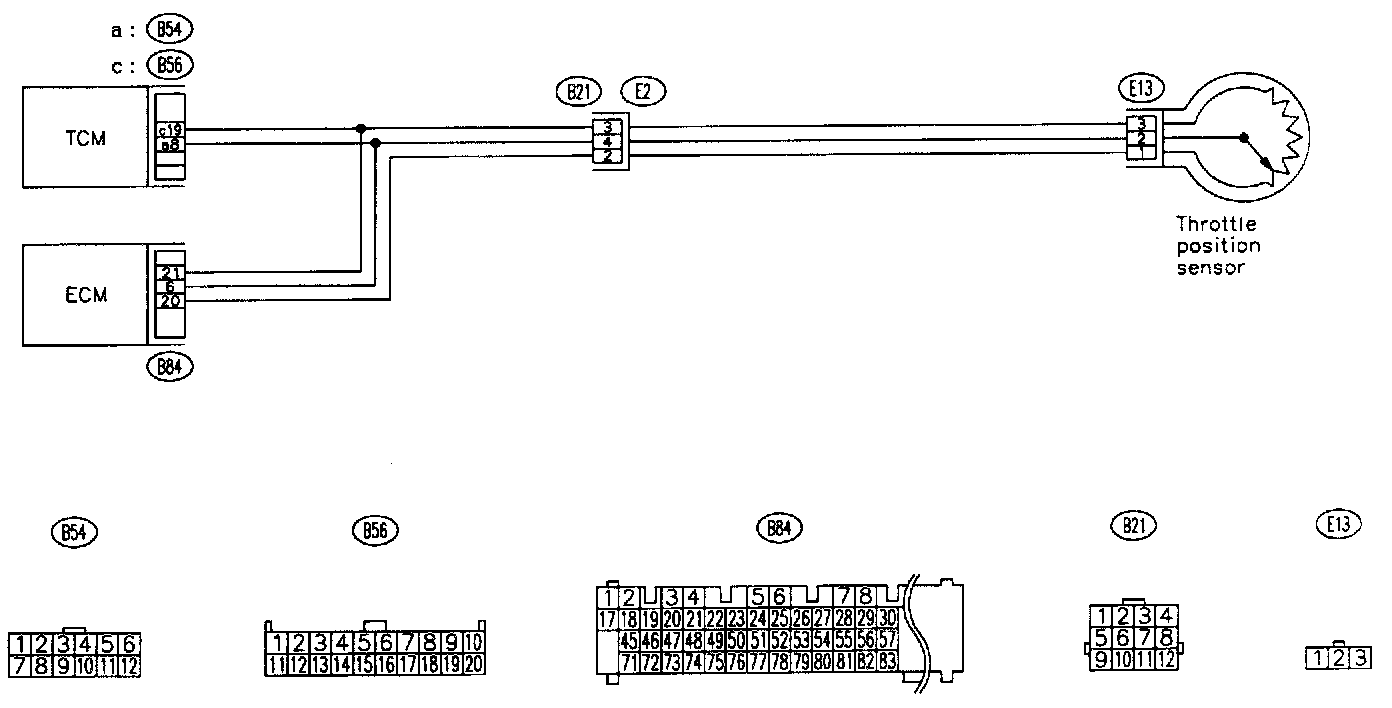

WIRING DIAGRAM

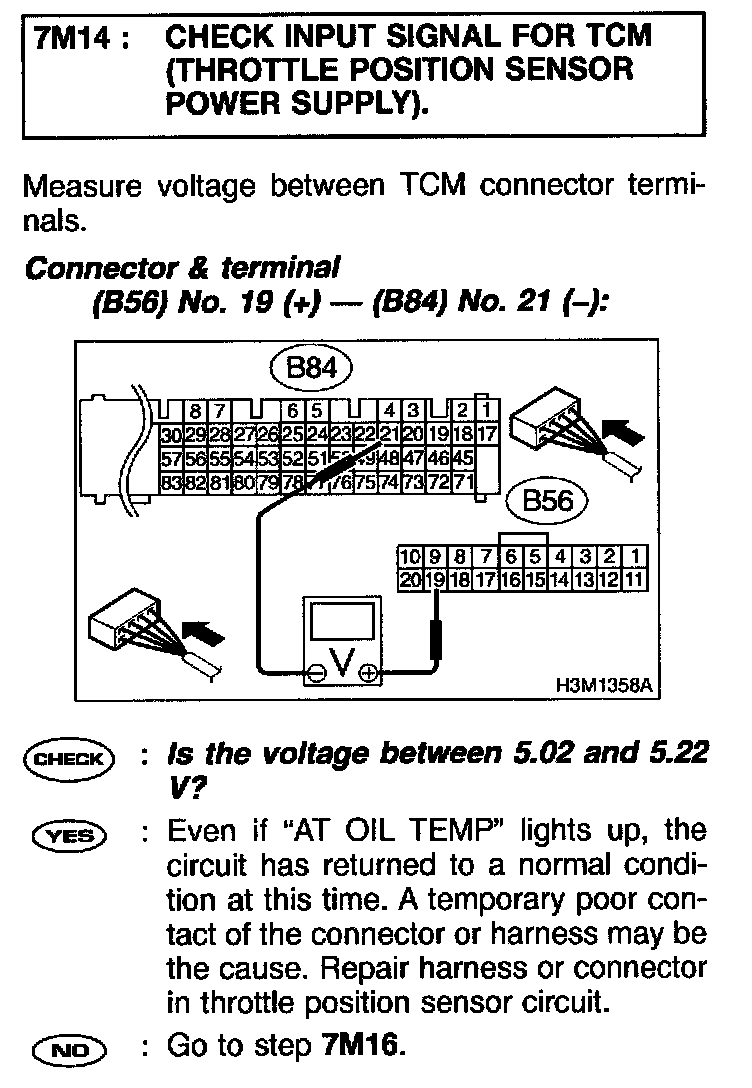

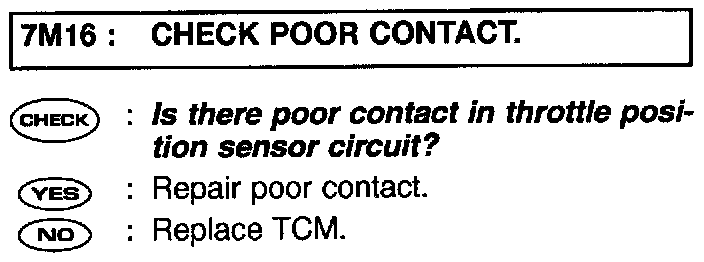

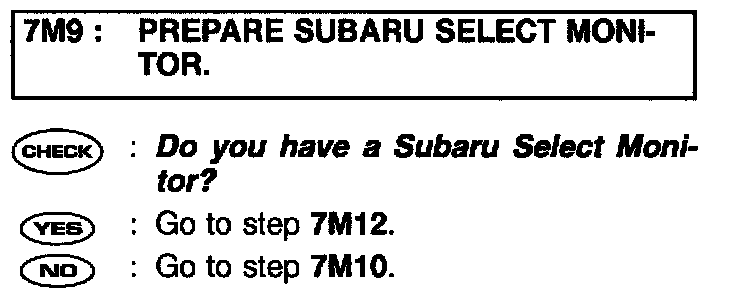

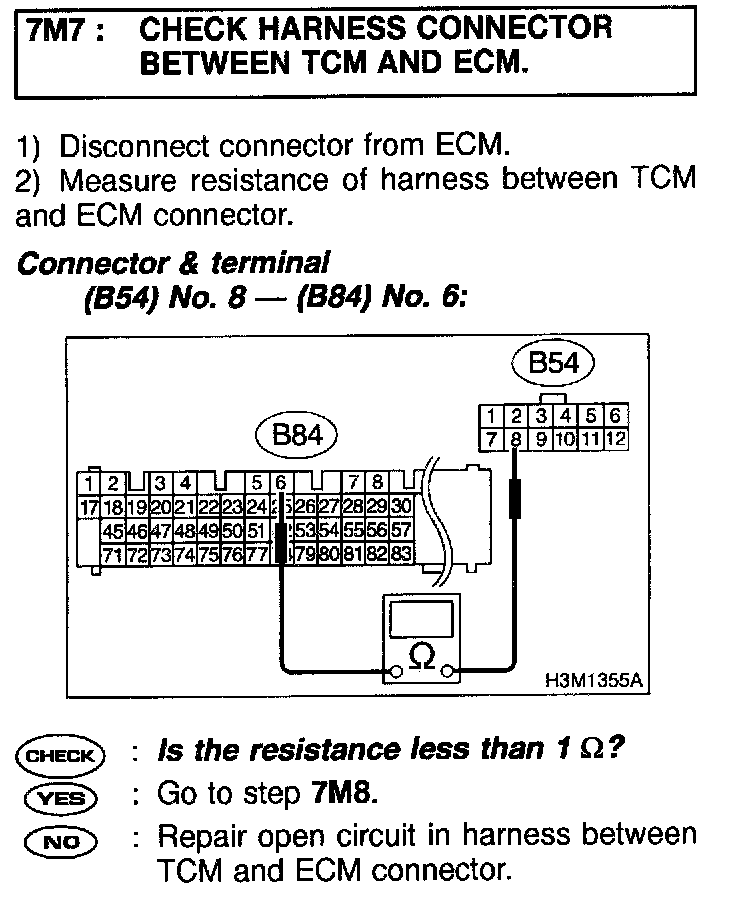

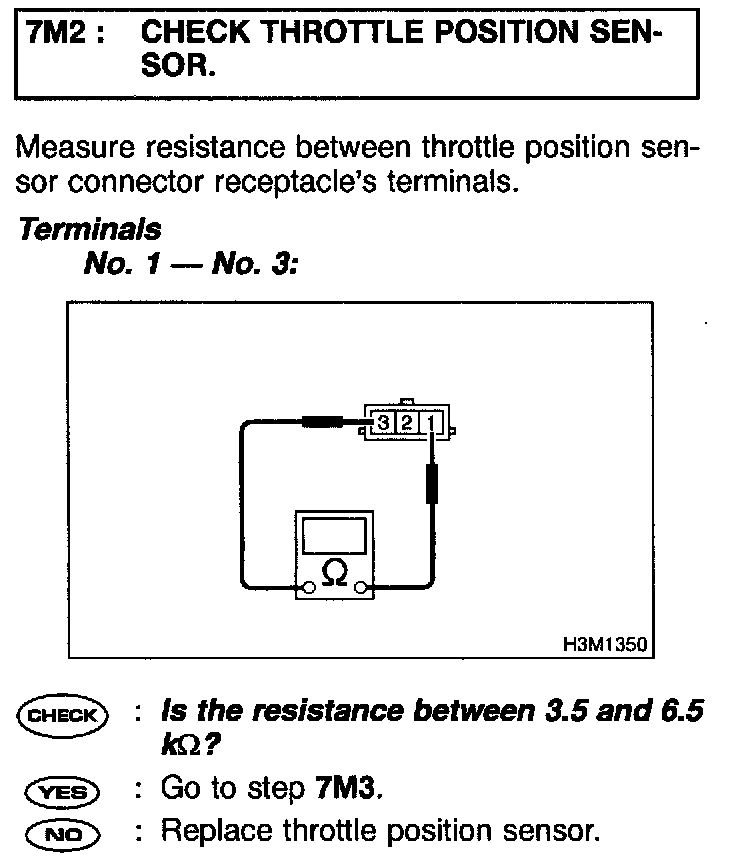

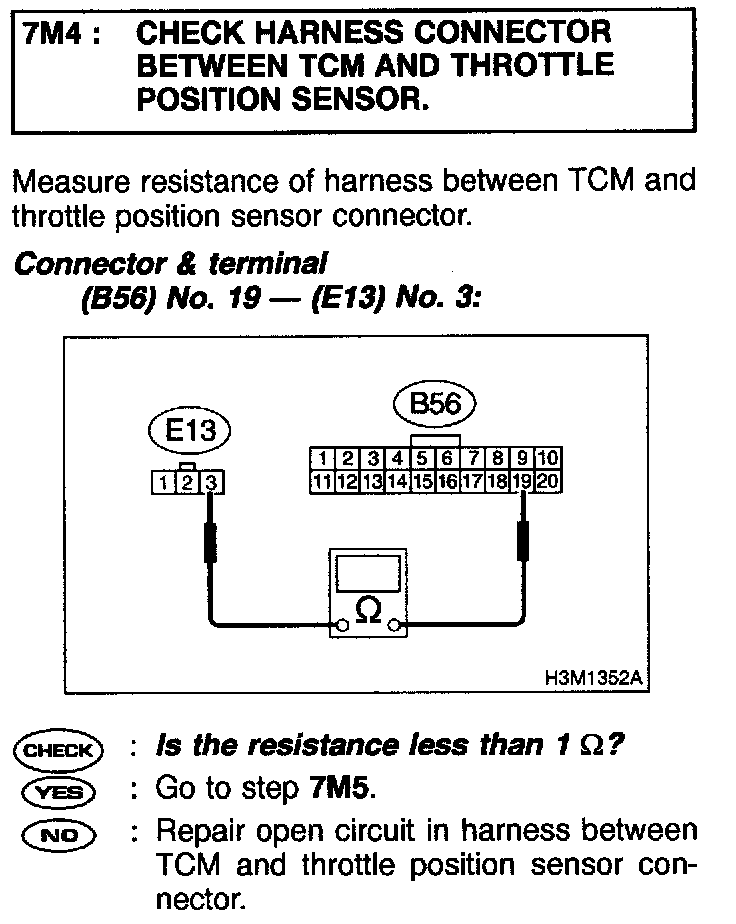

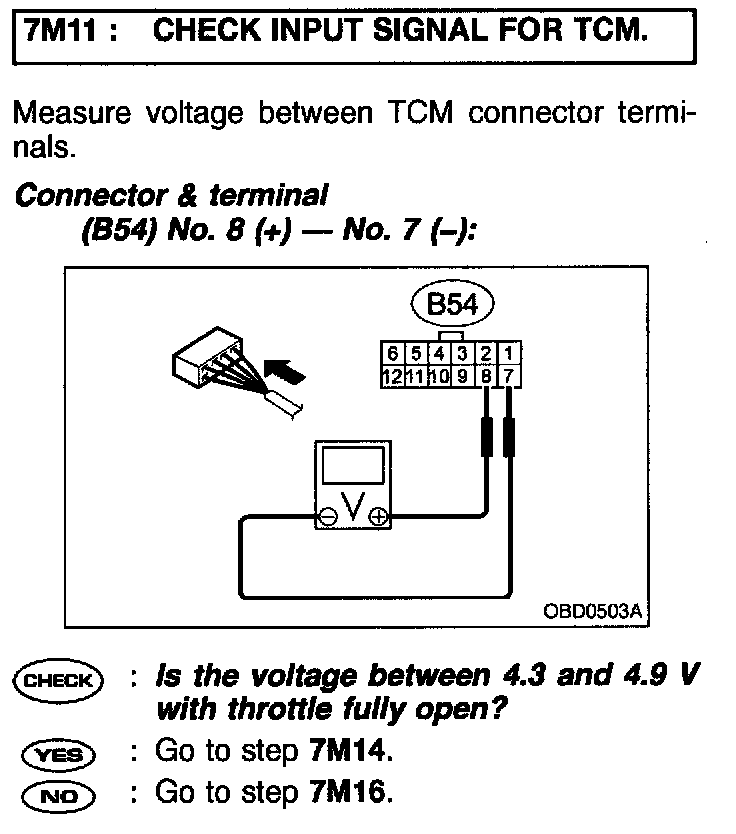

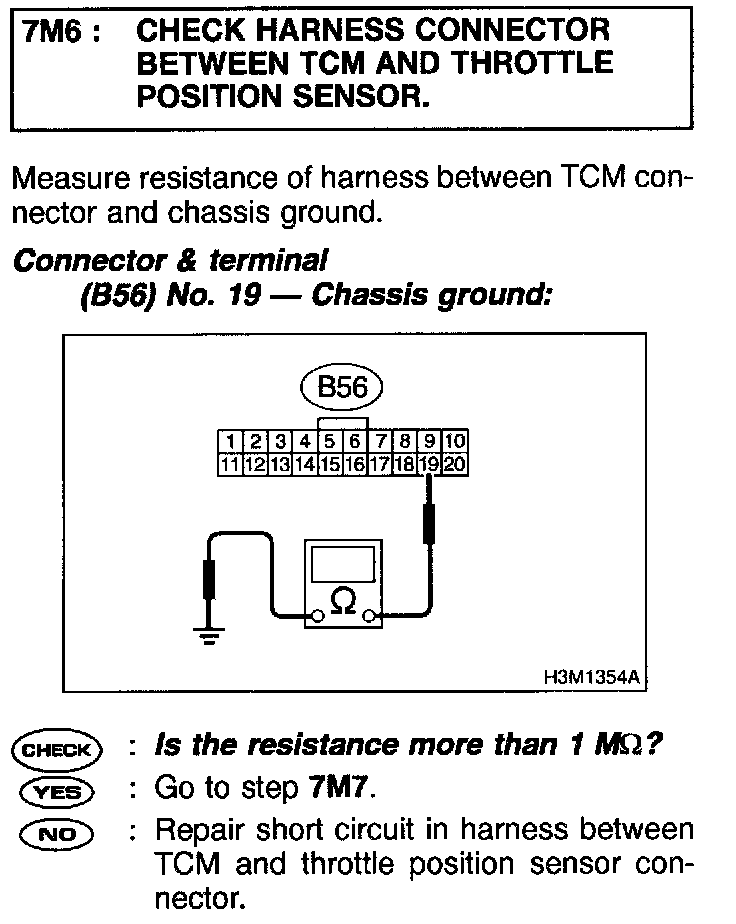

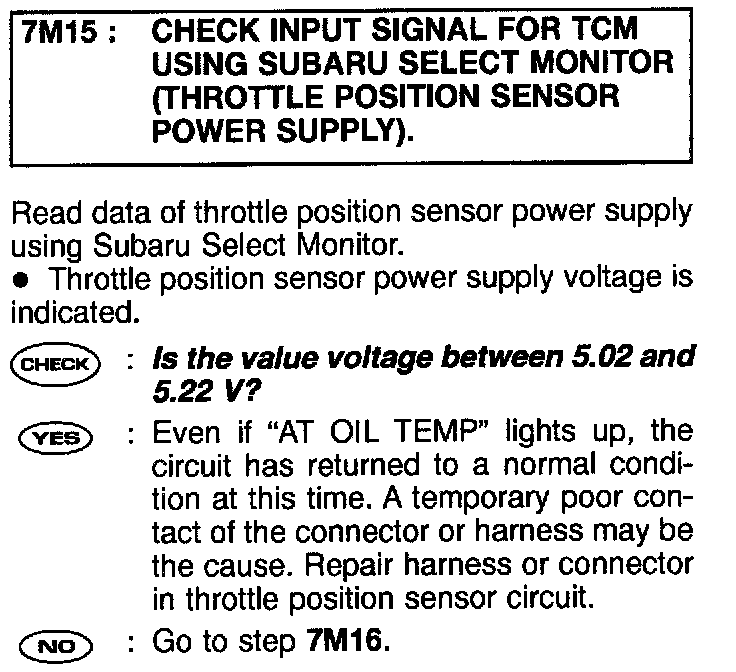

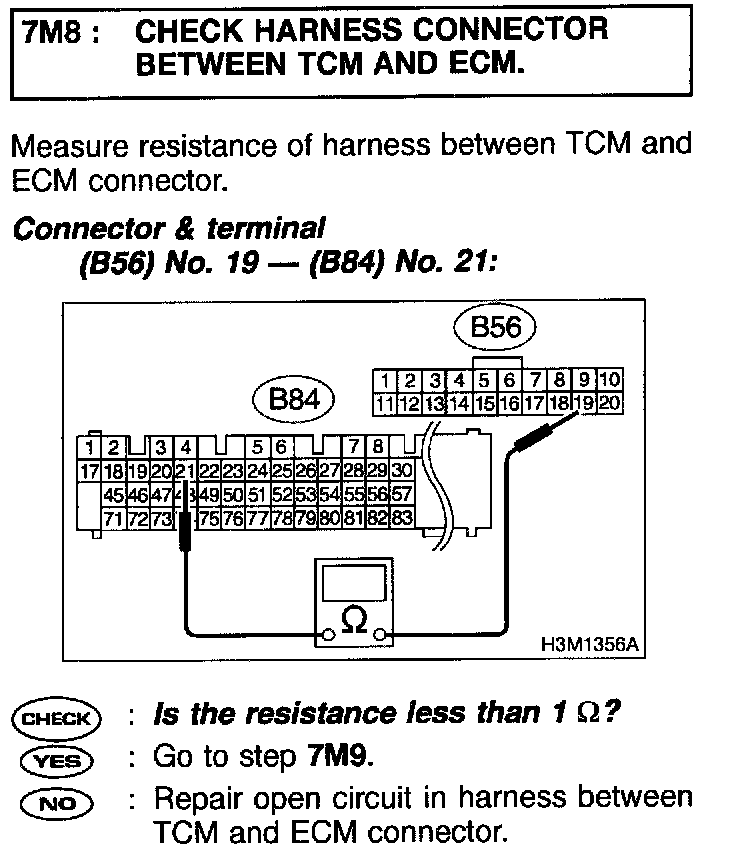

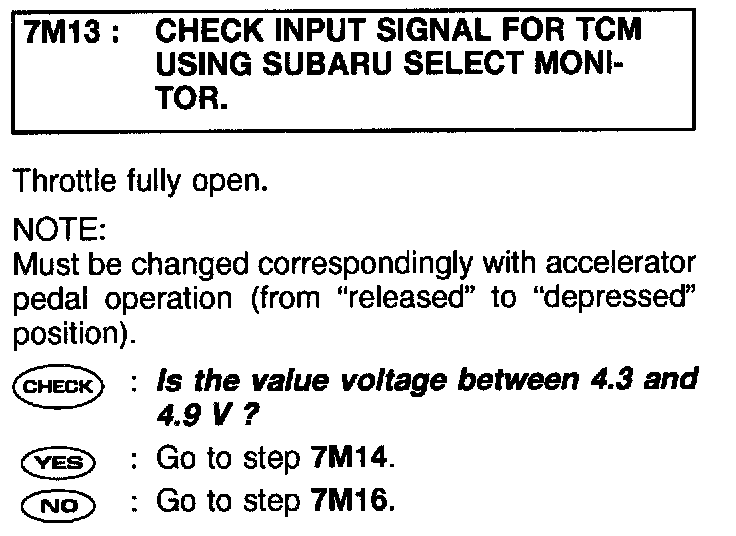

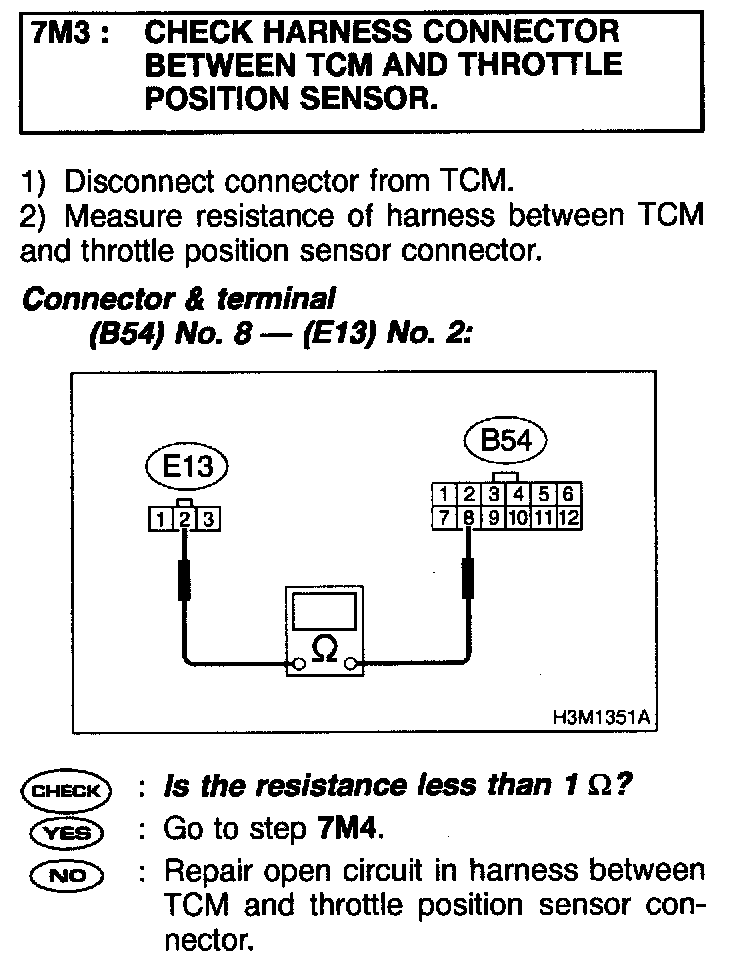

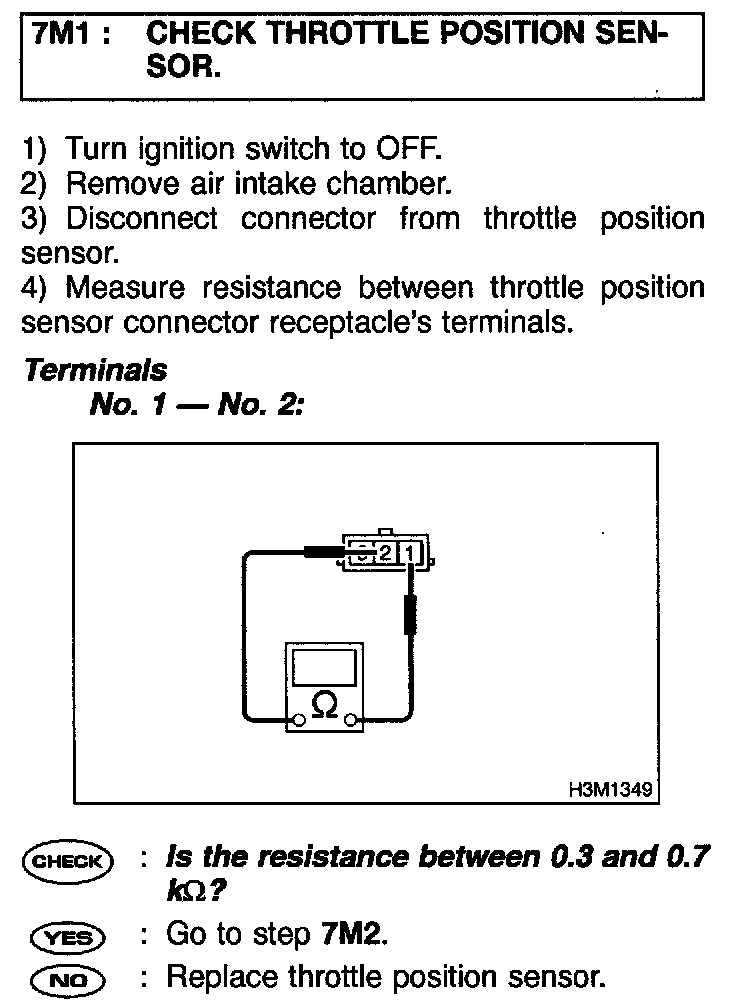

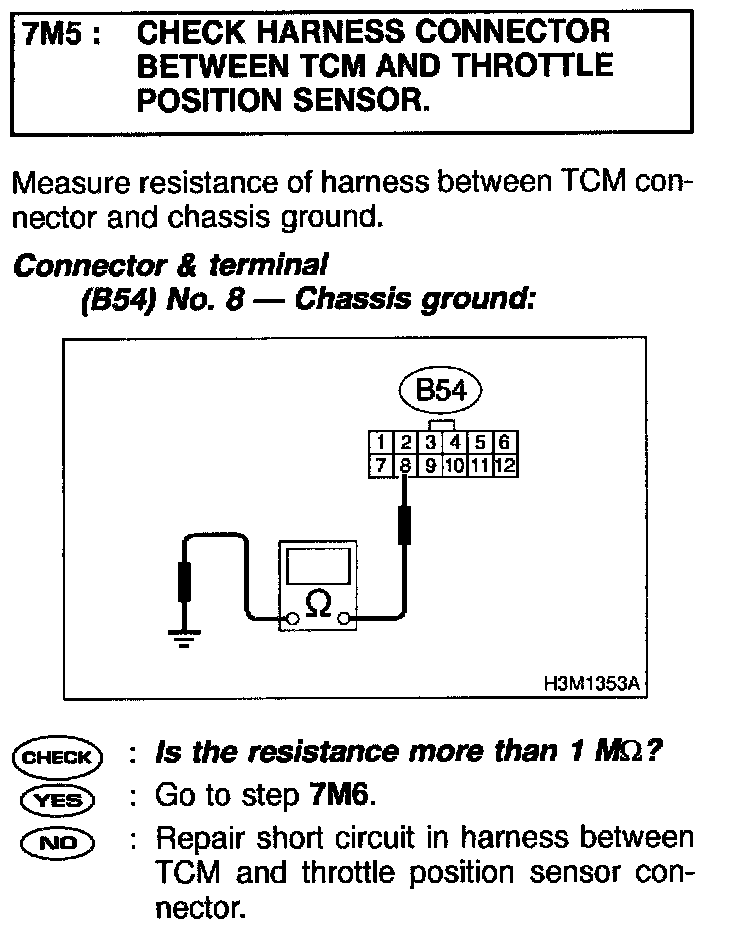

PROCEDURES
