Transmission Control Systems
TROUBLE CODE 25: TORQUE CONTROL SIGNALDIAGNOSIS:
- Torque control signal is not emitted from TCM.
- The signal circuit is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.

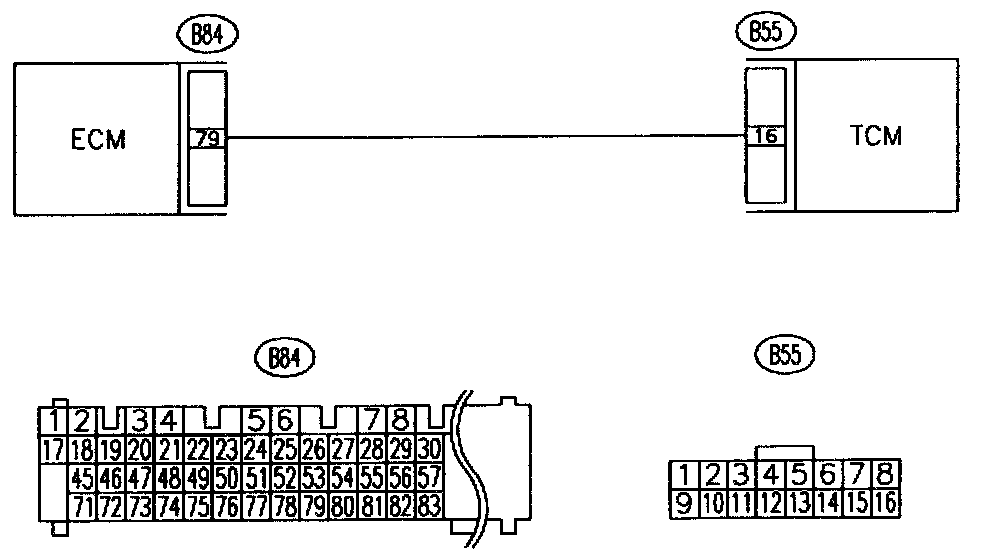

WIRING DIAGRAM

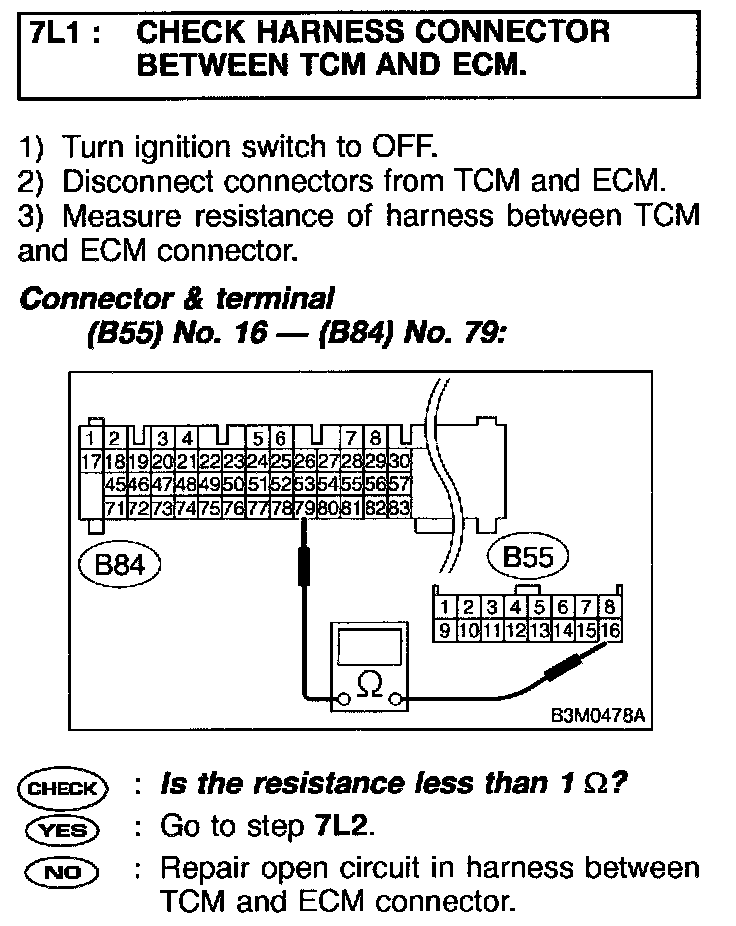

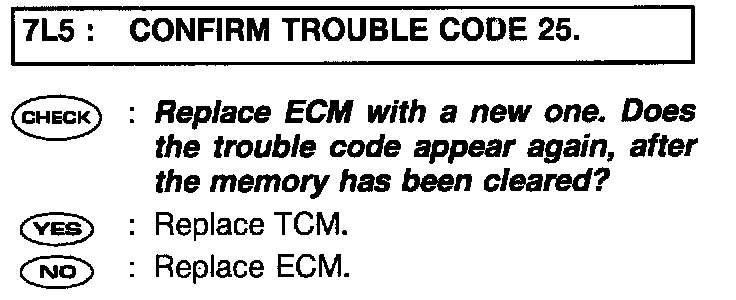

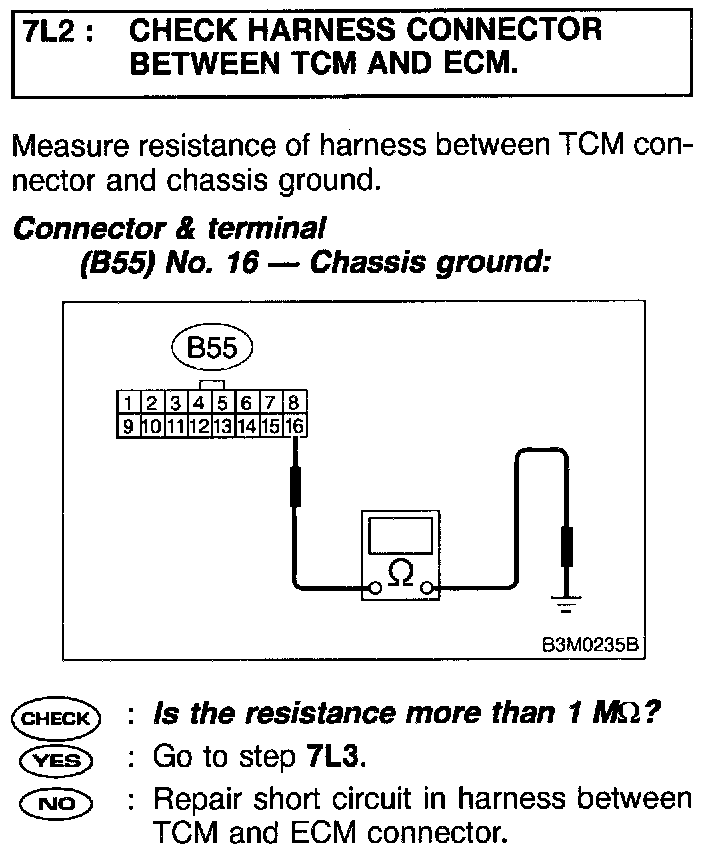

PROCEDURES
DIAGNOSIS:
- Torque control signal is not emitted from TCM.
- The signal circuit is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.
WIRING DIAGRAM
PROCEDURES
