Transmission Control Systems

TROUBLE CODE 24: DUTY SOLENOID C

DIAGNOSIS:
- Output signal circuit of duty solenoid C is open or shorted.

TROUBLE SYMPTOM:
- Excessive "braking" in tight corners.

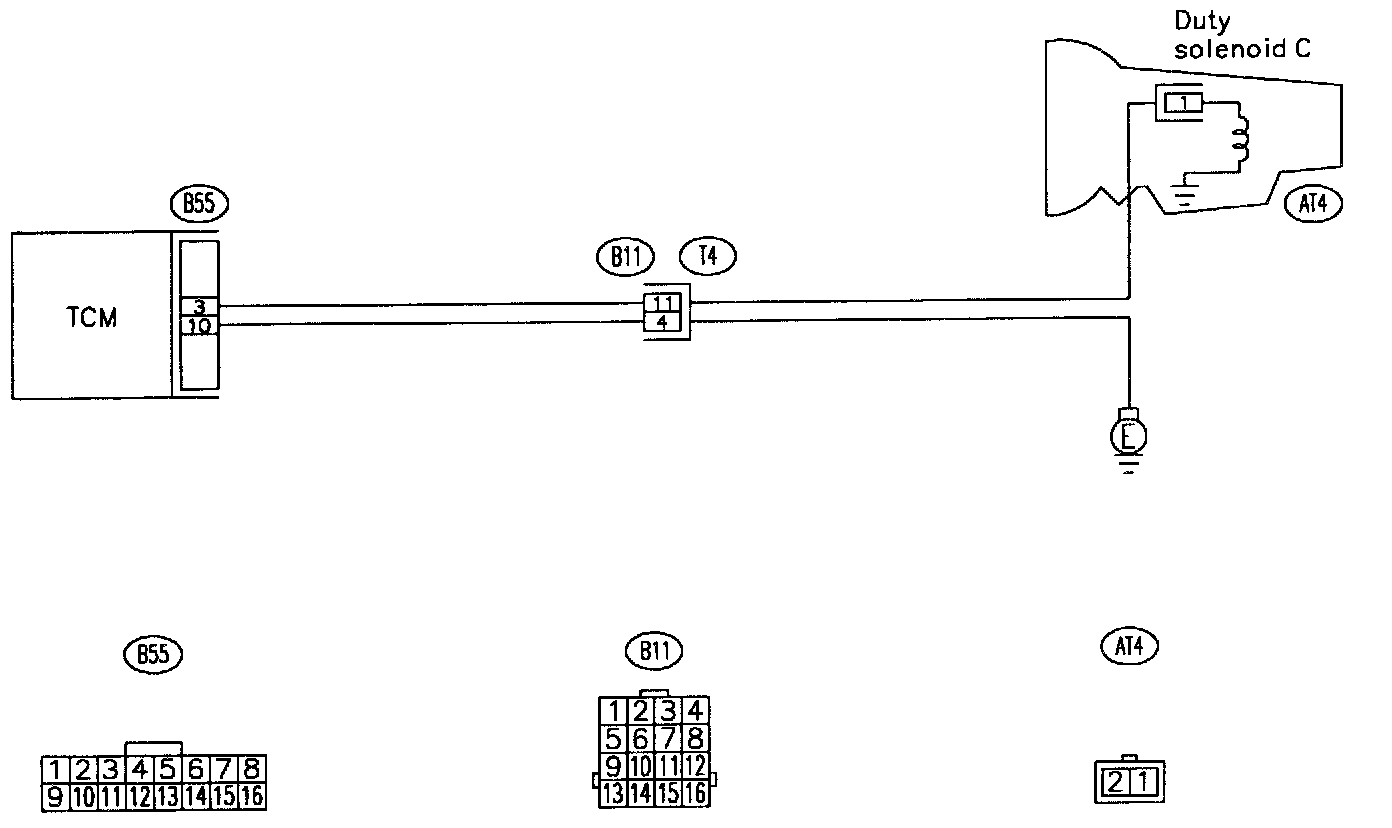

WIRING DIAGRAM

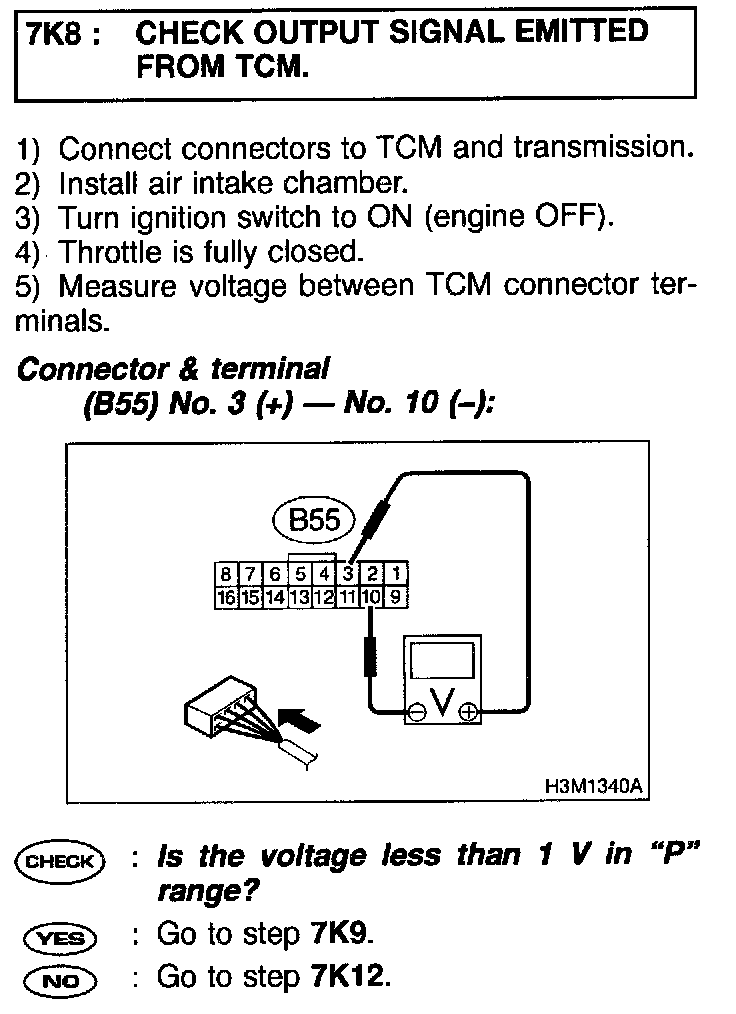

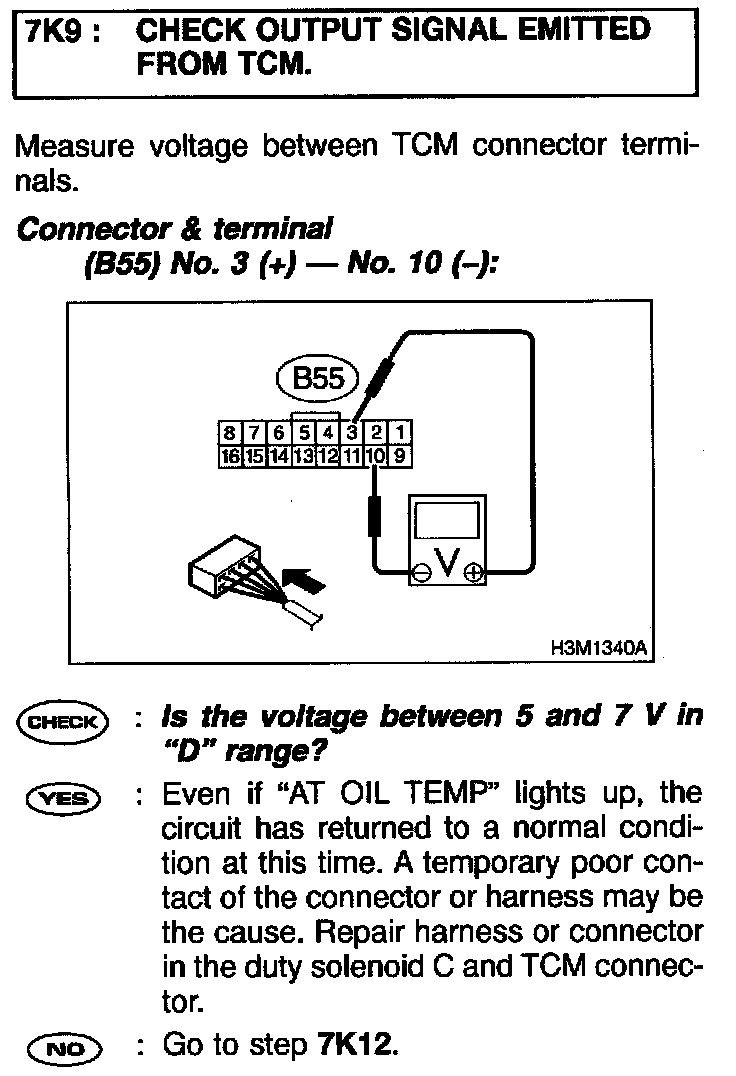

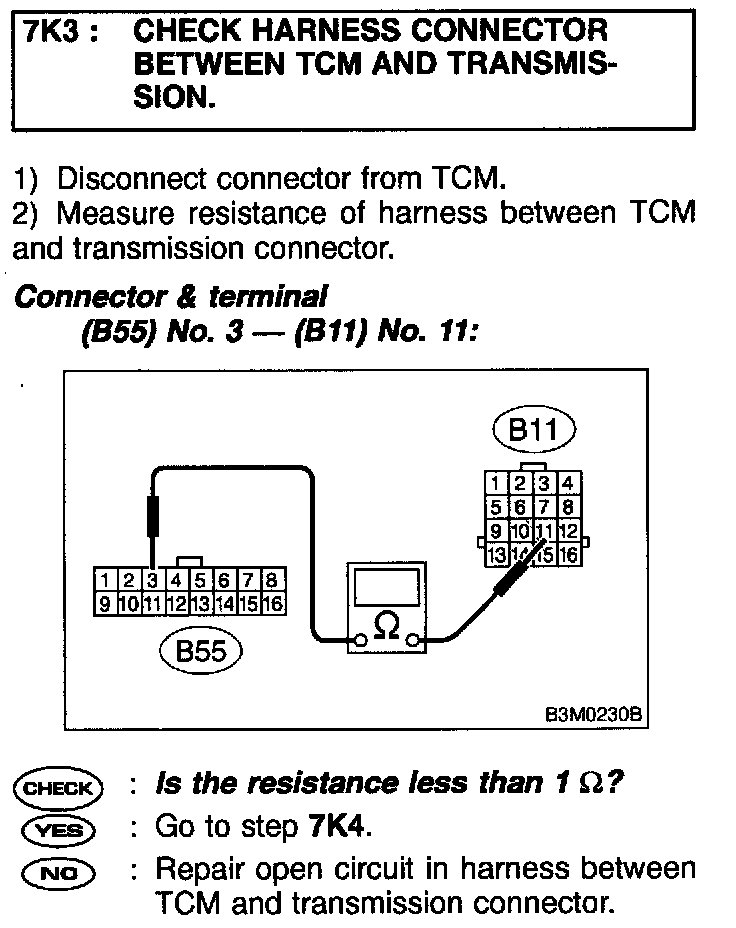

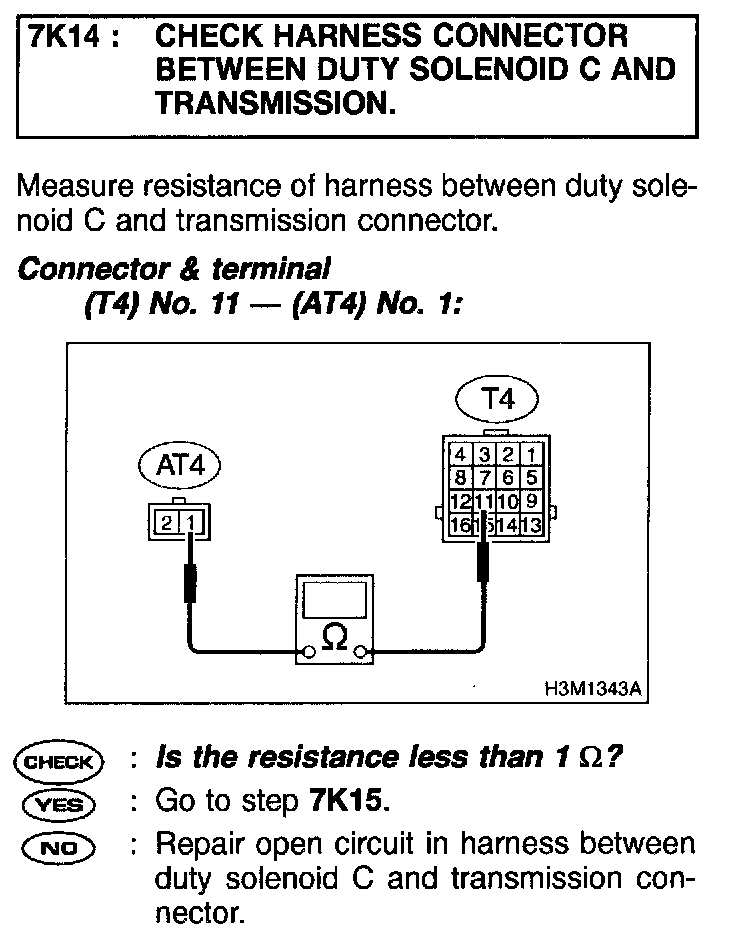

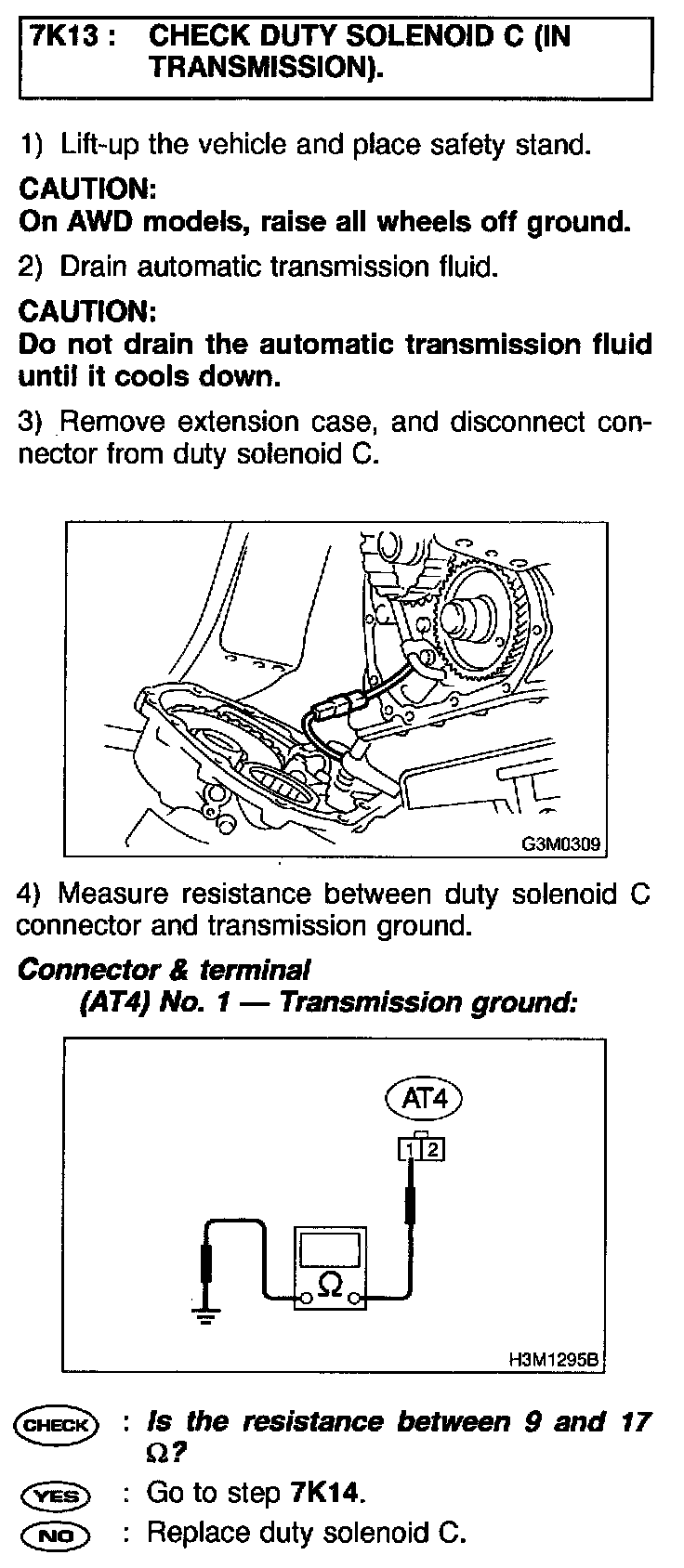

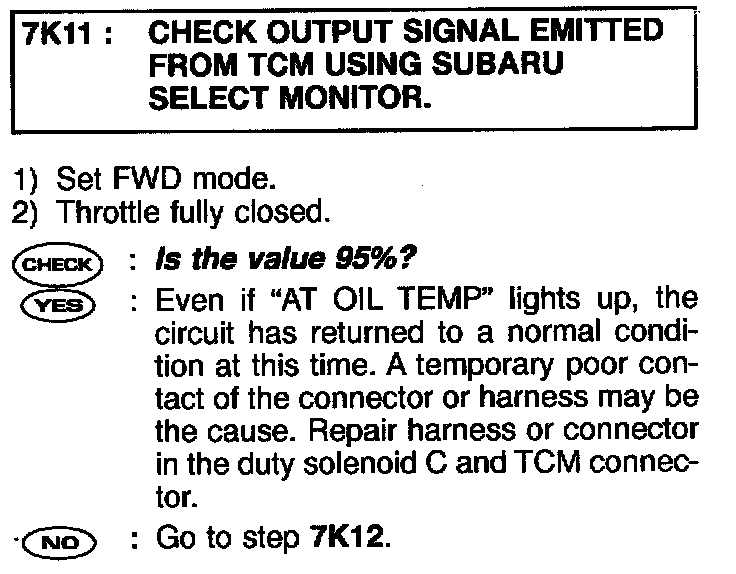

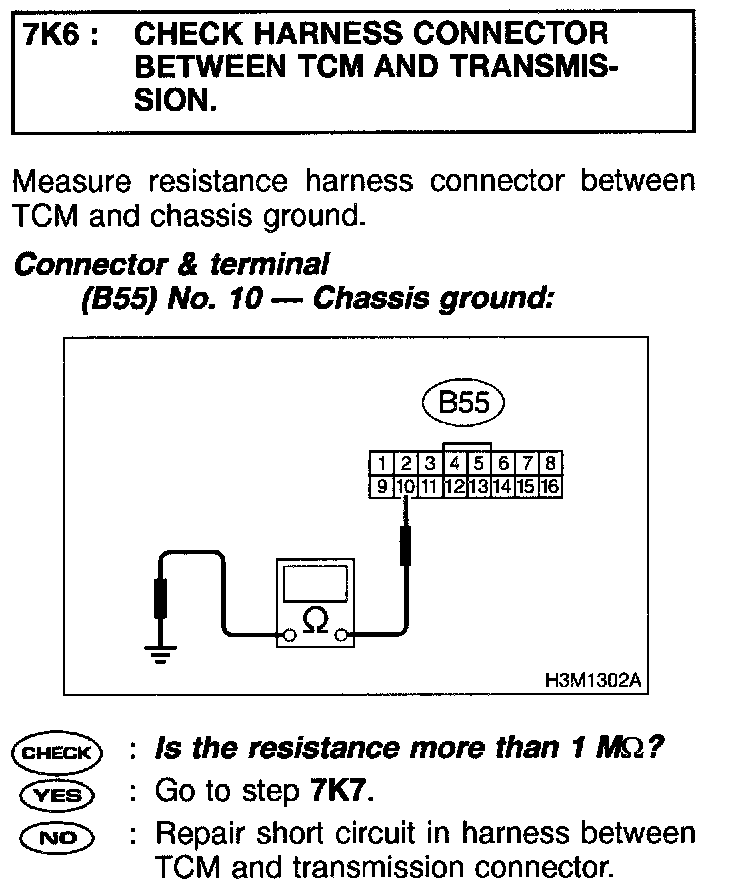

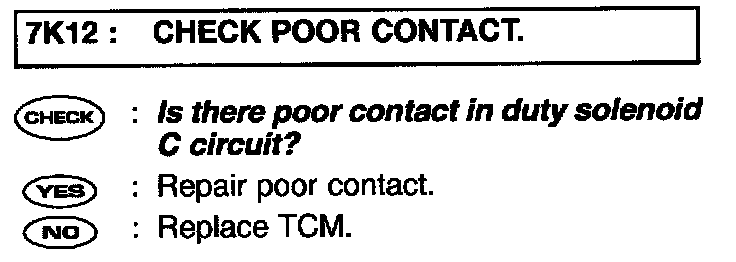

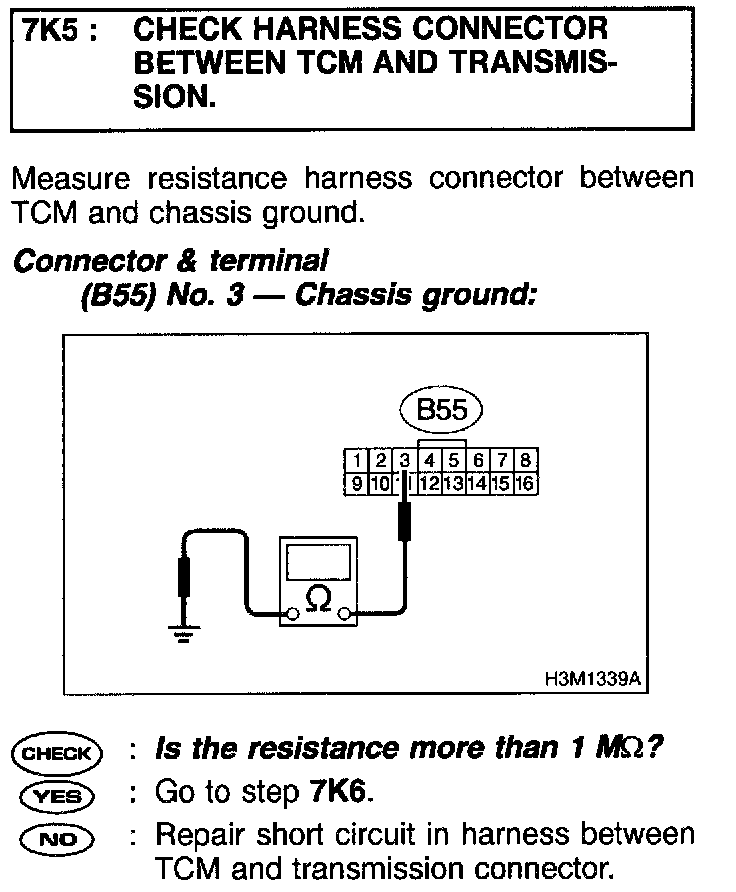

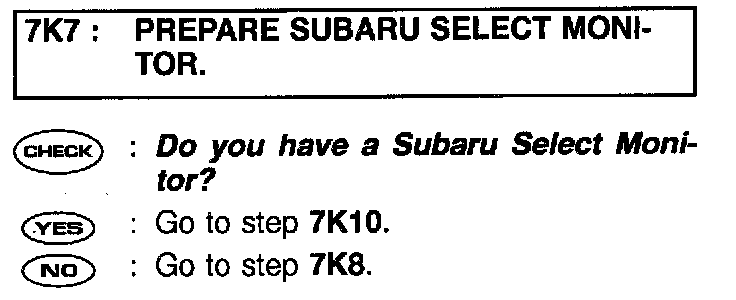

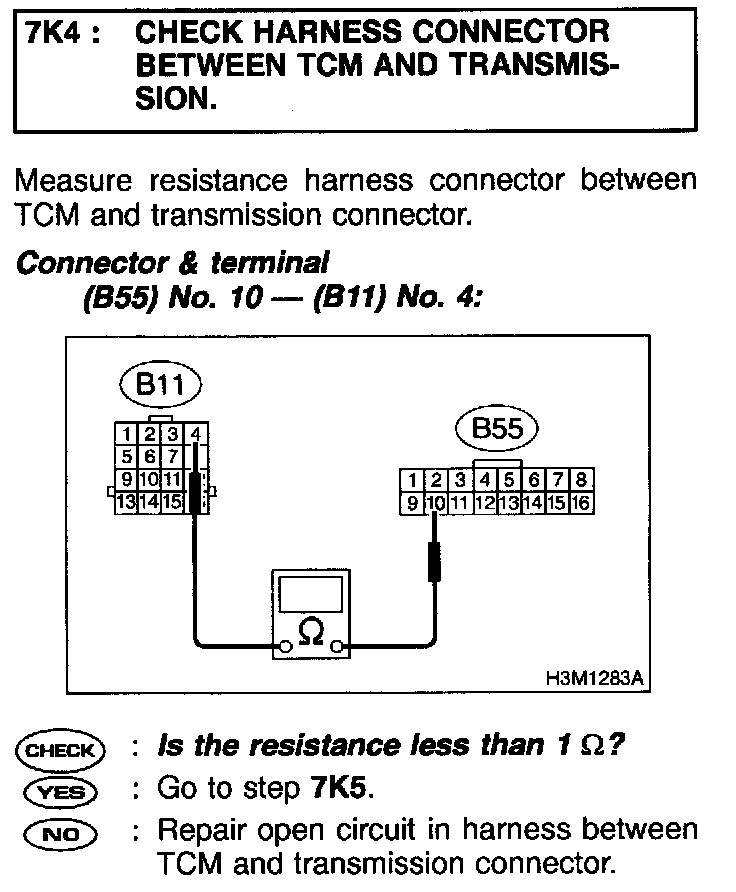

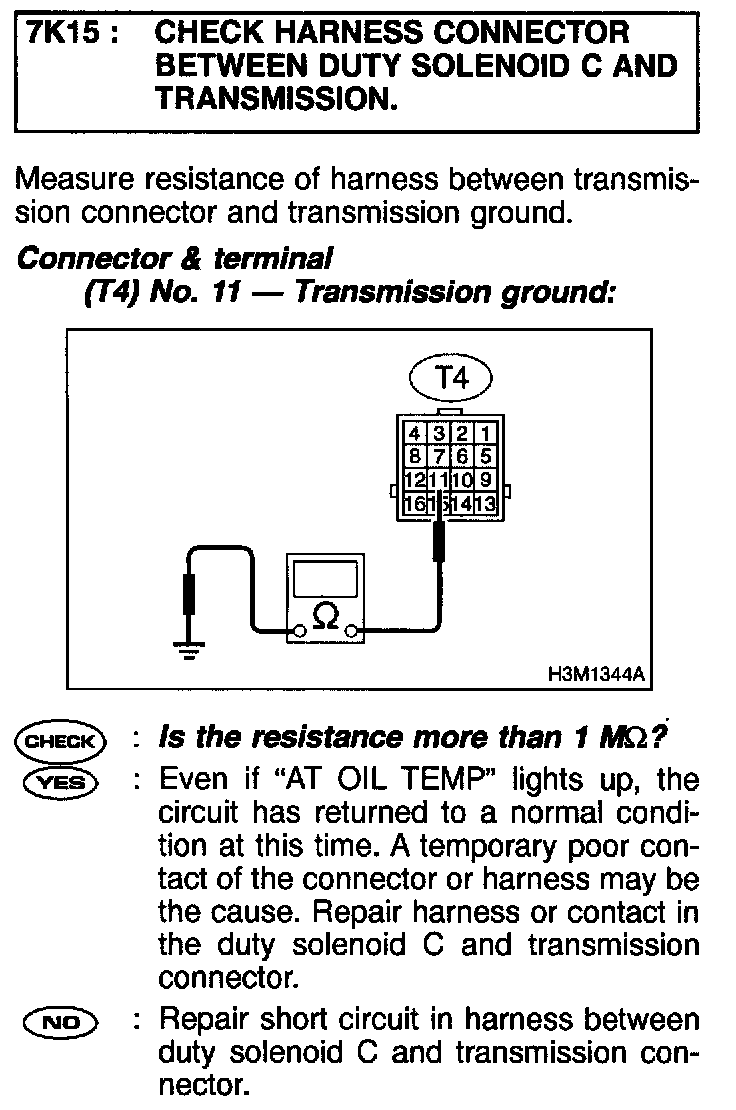

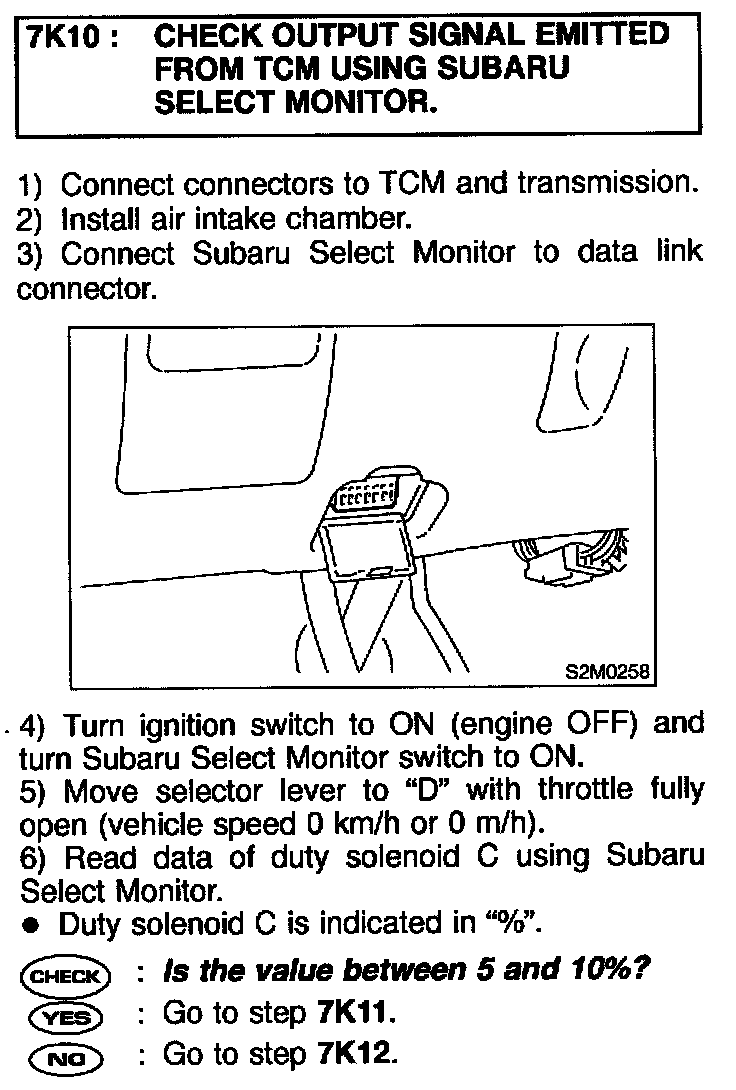

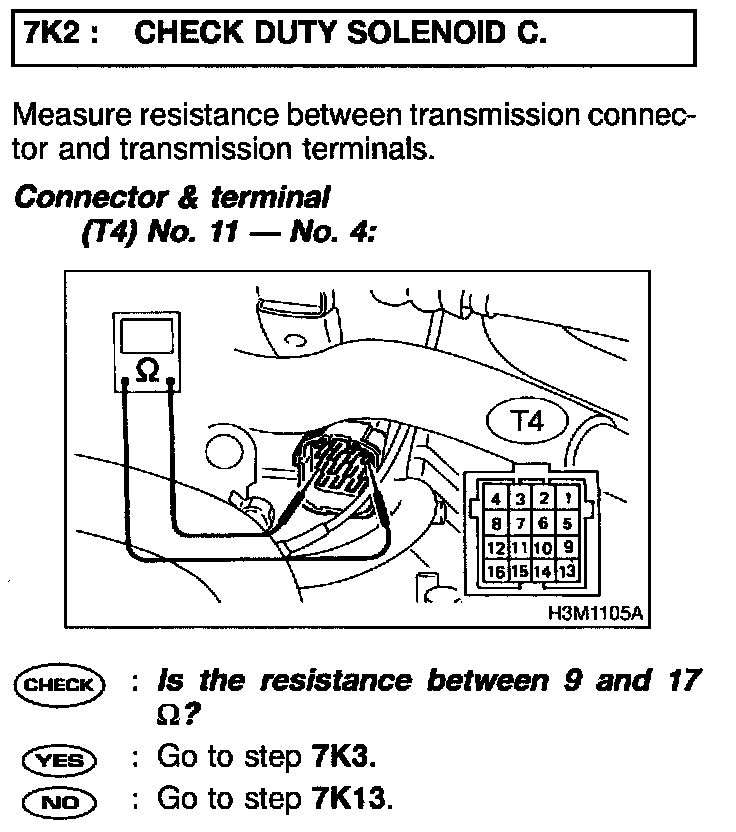

PROCEDURES
