Transmission Control Systems
TROUBLE CODE 22: MASS AIR FLOW SIGNALDIAGNOSIS:
- Input signal circuit of TCM from ECM is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.

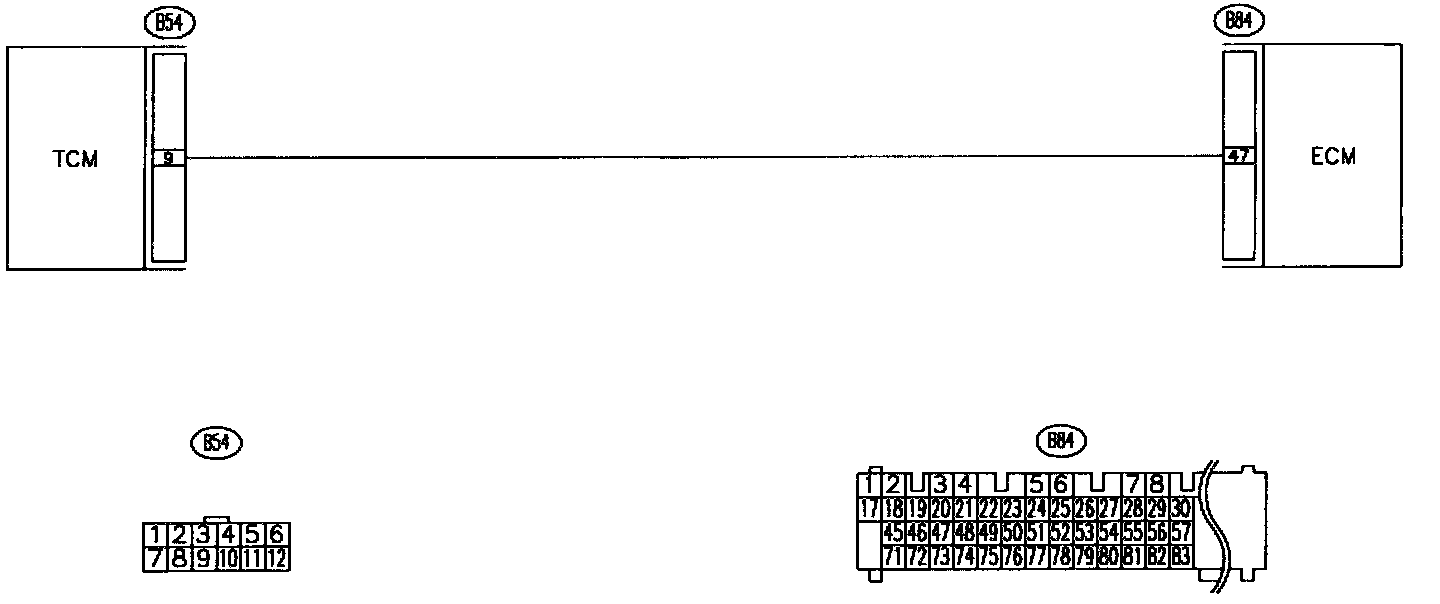

WIRING DIAGRAM

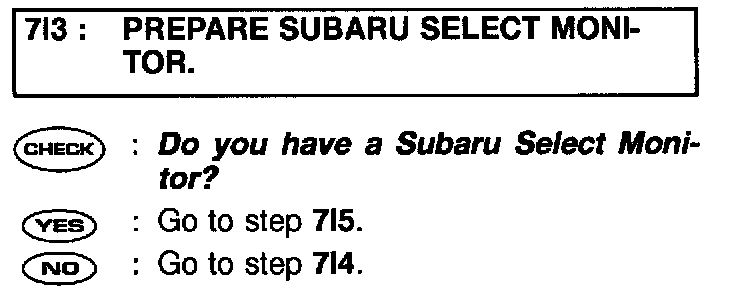

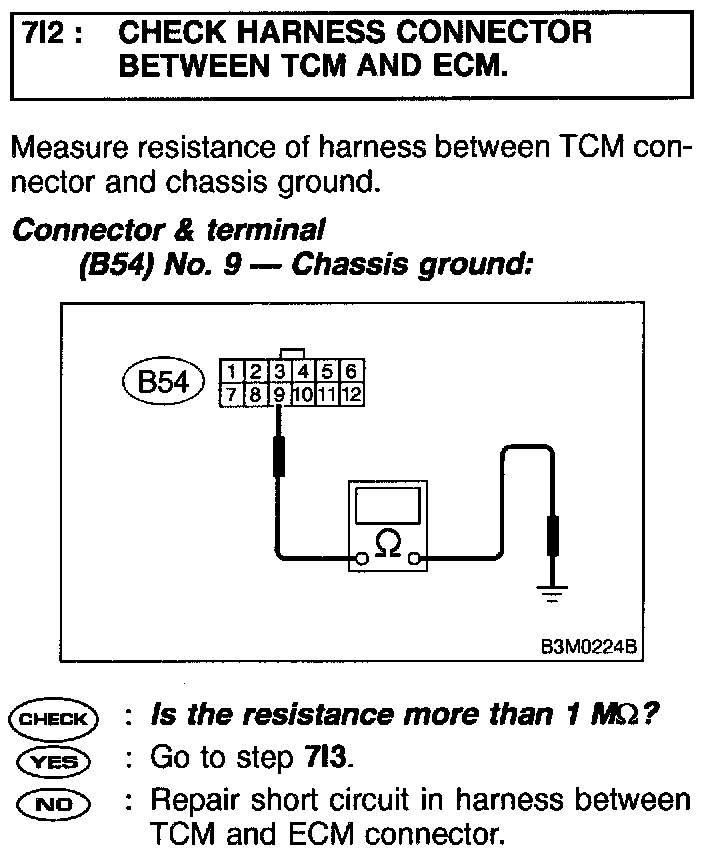

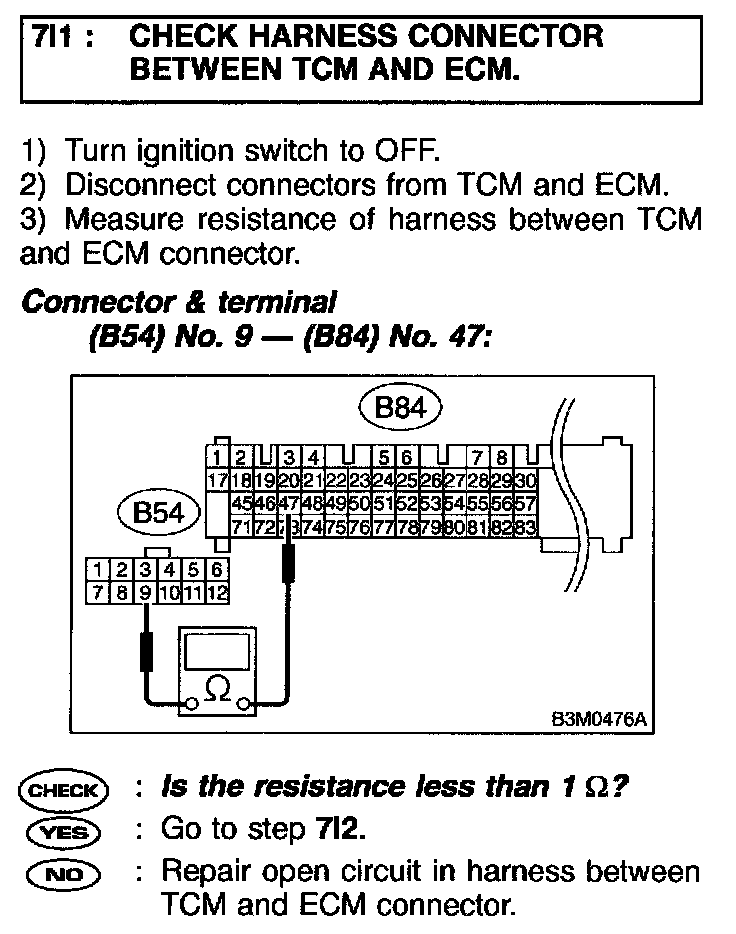

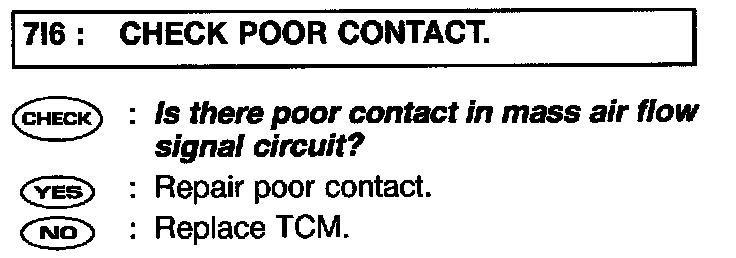

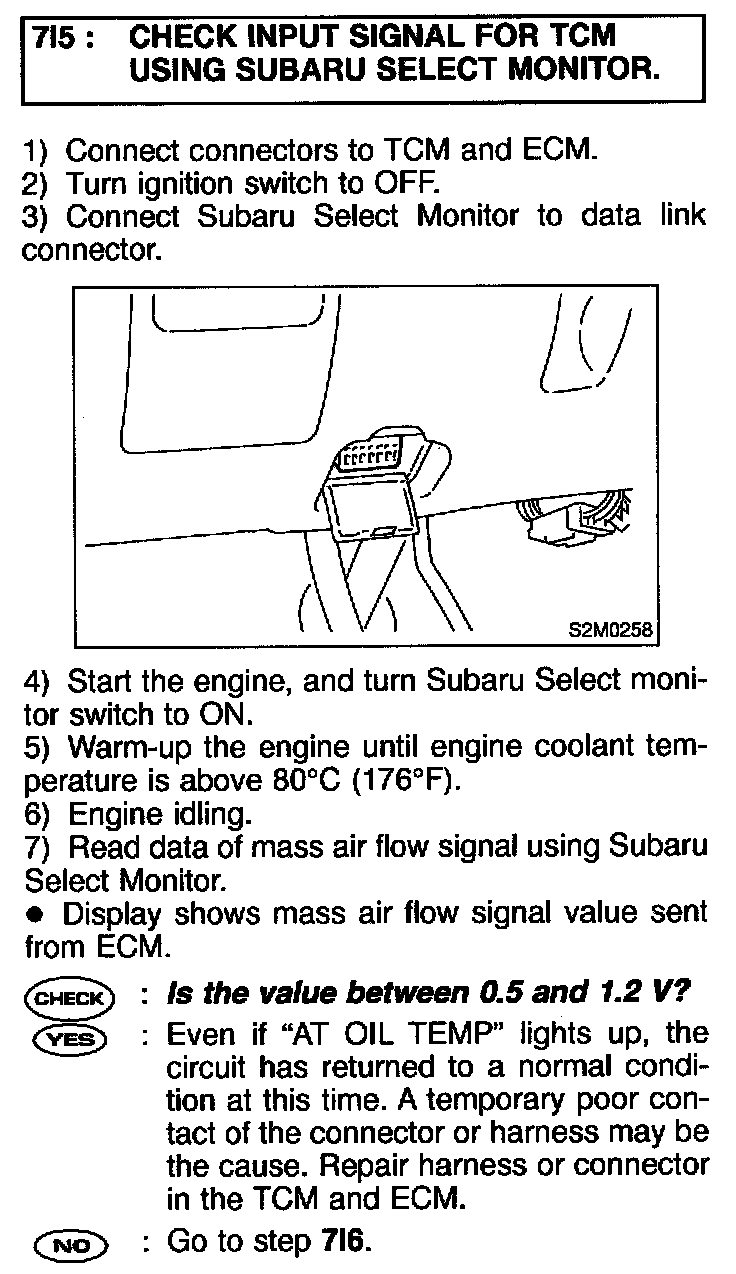

PROCEDURES
DIAGNOSIS:
- Input signal circuit of TCM from ECM is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.
WIRING DIAGRAM
PROCEDURES
