Transmission Control Systems
TROUBLE CODE 14: SHIFT SOLENOID 2DIAGNOSIS:
- Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM:
- Output signal circuit of shift solenoid 2 is open or shorted.

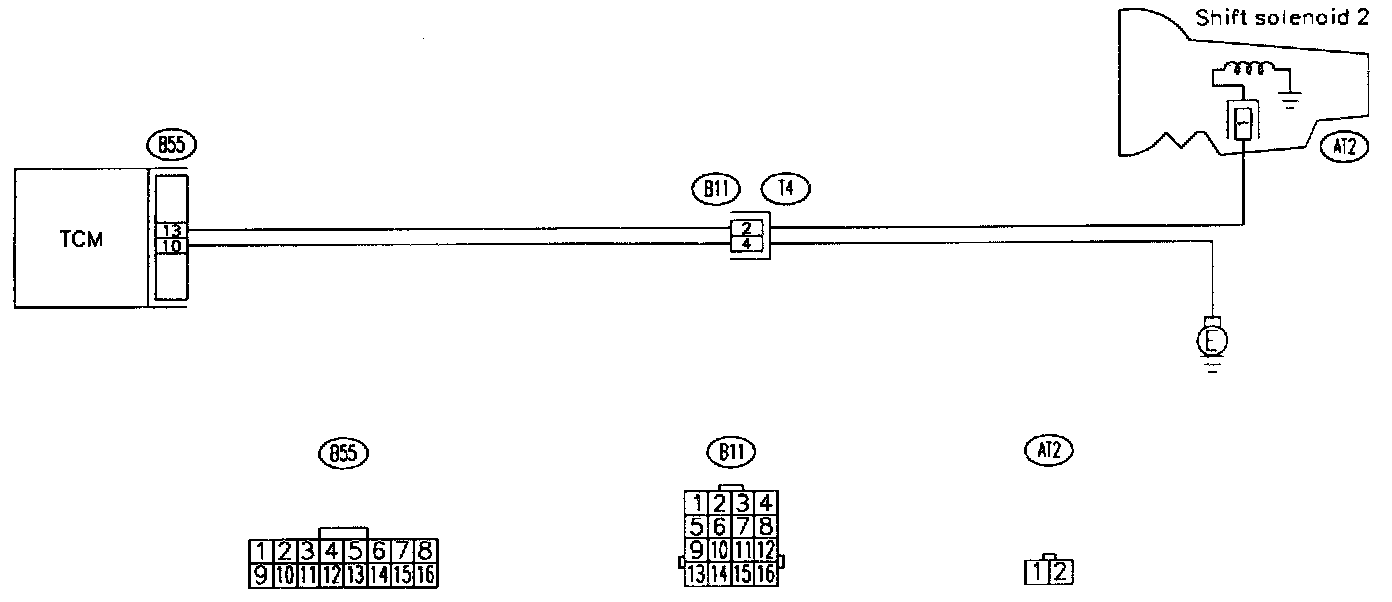

WIRING DIAGRAM

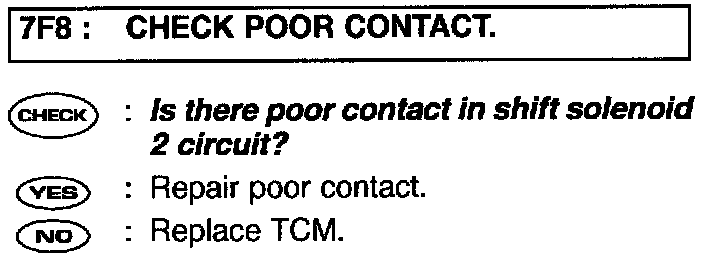

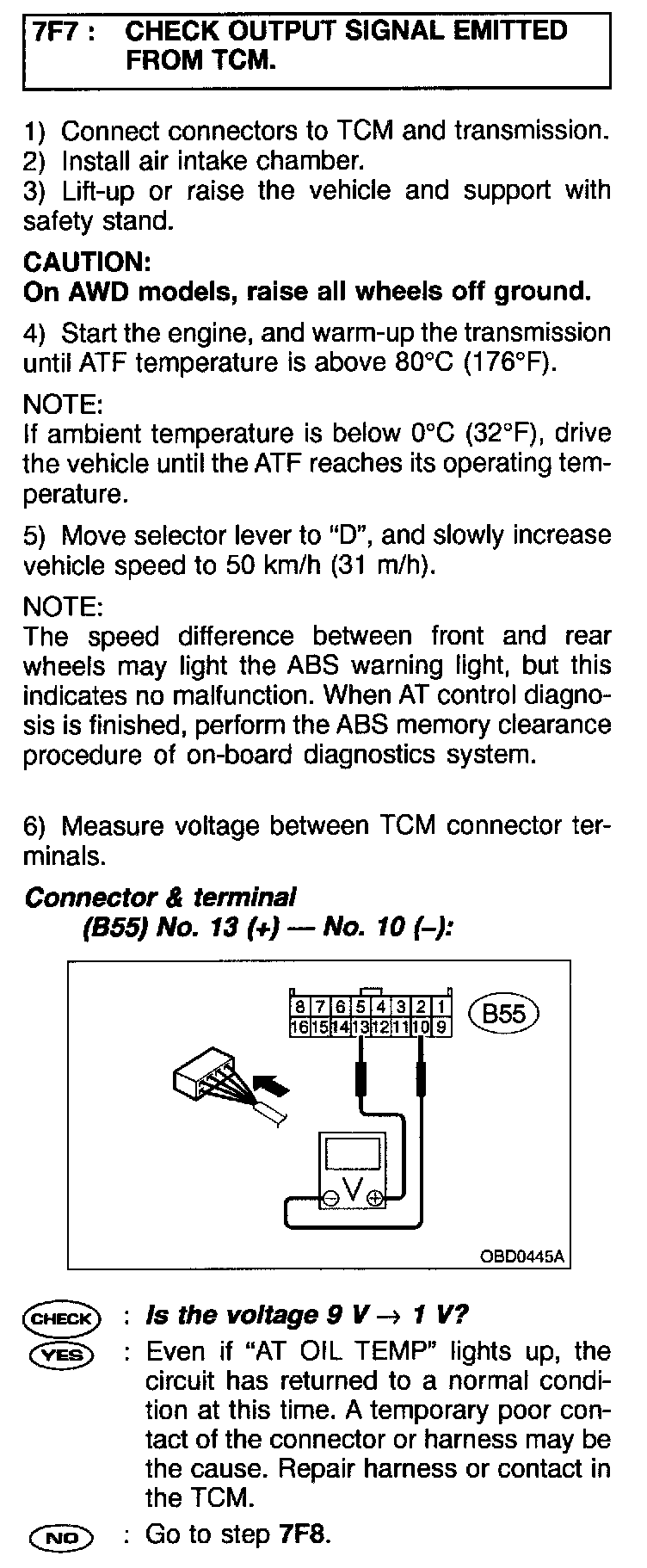

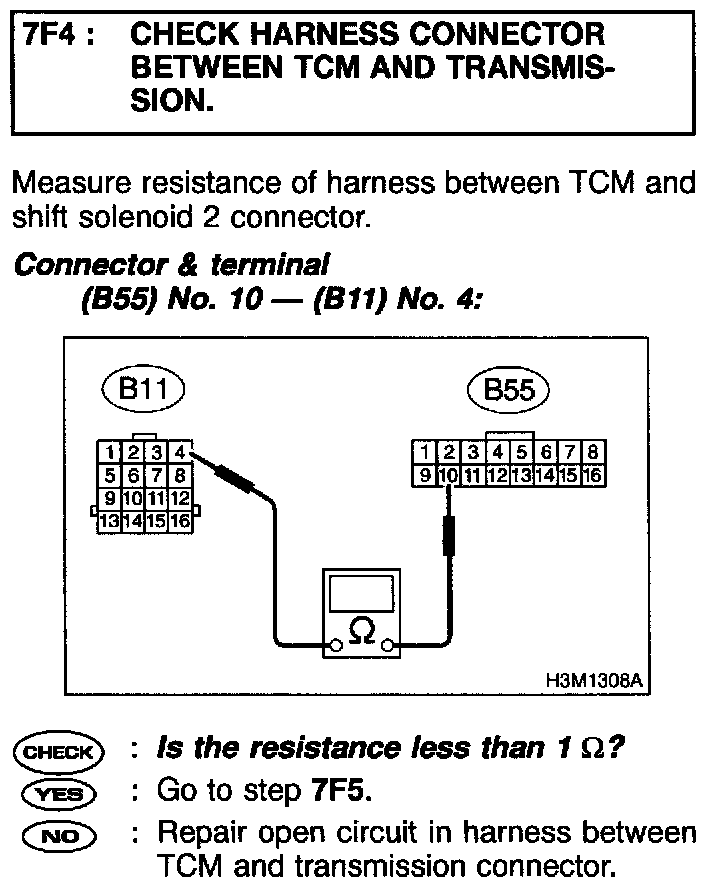

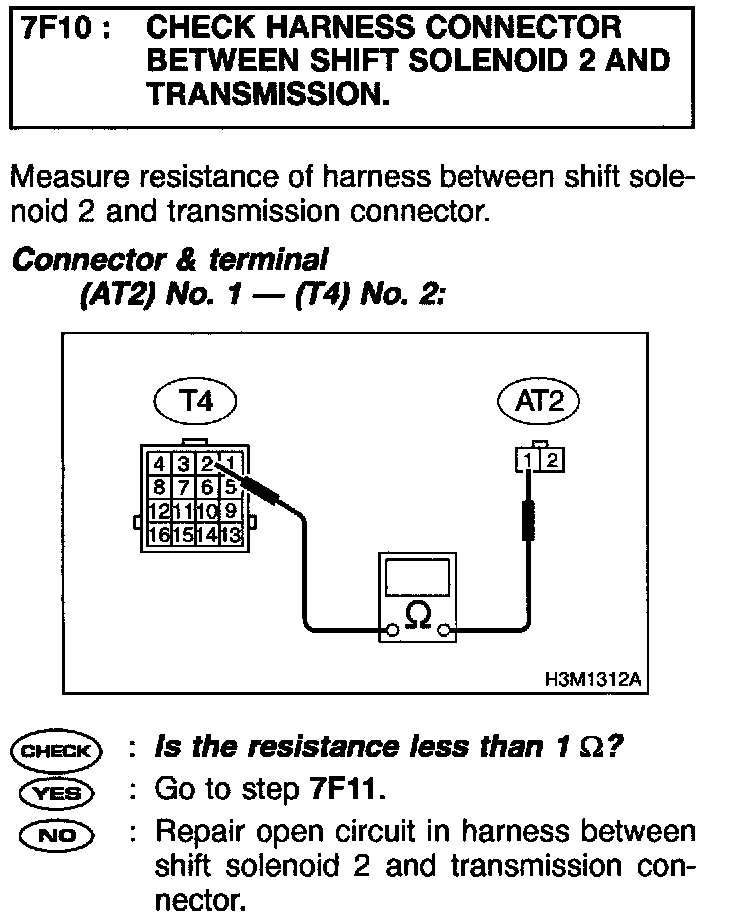

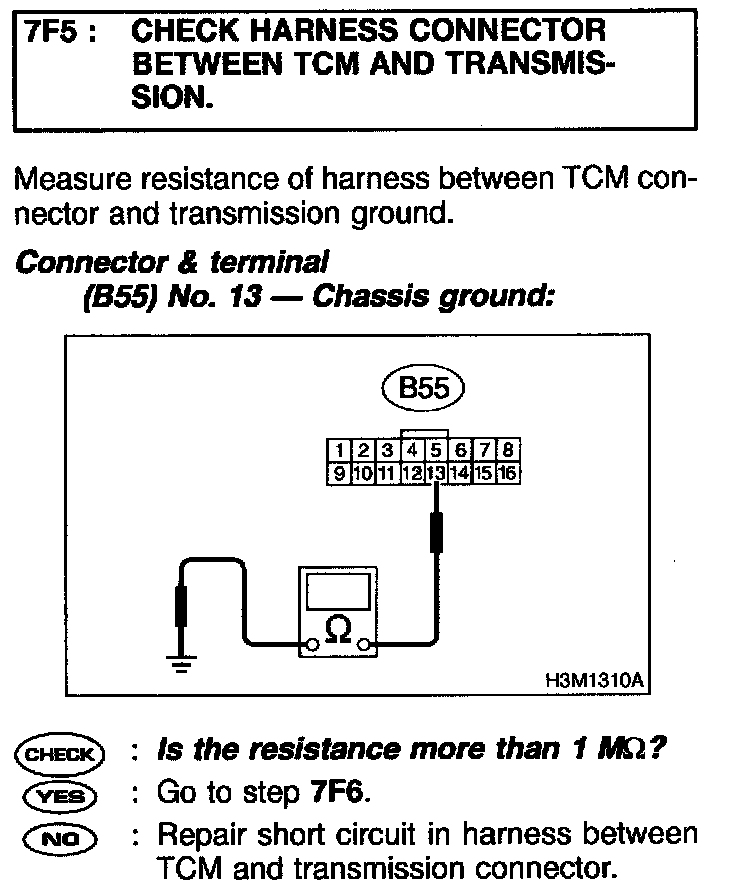

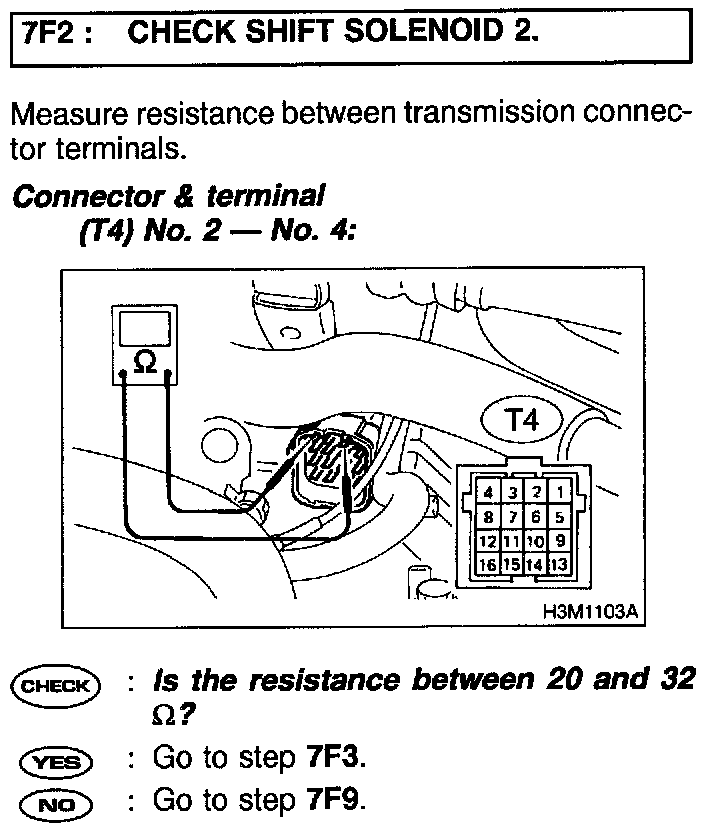

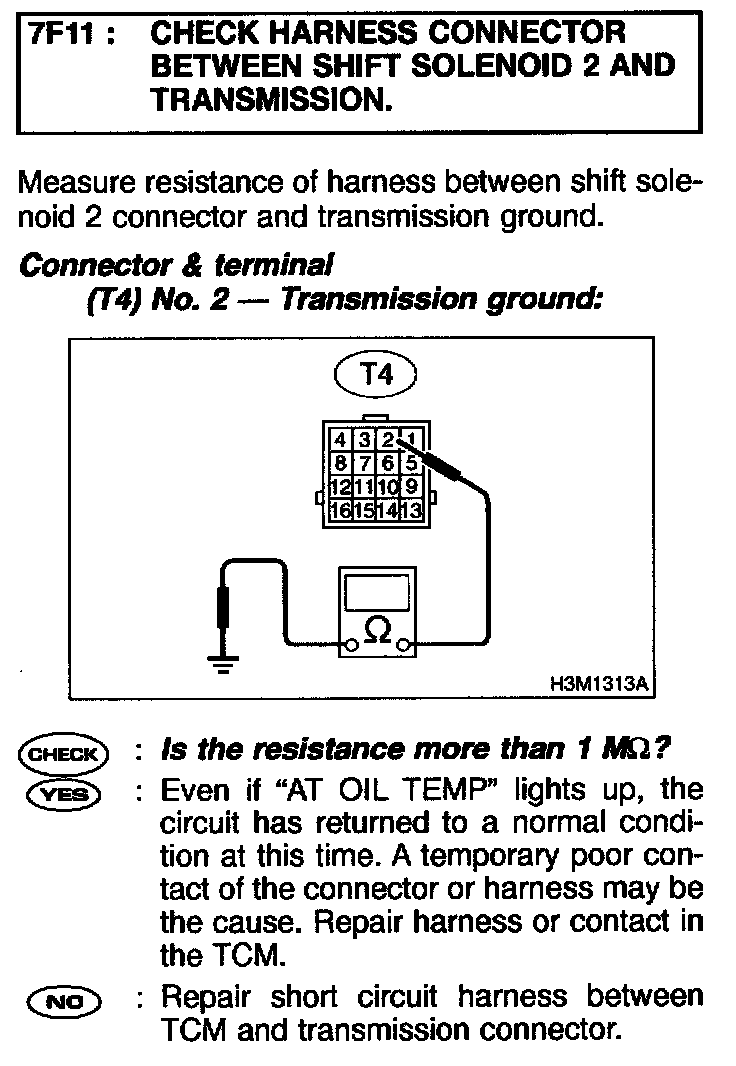

PROCEDURES
DIAGNOSIS:
- Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM:
- Output signal circuit of shift solenoid 2 is open or shorted.
WIRING DIAGRAM
PROCEDURES
