Transmission Control Systems
TROUBLE CODE 13: SHIFT SOLENOID 3DIAGNOSIS:
- Output signal circuit of shift solenoid 3 is open or shorted.
TROUBLE SYMPTOM:
- Ineffective engine brake with shift lever in "3".

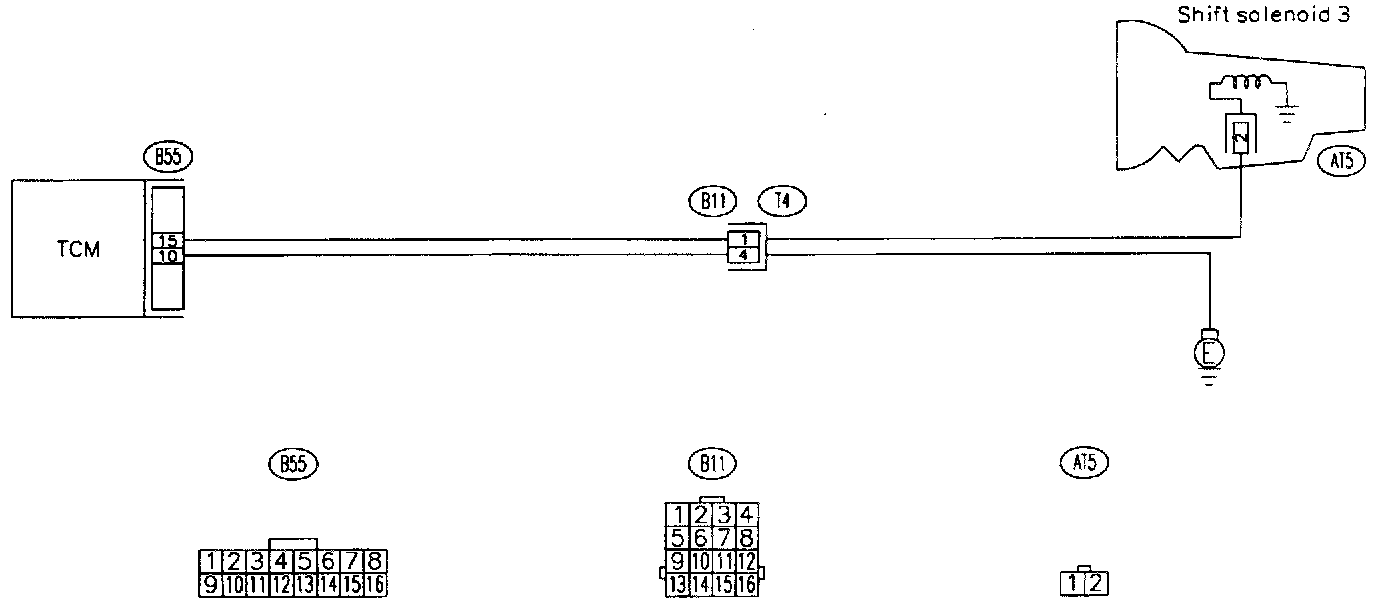

WIRING DIAGRAM

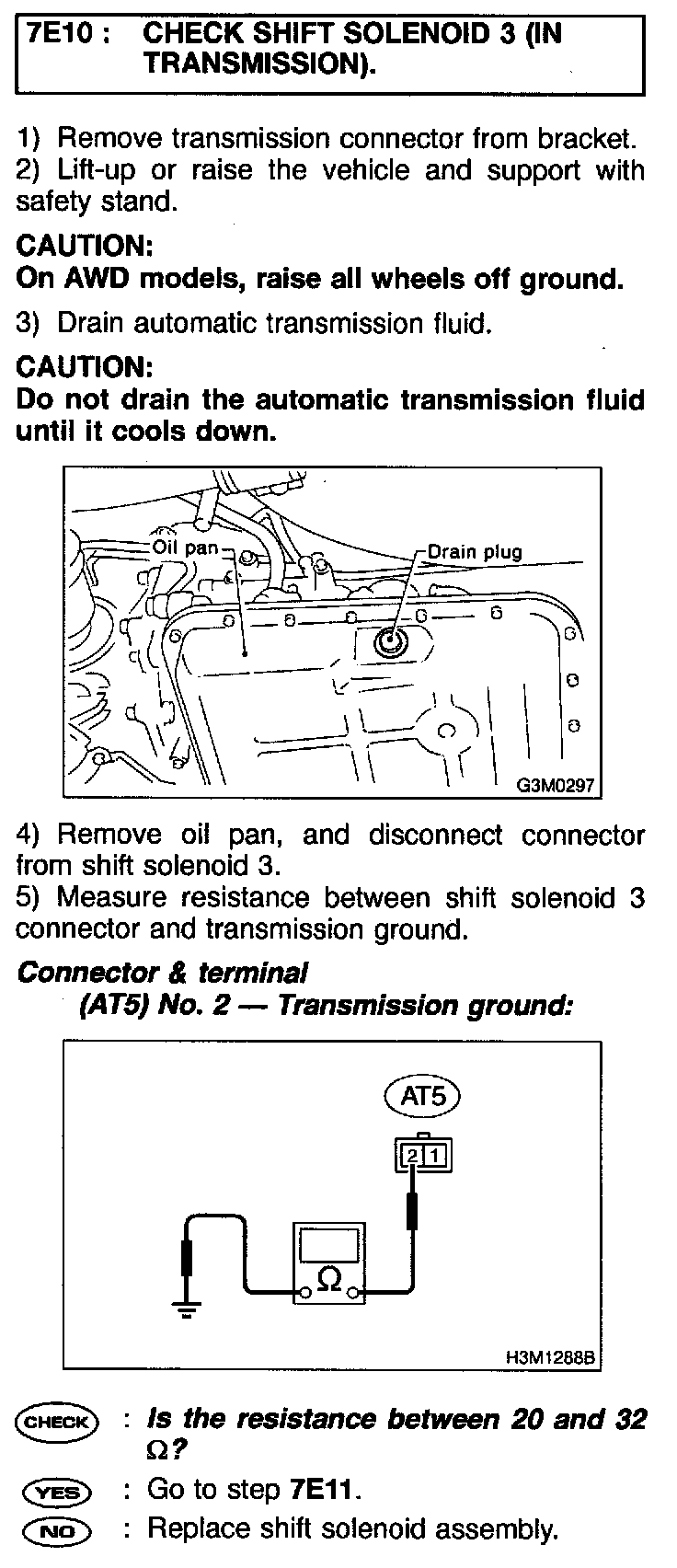

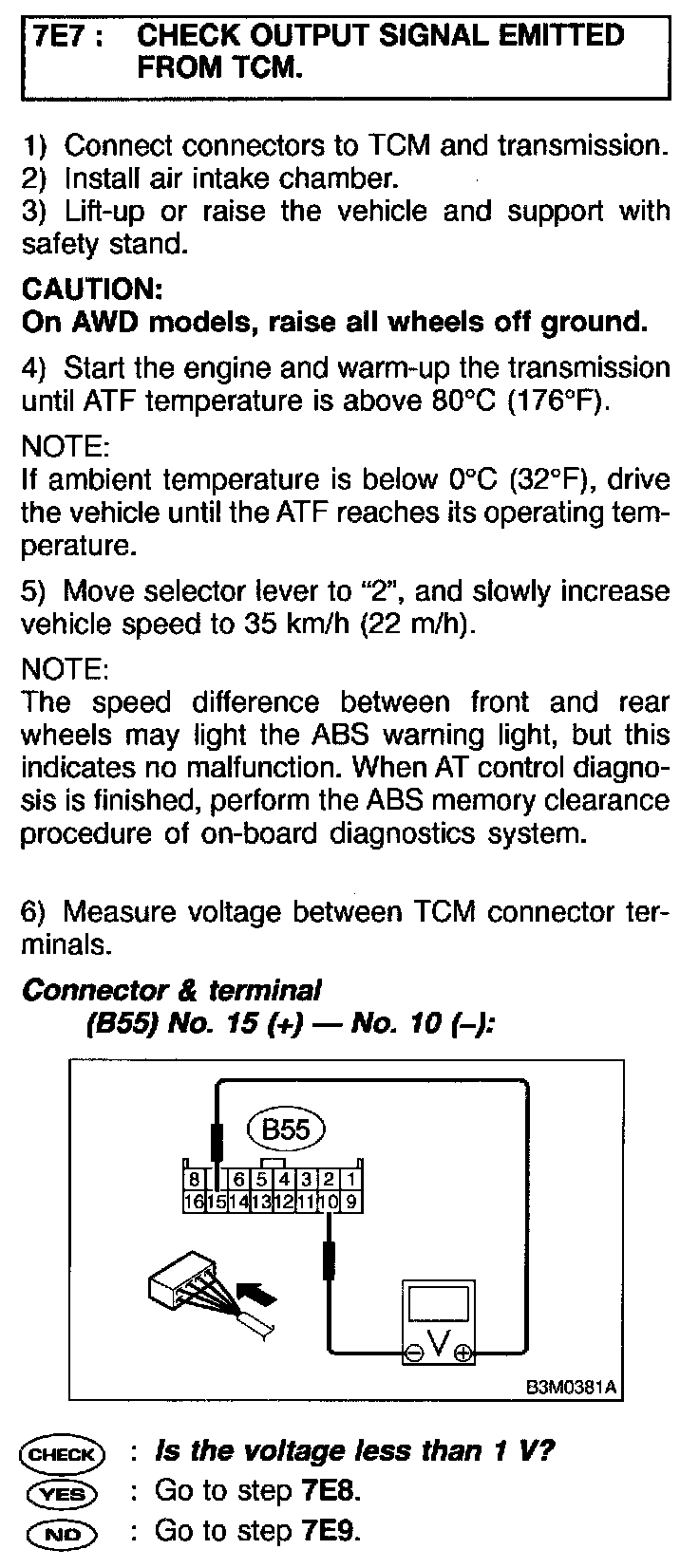

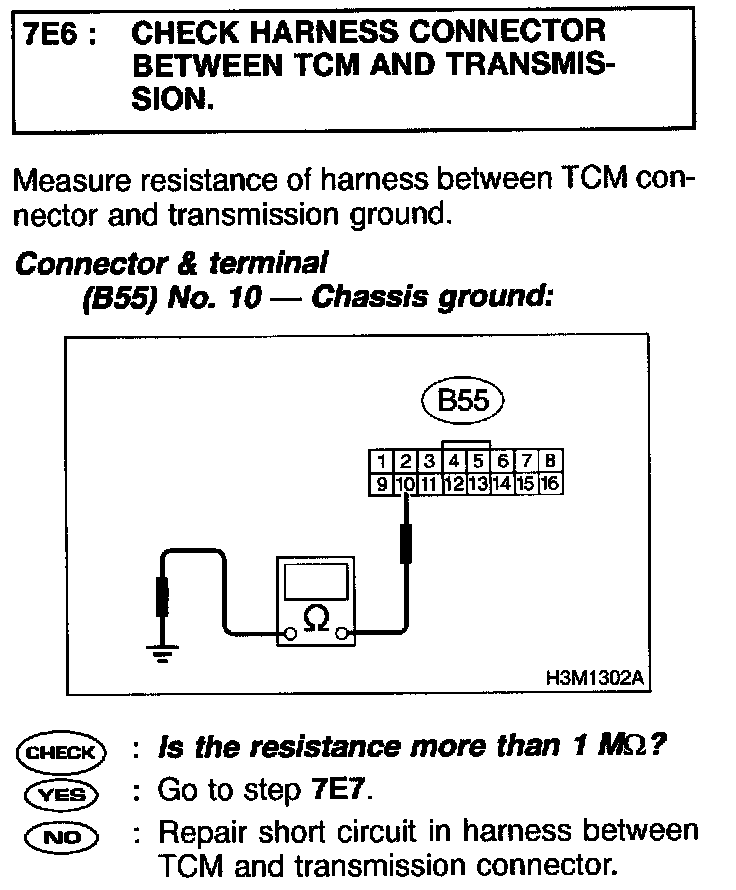

PROCEDURES
DIAGNOSIS:
- Output signal circuit of shift solenoid 3 is open or shorted.
TROUBLE SYMPTOM:
- Ineffective engine brake with shift lever in "3".
WIRING DIAGRAM
PROCEDURES
