Transmission Control Systems
TROUBLE CODE 11: DUTY SOLENOID ADIAGNOSIS:
- Output signal circuit of duty solenoid A or resistor is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.

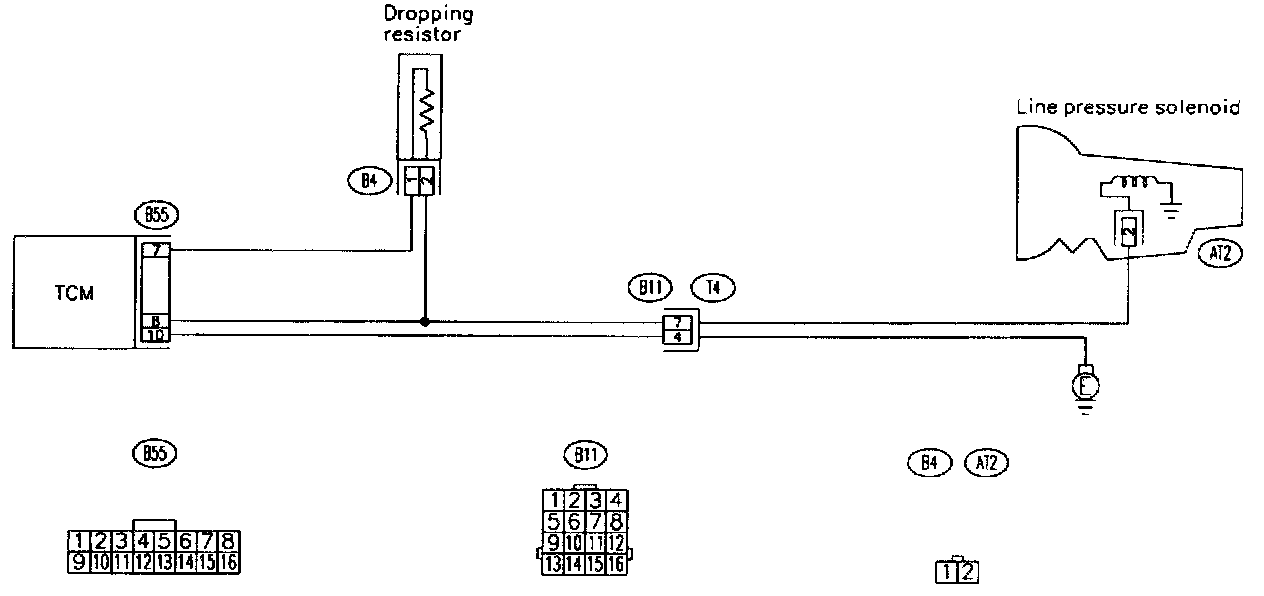

WIRING DIAGRAM

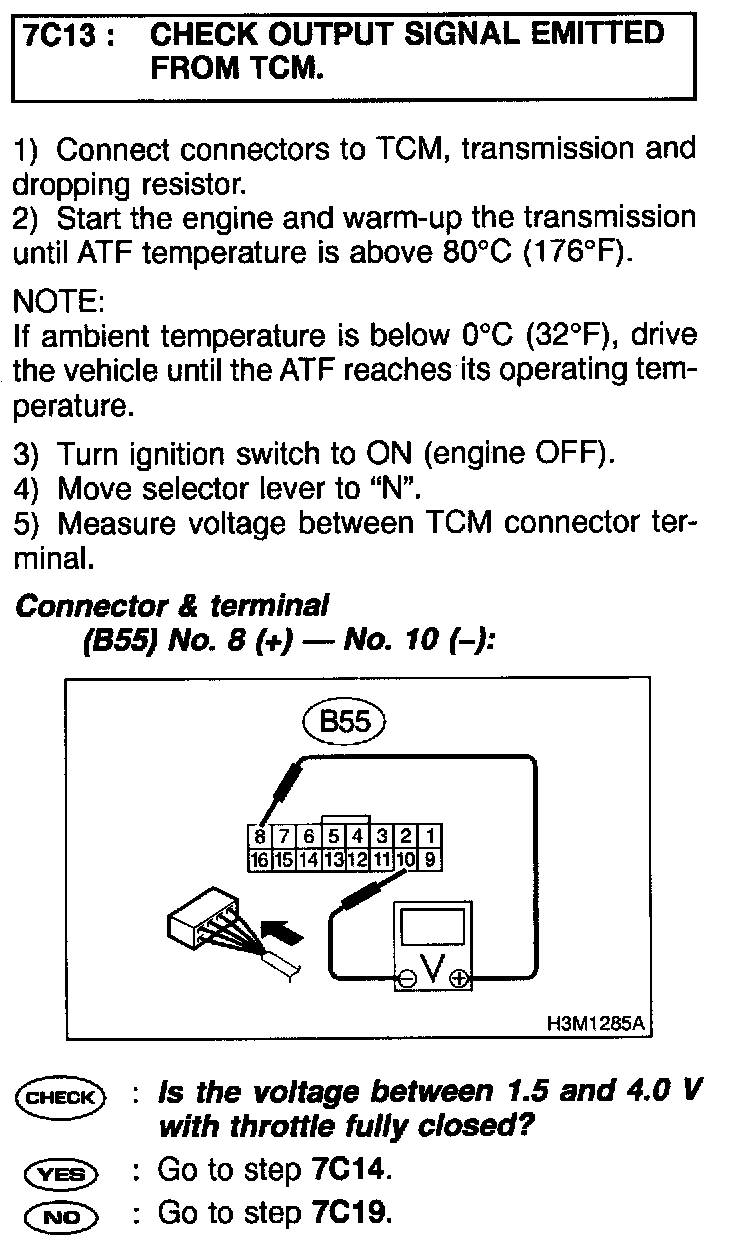

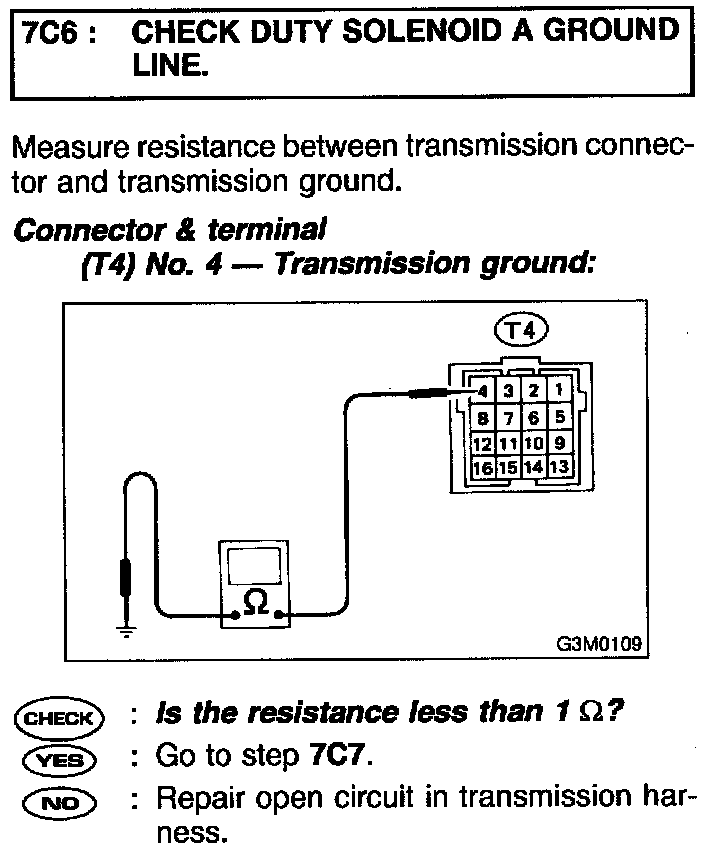

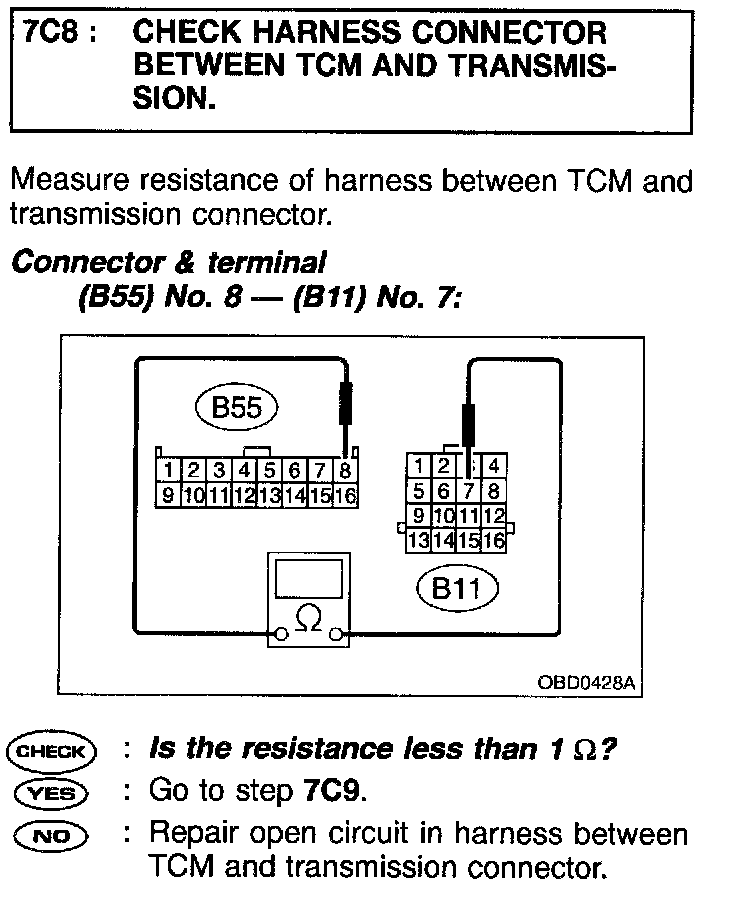

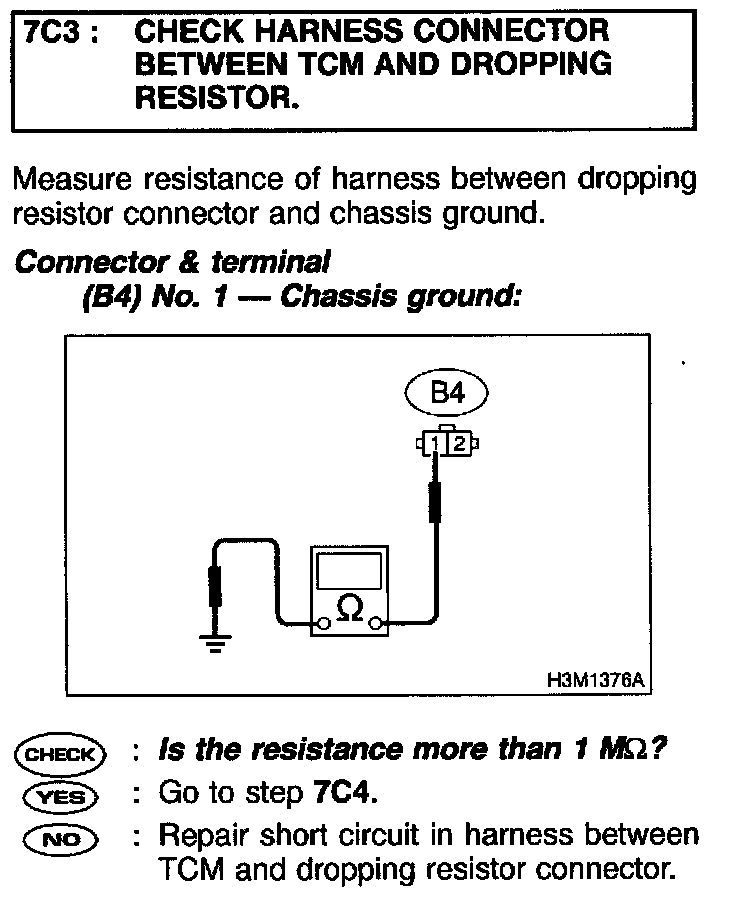

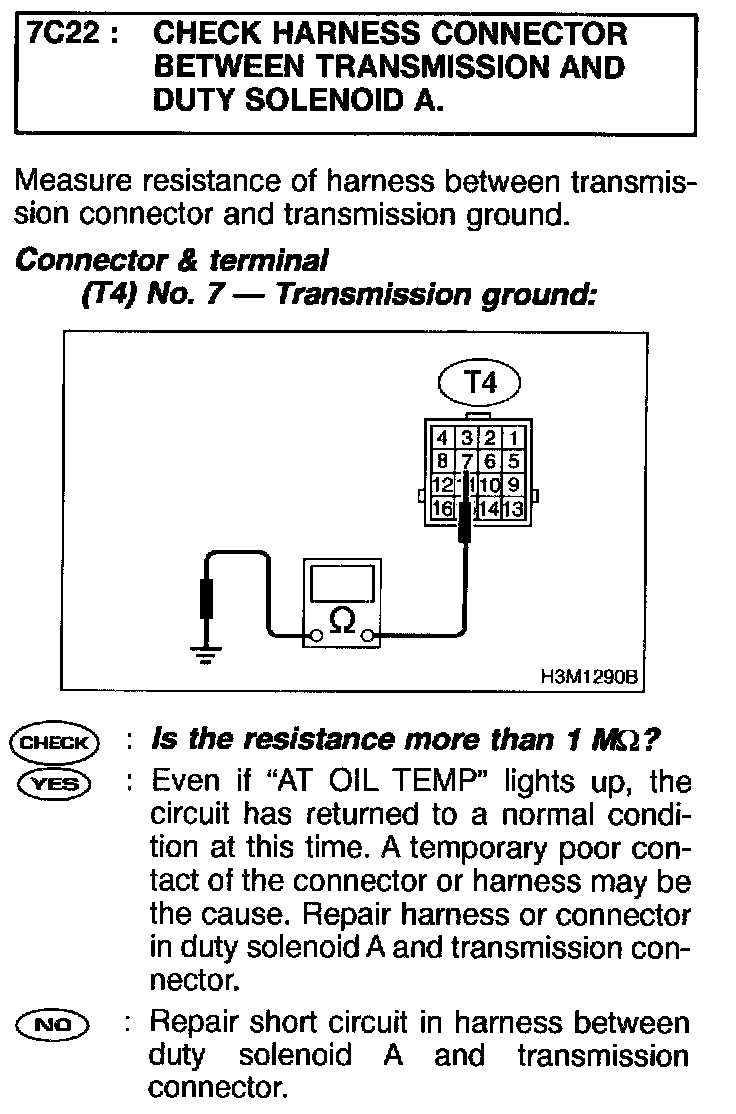

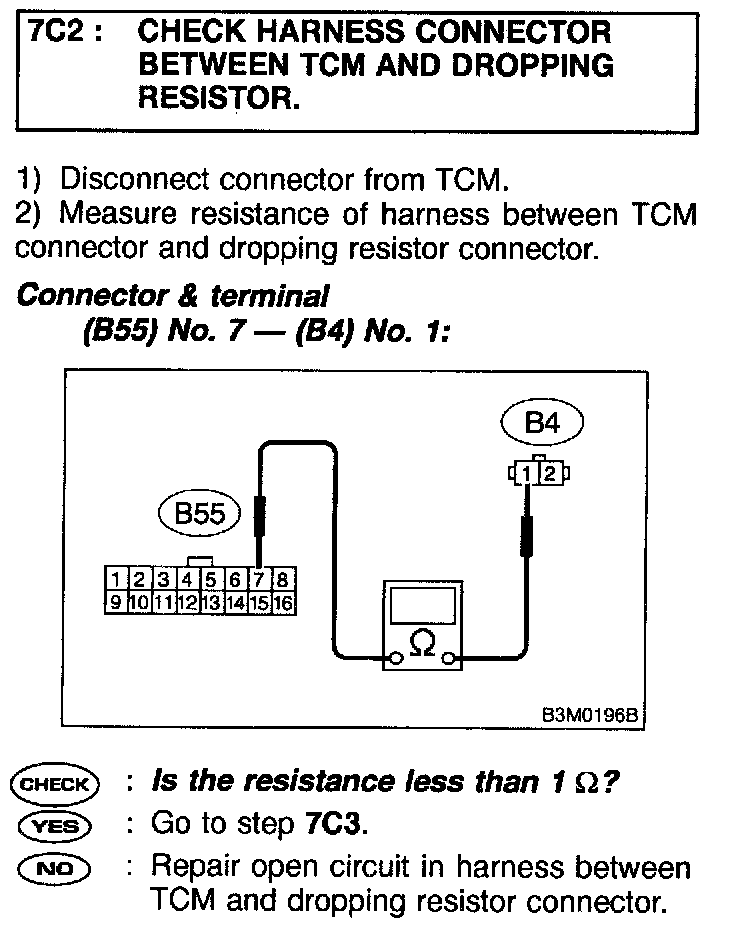

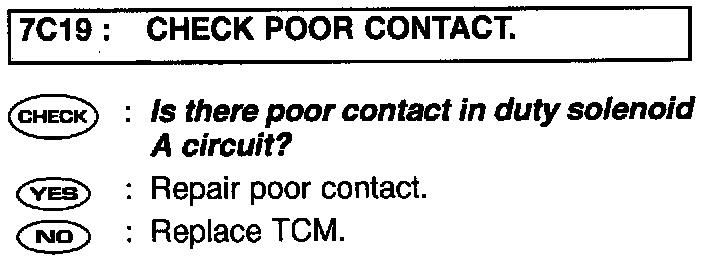

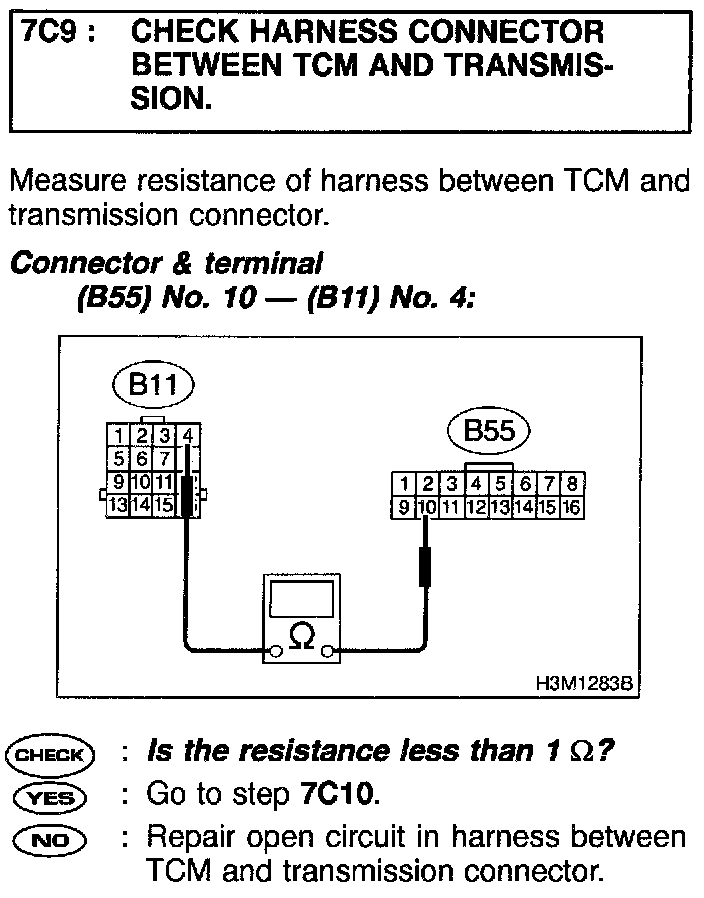

PROCEDURES
DIAGNOSIS:
- Output signal circuit of duty solenoid A or resistor is open or shorted.
TROUBLE SYMPTOM:
- Excessive shift shock.
WIRING DIAGRAM

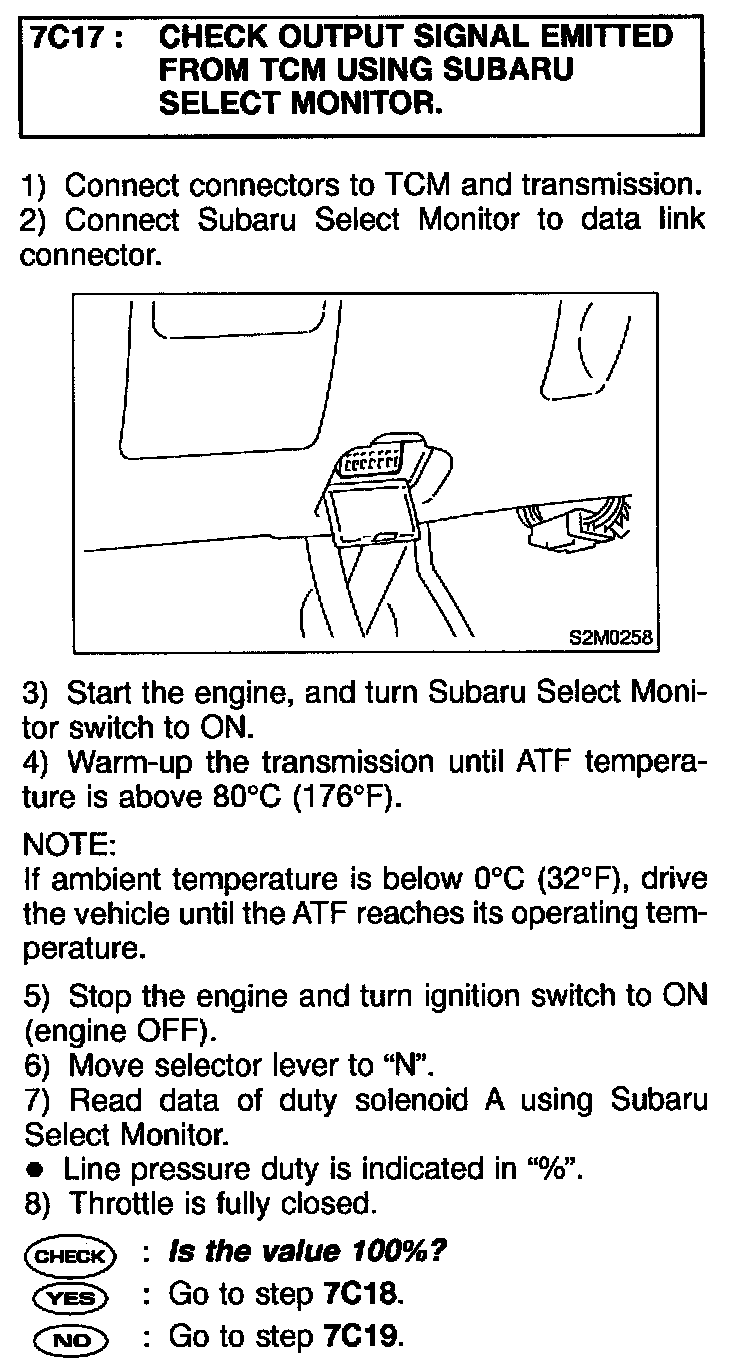

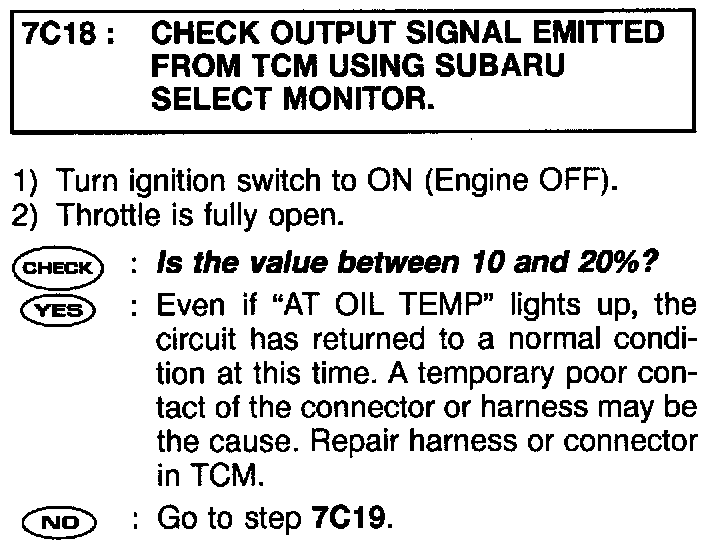

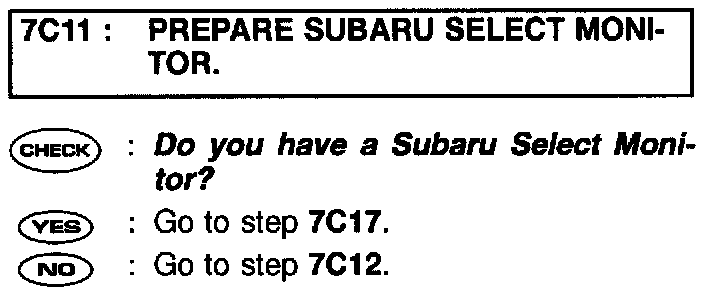

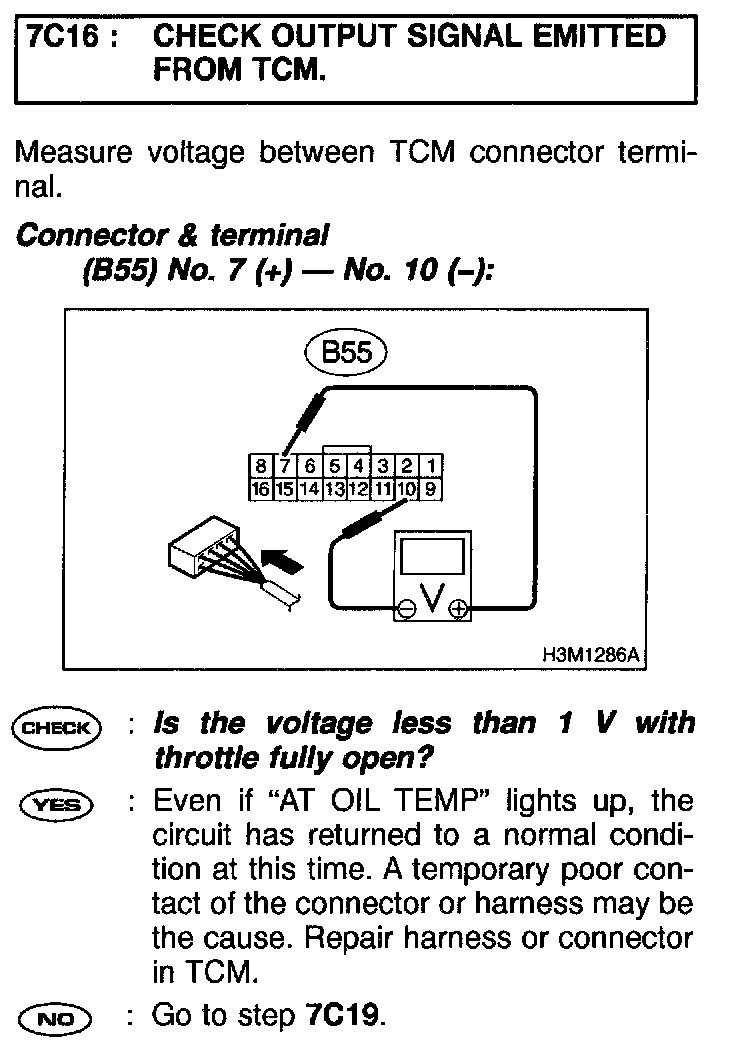

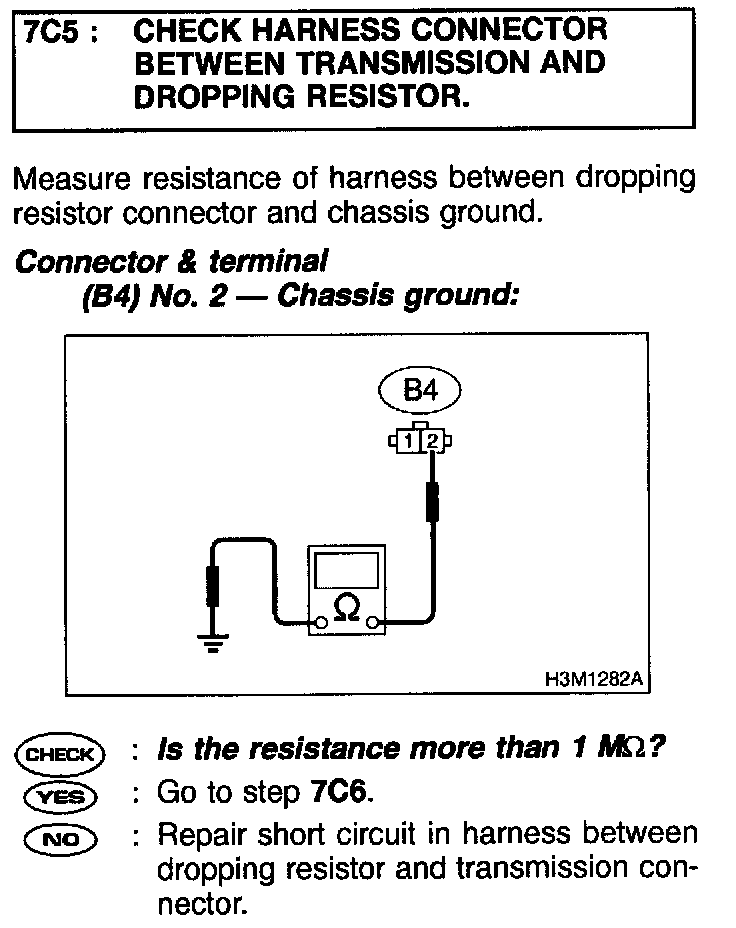

PROCEDURES
