Removal

REMOVAL





1) Depress brake pedal and secure it in that position using a wooden block, etc.
2) Remove rear seat cushion and backrest. (Sedan)





3) Remove strut cap of rear quarter trim. (Wagon)
4) Loosen rear wheel nuts.
5) Jack-up vehicle, support ii with safety stands (rigid racks) and remove rear wheels.
6) Remove brake hose clip.





7) Models equipped with rear disc brakes:

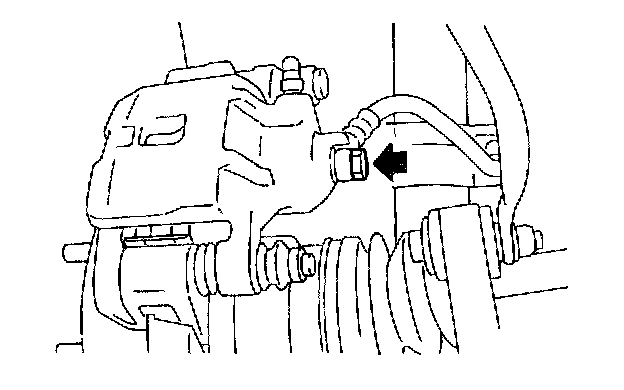

Remove union bolt from brake caliper.
8) Models equipped with rear drum brakes:
Disconnect brake hose from brake pipe from strut, and disconnect brake pipe from dram brake.

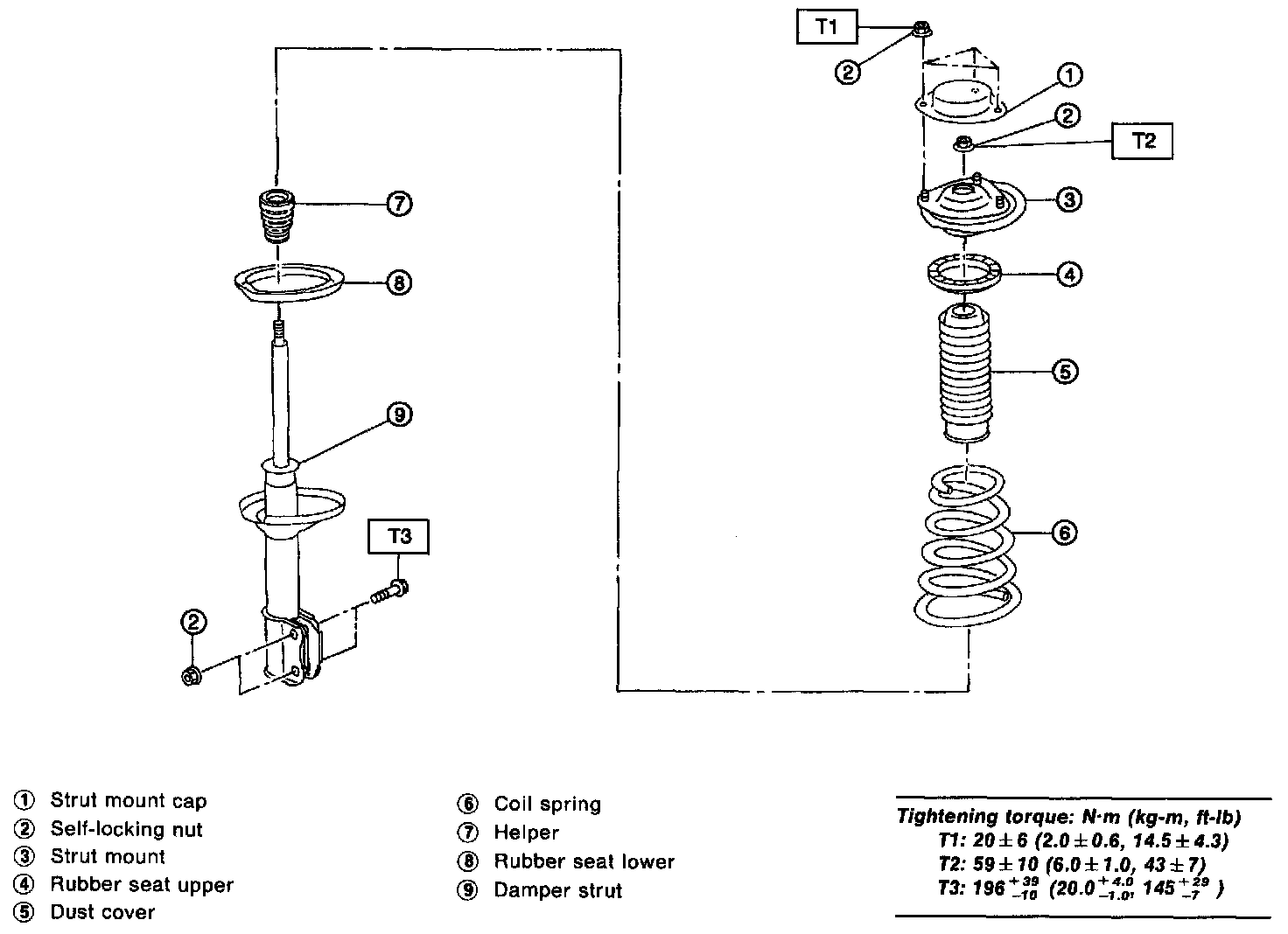

9) Remove bolts which secure rear strut to housing.

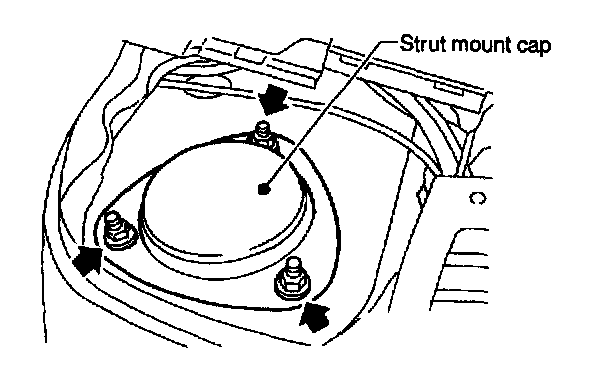

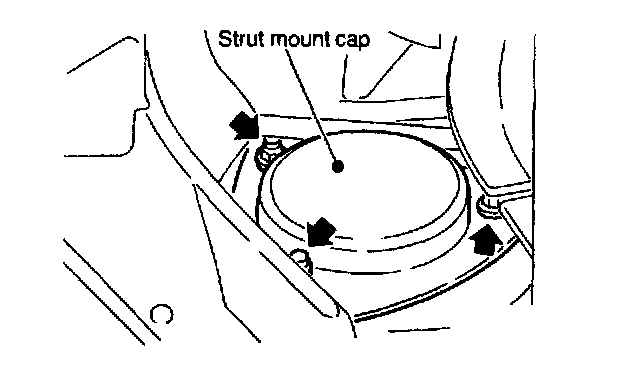

10) Remove nuts securing strut mount to body.
11) Remove strut mount cap.
