Inspection

Brake And Clutch Pedals

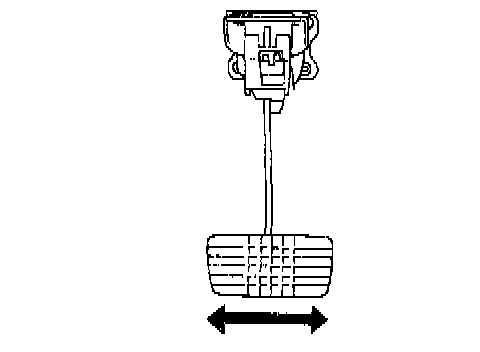

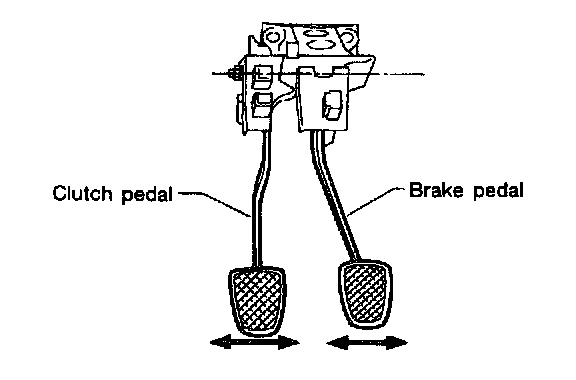

Move brake and clutch pedal pads in the lateral direction with a force of approximately 10 N (1 kg, 2 lb) to ensure pedal deflection is in specified range.

Deflection of brake and clutch pedal:
Service limit
5.0 mm (0.197 in) or less





CAUTION: If excessive deflection is noted, replace bushings with new ones.





Accelerator Pedal

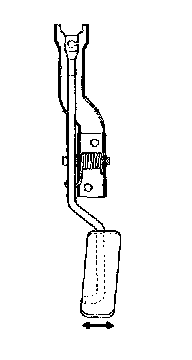

Lightly move pedal pad in lateral the direction to ensure pedal deflection is in specified range.

Deflection of accelerator pedal:
Service limit
5.0 mm (0.197 in) or less

CAUTION: If excessive deflection is noted, replace bushing and clip with new ones.





Stop Light Switch
If stop light switch does not operate properly (or if it does not stop at the specified position), replace with a new one.

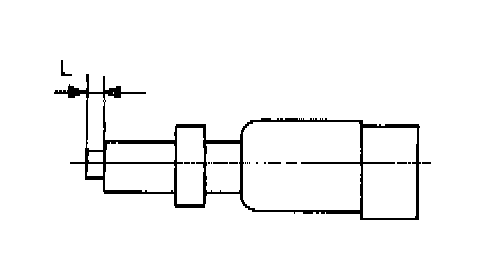

Specified position: L
2.8 +1.5/0 mm (0.110 +0.059/0 in)
