DESCRIPTION
The Hydraulic Control Unit (H/U) is a fluid pressure controller comprising a motor, solenoid valve, housing, relay, etc. It constitutes two diagonally independent brake fluid circuits for a cross piping vehicle.
^ The pump motor rotates an eccentric cam to let the plunger pump generate a hydraulic pressure.
^ The housing accommodates the pump motor, solenoid valve, reservoir, etc., and also constitutes a brake fluid passage.
^ The plunger pump is a hydraulic pump which drains off the brake fluid which, when the pressure is reduced, is discharged to the reservoir, and sends it toward the master cylinder.
^ The solenoid valve is a 2-position type solenoid valve which switches the brake fluid passages between the wheel and master cylinder and reservoir sides in response to an instruction from the ABS Control Module (ABSCM).
For each wheel cylinder, a pair of normally-closed and -opened solenoid valves are provided.
^ The inlet solenoid valve is duty-controlled to reduce brake fluid pulsation for lower ABS operation noise.
^ The reservoir is a fluid chamber which temporarily stores the brake fluid to be discharged from the wheel cylinder when the pressure is reduced.
^ The damper chamber suppresses the pulsation of the brake fluid which, when the pressure is reduced, is discharged from the plunger pump, thereby minimizing the kickbacks to the brake pedal.
^ The valve relay controls the solenoid valve and motor relay energizing power supply in response to an instruction from the ABSCM. In normal (ignition ON) condition, the relay is actuated to supply power to the solenoid valve and motor relay. When an error occurs in the system, the valve relay is forced to OFF to keep the fluid pressure circuit in the normal mode (normal brake mode) and also constitute the ABS warning light operating circuit.
^ The motor relay supplies power to the pump motor to operate the plunger pump in response to an instruction from the ABSCM in the ABS control mode.

FOUR OPERATING MODES
The H/U has four operating modes; normal mode (control OFF: normal brake mode), "increase", "hold" and "decrease" modes (control ON in all the three modes).

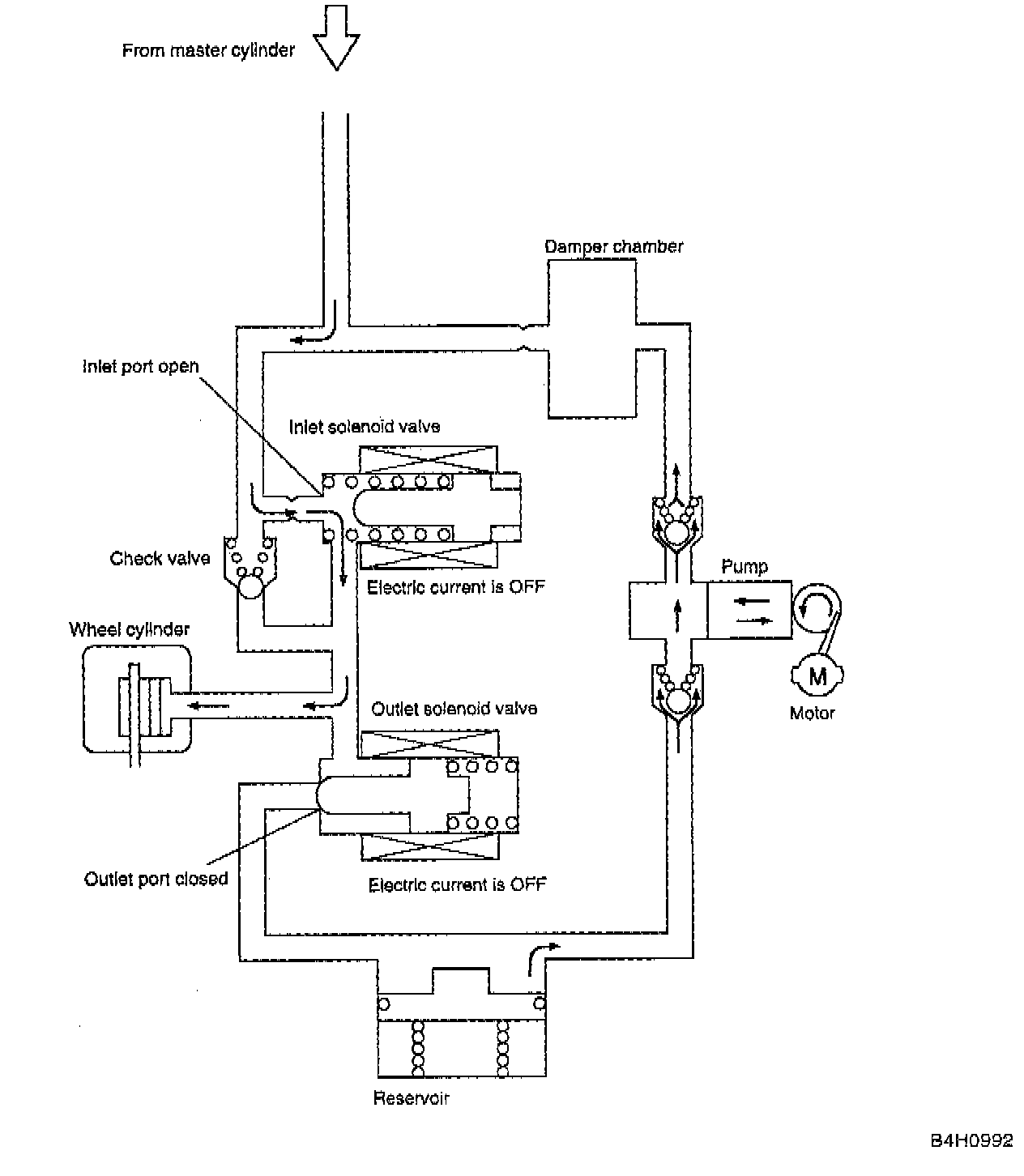

1. During normal braking (explained with one wheel's control as an example).
Since no current is supplied to the inlet and outlet solenoid valves, no solenoid valve attracting force is generated. So the valves remain stationary.
Accordingly, the inlet port of the inlet solenoid valve is in an opened state, whereas the outlet port of the outlet solenoid valve is in a closed state. So the fluid pressure of the master cylinder is transmitted to the wheel cylinder to produce a brake force in the wheel cylinder.

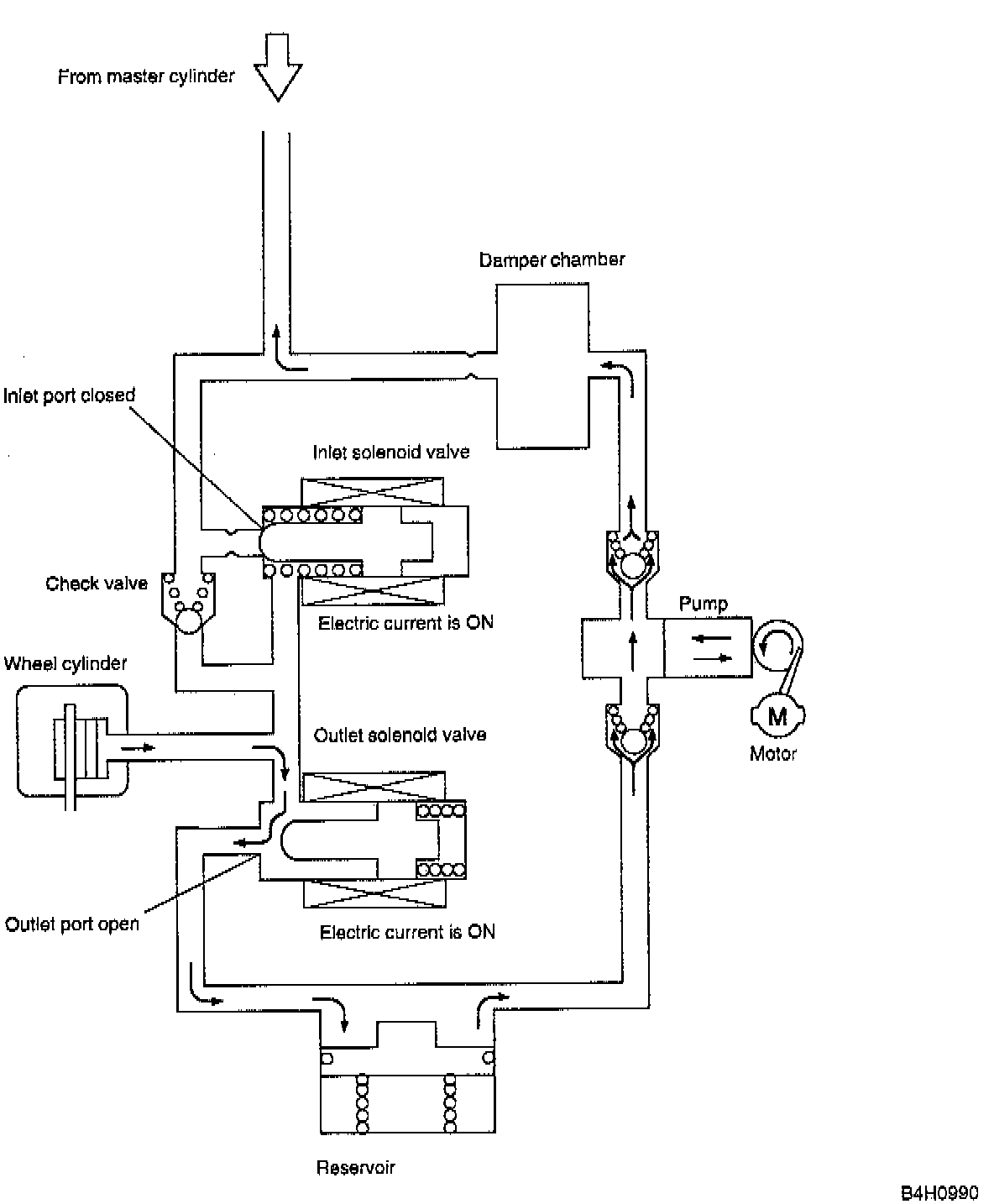

2. Pressure "decrease" action with ABS in operation (explained with one wheel's control as an example).
Current is supplied to the inlet and outlet solenoid valves, and the generated solenoid valve attracting forces close the inlet port and open the outlet port.
Accordingly, the wheel cylinder is isolated from the master cylinder and becomes clear to the reservoir, allowing the brake fluid to flow to the reservoir. So the fluid pressure of the wheel cylinder is decreased. The brake fluid collected in the reservoir is fed to the master cylinder by the pump.

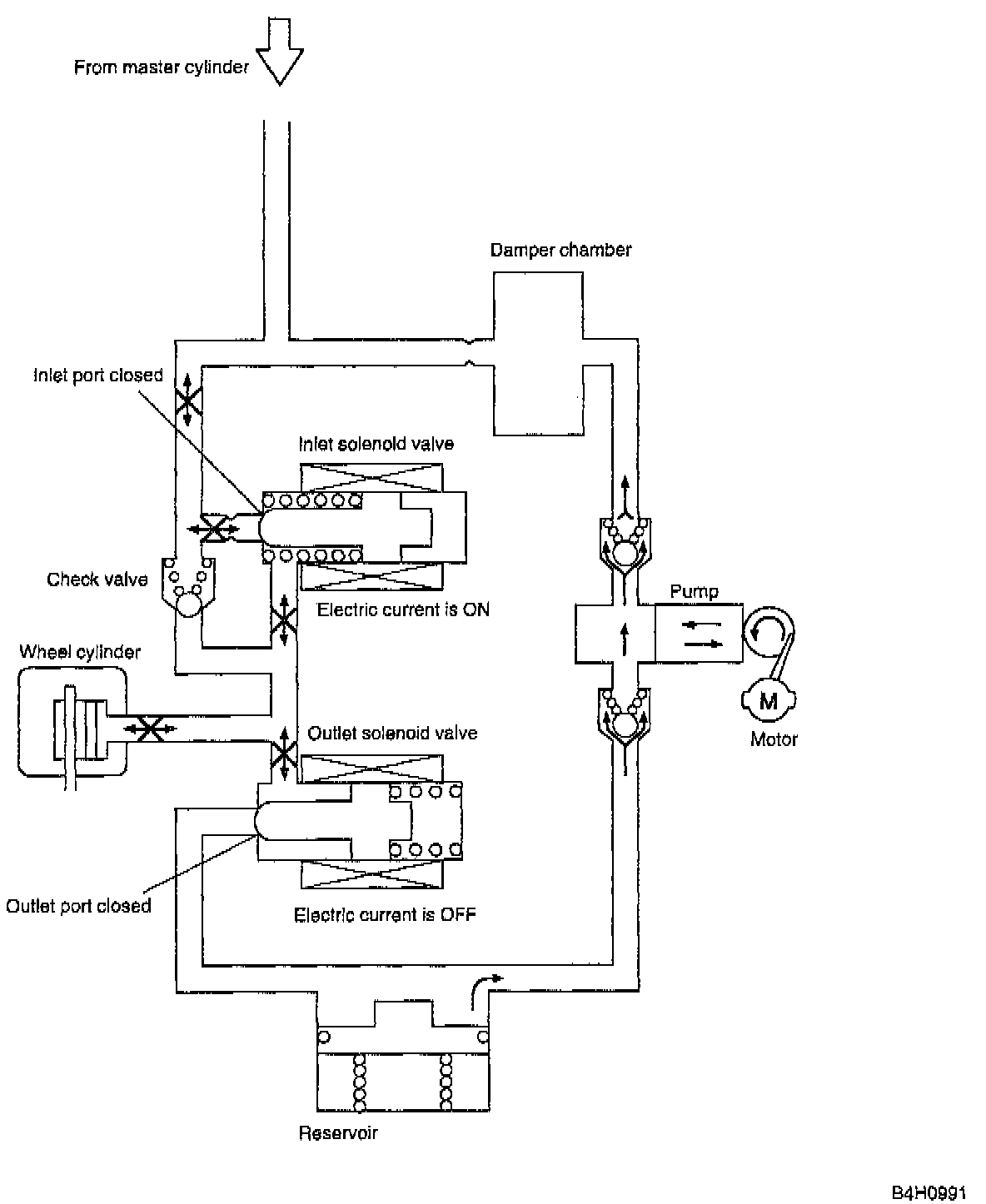

3. Pressure "hold" action with ABS in operation (explained with one wheel's control as an example).
Current is supplied to the inlet solenoid valve, and the generated solenoid valve attracting force closes the inlet port.
Since no current is supplied to the outlet solenoid valve, the output port remains in a closed state. As a result, the wheel cylinder, master cylinder and reservoir are blocked, and the fluid pressure of the wheel cylinder is maintained constant.
During ABS operation, the pump motor continues to operate.

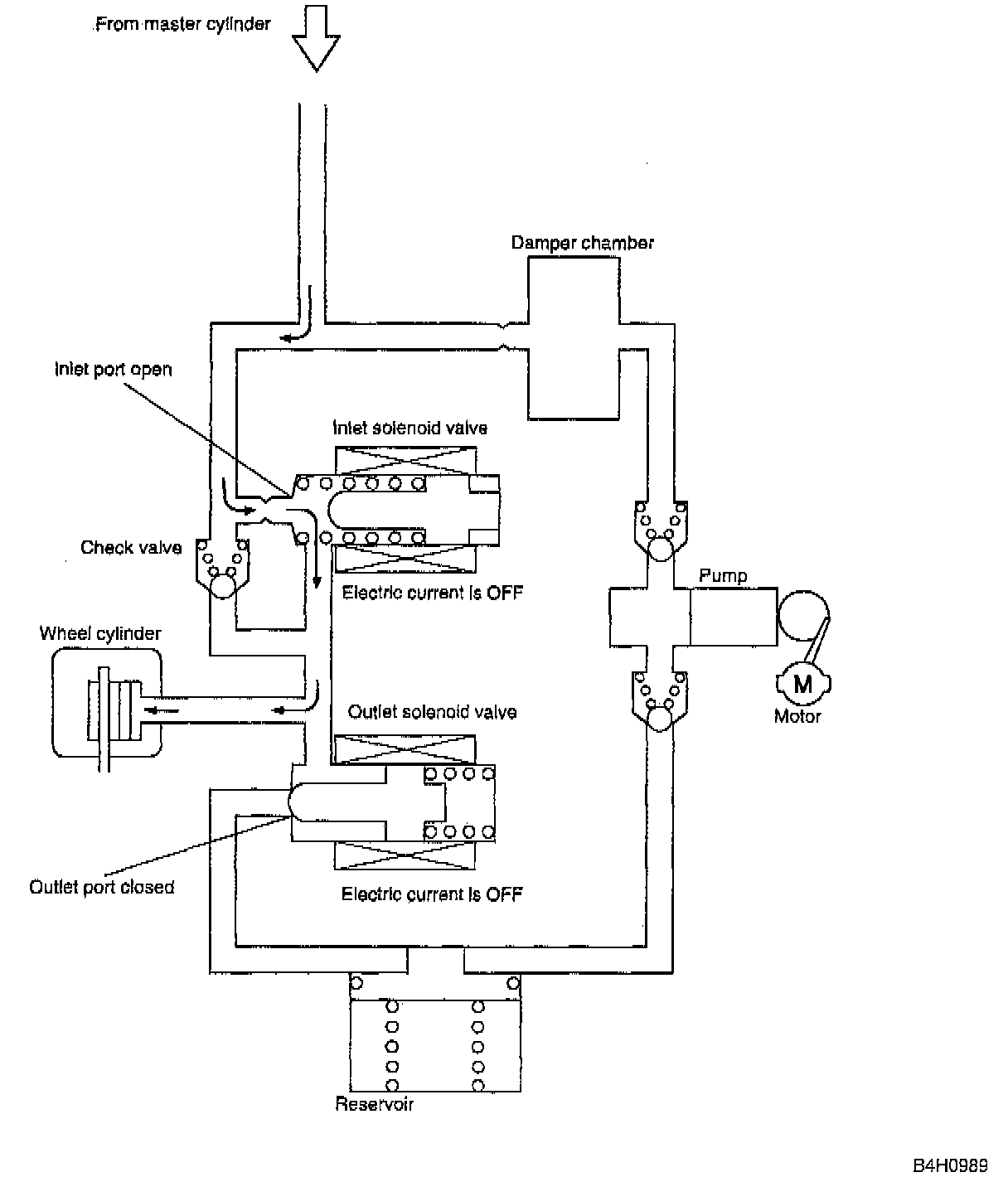

4. Pressure "increase" action with ABS in operation (explained with wheel's control as an example).
Since no current is supplied to the inlet and outlet solenoid valves, no solenoid valve attracting force is generated. So the valves remain stationary.
Accordingly, the inlet port of the inlet solenoid valve is in an opened state, whereas the outlet port Of the outlet solenoid valve is in a closed state. So the fluid pressure of the master cylinder is transmitted to the wheel cylinder to increase the brake force in the wheel cylinder. During ABS operation, the pump motor continues to operate.
