ABS Trouble Code Charts For Select Monitor Results

1. PRESSURE SW
Faulty pressure switch.

DIAGNOSIS:
^ Faulty pressure.
^ Faulty stop light switch.
^ Faulty stroke sensor.

TROUBLE SYMPTOM:
^ Traction Control System (TCS) does not operate.

NOTE: Check using the scan tool.

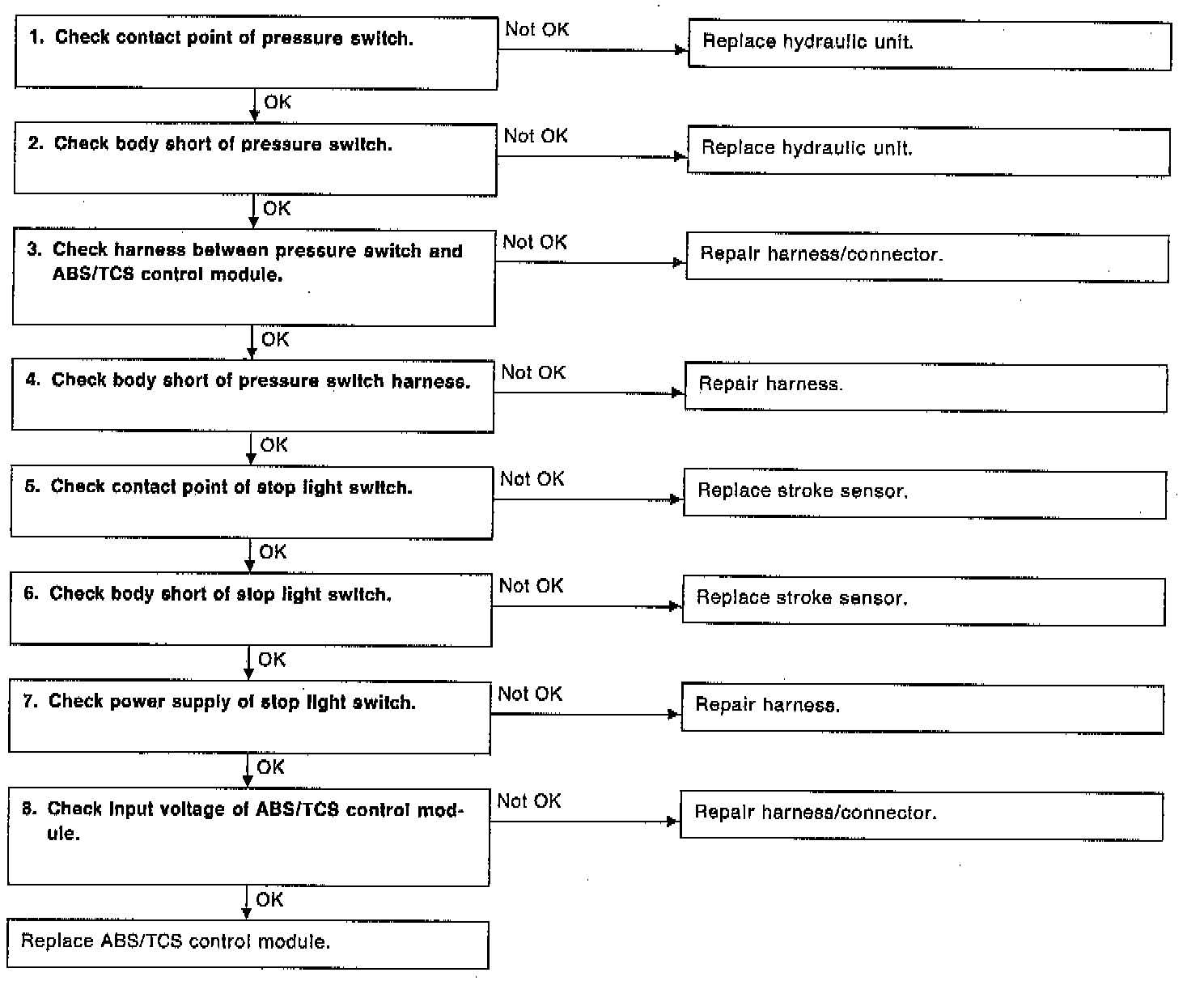

Operate the function FAO in scan tool TCS mode. The stop and brake switches can be checked by B1 LED ON/OFF. If system is normal, LED comes on when depressing brake pedal, and goes off when not depressing. If so, skip check steps 5 through 8 in the flowchart.
