Test 8V1

TEST 8V1: CHECK G SENSOR
1) Turn ignition switch to OFF.
2) Remove console box.
3) Disconnect connector from G sensor.

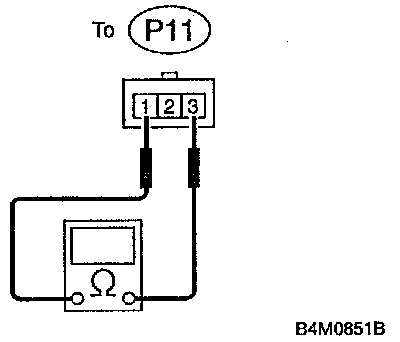

4) Measure resistance of G sensor.
Connector & terminal: To (P11) No. 1 & No. 3
CHECK: Is the resistance between 42 and 58 k ohms?
YES: Test 8V2
NO: Replace G sensor.
