Electrical Diagrams

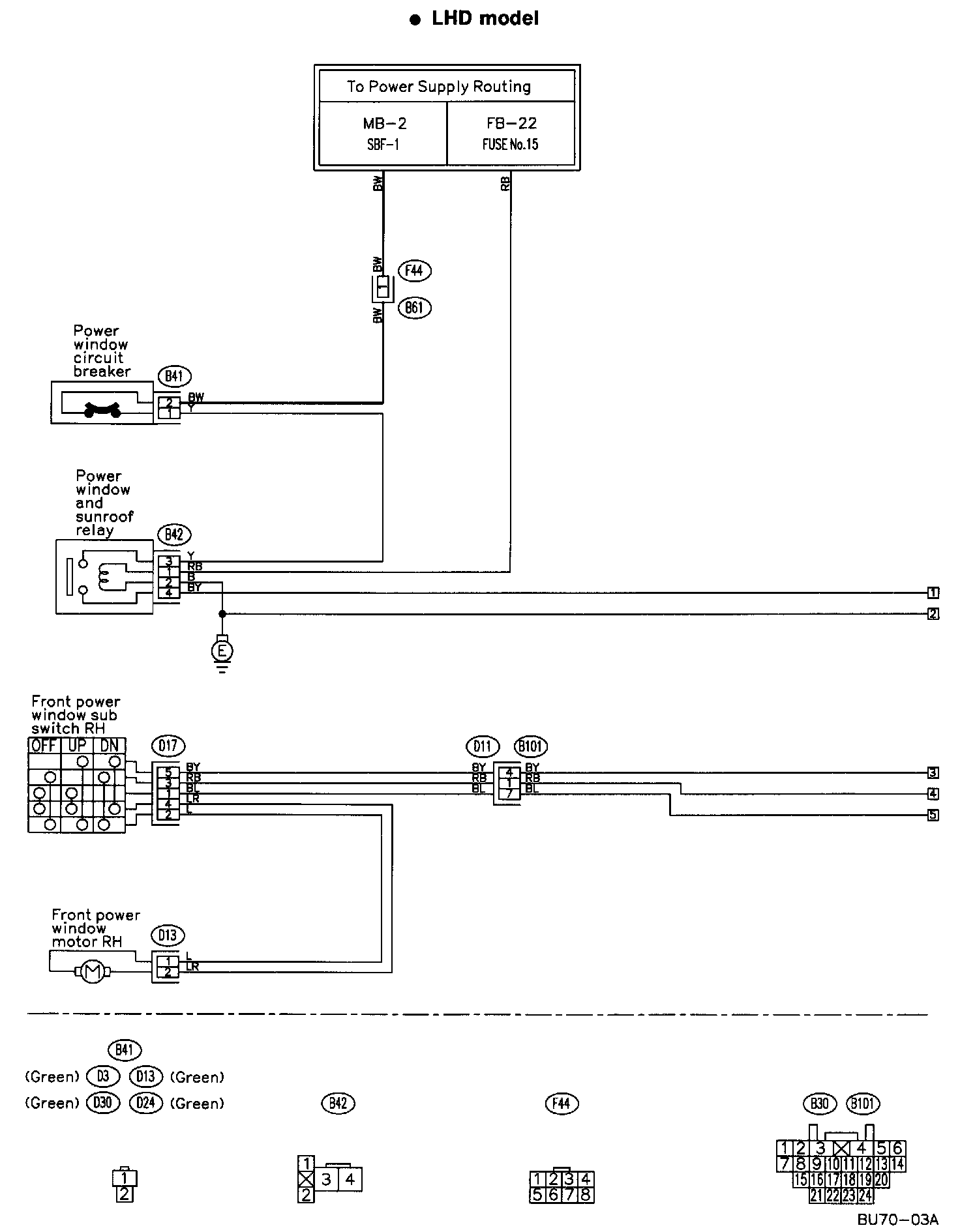

Power Window System (LHD Model) Circuit 1:

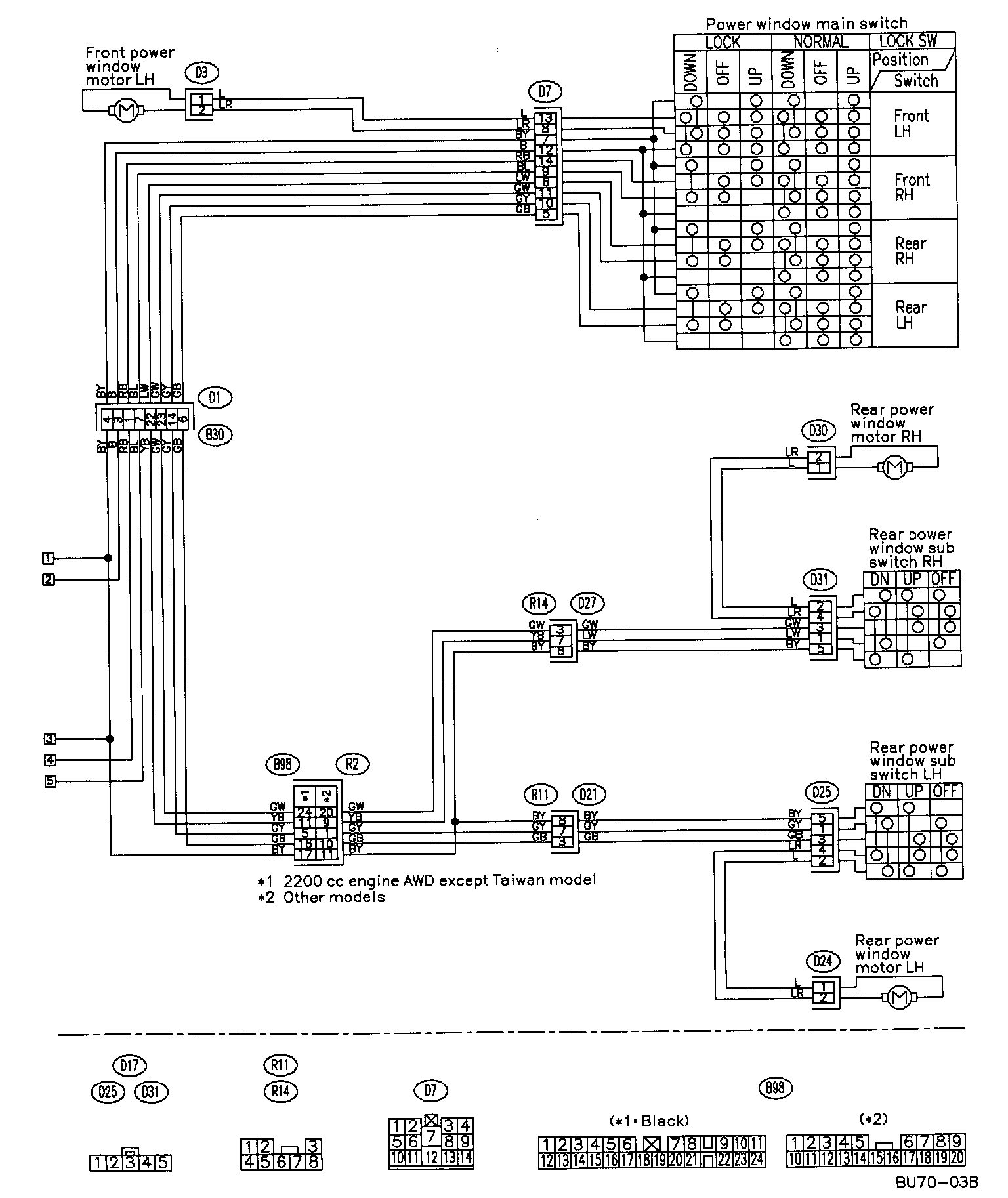

Power Window System (LHD Model) Circuit 2:

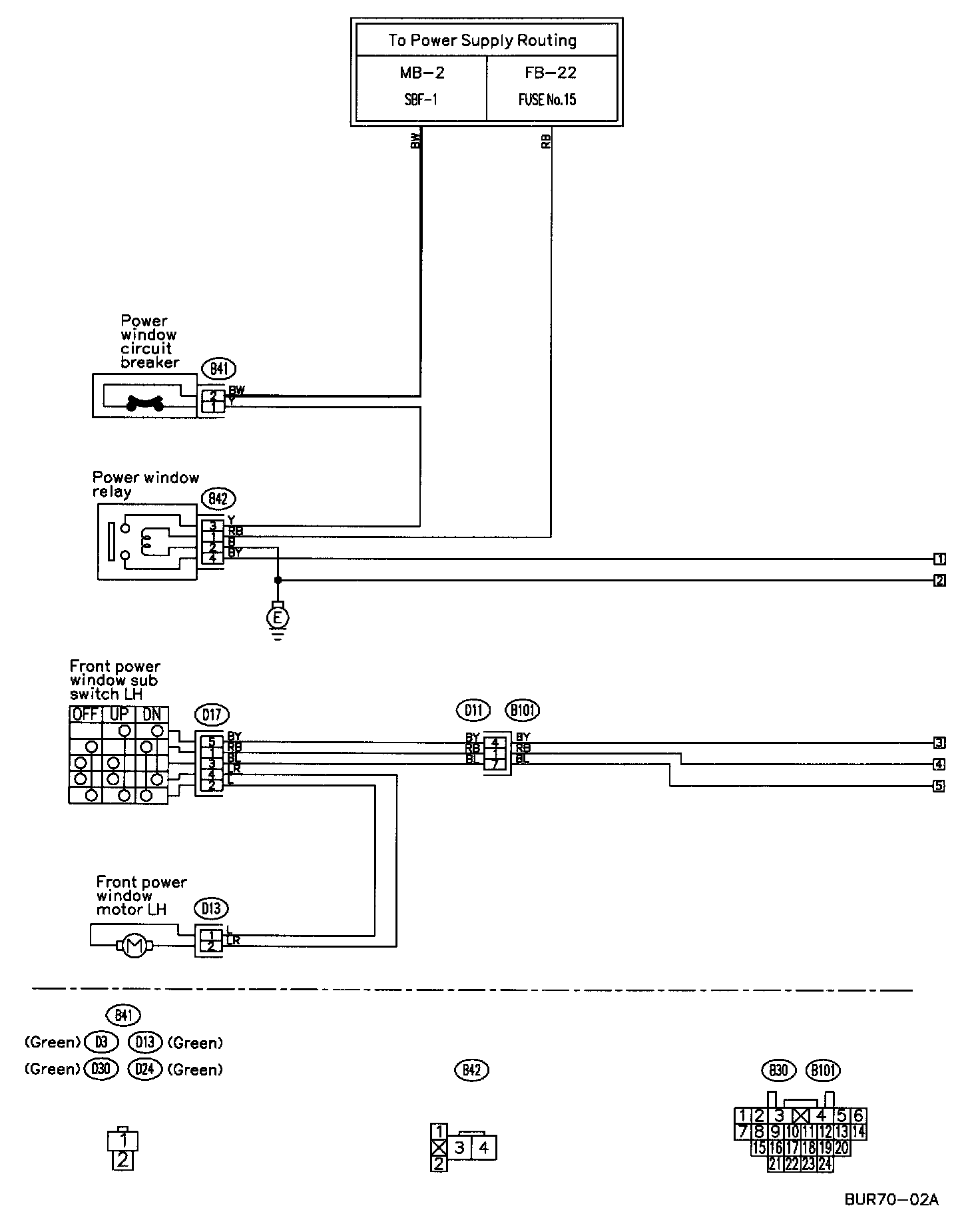

Power Window System (RHD Model) Circuit 1:

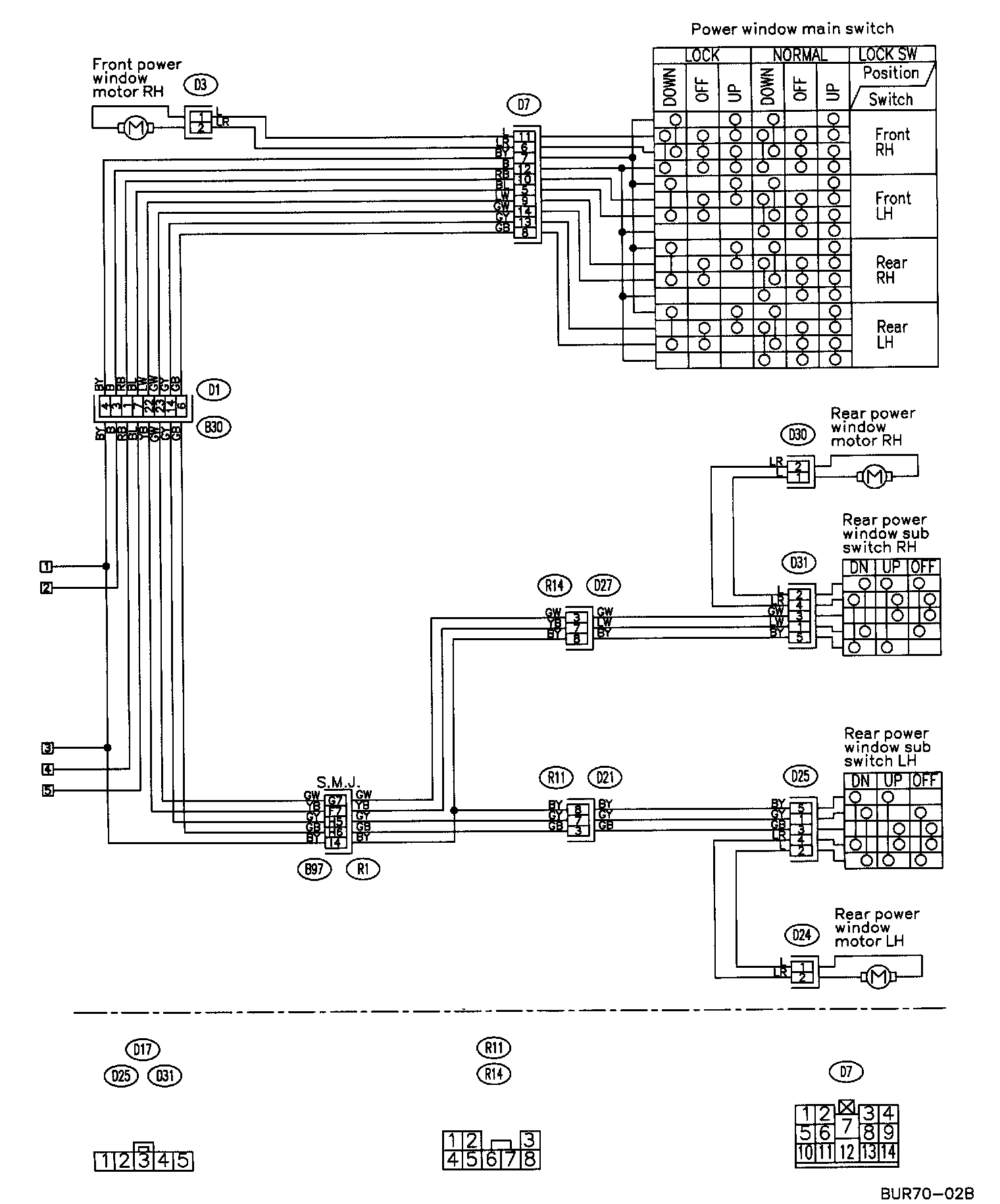

Power Window System (RHD Model) Circuit 2:
