Reverse Idler Gear: Adjustments

Reverse Idler Gear Position





Reverse idler gear to transmission case (LH) wall clearance: 6.0 - 7.5 mm (0.236 - 0.295 inch).

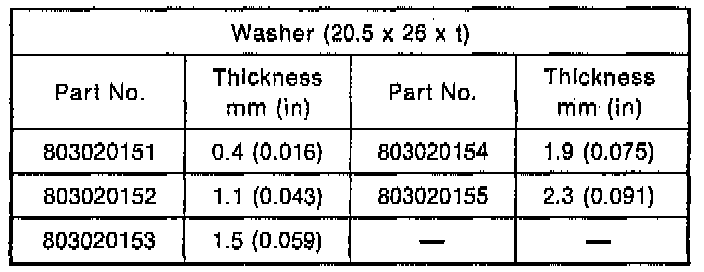

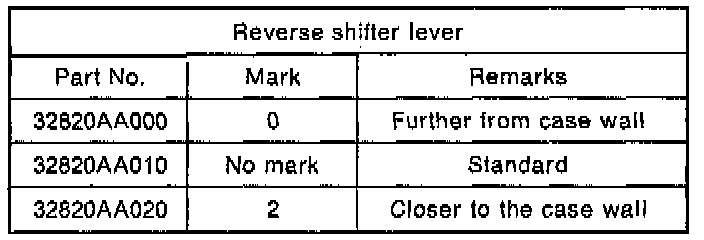

After installing a suitable reverse shifter lever, adjust reverse idler gear to transmission case wall clearance to within 0 to 0.5 mm (0 to 0.020 inch) using washers.
