Installation

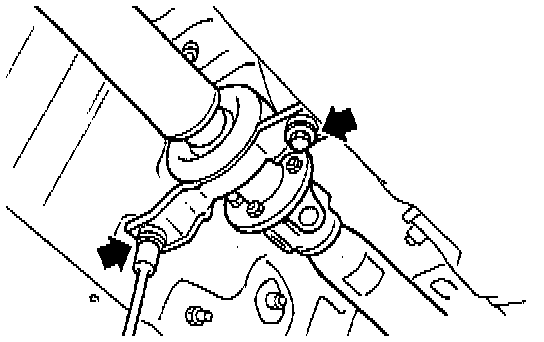

1. Insert sleeve yoke into transmission and attach center bearing to vehicle body.
Tightening Torque: 52 +/- 5 Nm (38.3 +/- 3.6 ft. lbs.).

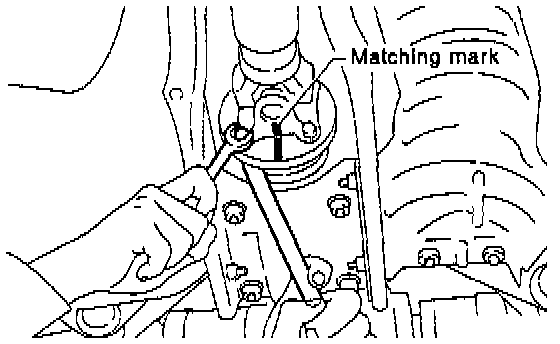

2. Align matching marks and connect flange yoke and rear differential.
Tightening Torque: 31 +/- 8 Nm (23.1 +/- 5.8 ft. lbs.).





3. Install differential mount front cover.
Tightening Torque: 88 +/- 10 Nm (65 +/- 7 ft. lbs.).

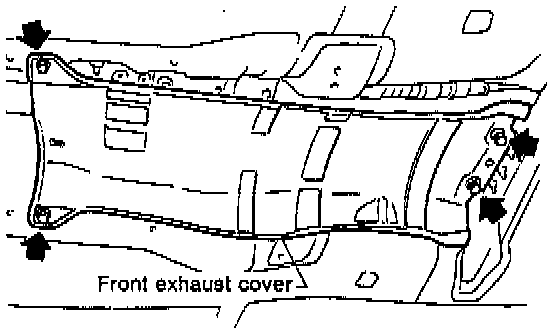

4. Install front exhaust cover.
5. Install rear exhaust pipe and muffler.
