Disassembly

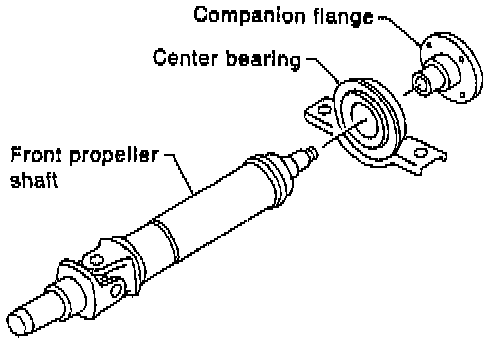

Before removing center bearing, check its condition: If it does not operate smoothly or if there is any free play or leakage, remove as follows:

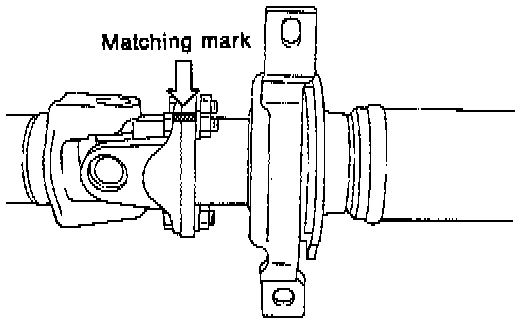

1. Put matching marks on affected parts.

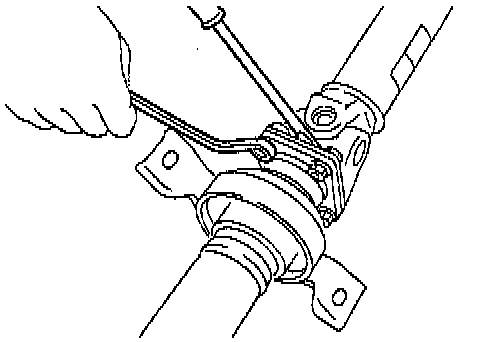

2. Remove bolts which hold front propeller shaft to rear propeller shaft.





3. Place companion flange in a vise and remove stake nut.

CAUTION: Be sure not to hold propeller shaft pipe portion in the vise.





4. Drive out companion flange with a puller or press.

NOTE: Before disassembling, put matching mark on affected parts.

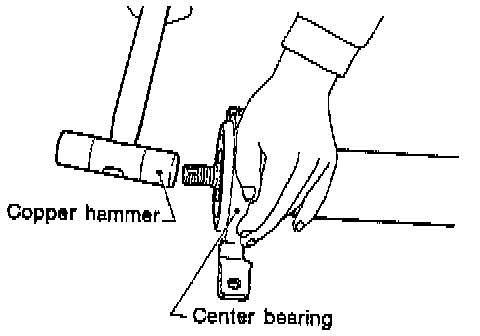

5. Lightly tap the head of front propeller shaft with a copper hammer until center bearing is removed.

CAUTION: Be careful not to damage the thread portion.
