Removal

1. Clean transmission exterior.

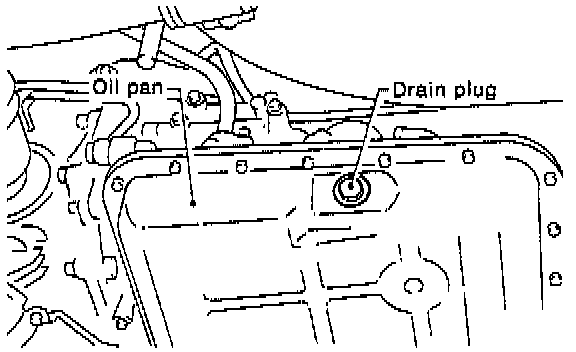

2. Drain ATF completely.

NOTE: Tighten ATF drain plug after draining ATF. Tightening Torque: 25 +/-2 Nm (18.1 +/-1.4 ft. lbs.).

3. Remove oil pan and gasket.

NOTE: Drain oil into a container.

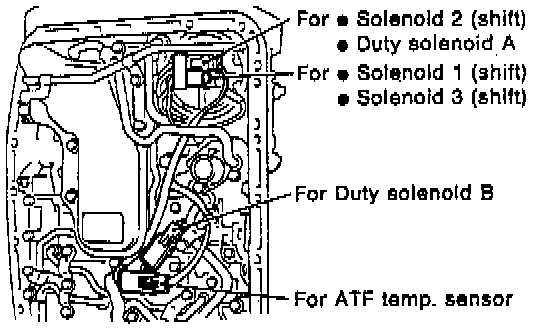

4. Disconnect solenoid valve connectors. Remove connectors from clips and disconnect connectors at 4 places.





5. Remove oil strainer. Disconnect oil pipe by removing the two bolts. Remove four bolts and oil strainer.

NOTE: Be careful because oil flows from oil strainer.

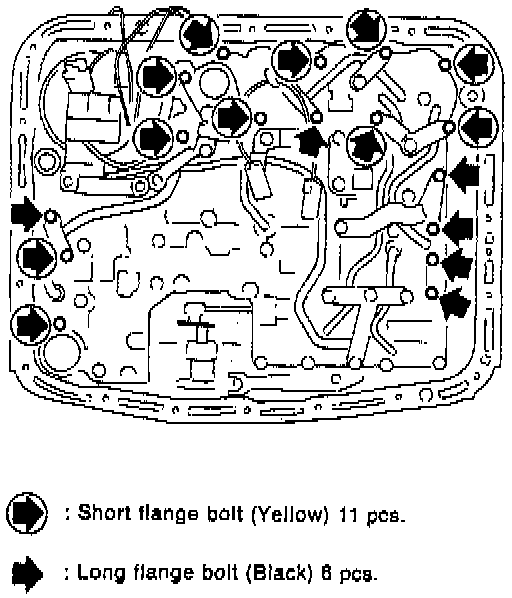

6. Remove control valve body and two brackets. Remove 6 long bolts (Black) and 11 short bolts (Yellow).

NOTE:
- Be careful because oil flows from valve body.
- Be careful not to damage accumulator spring at rear of control valve.

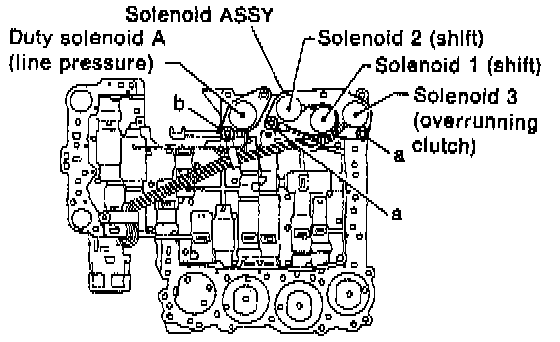

7. Remove shift solenoids 1, 2, and 3, and duty solenoid A.
a length: 16 mm (0.63 inch).
b length: 27 mm (1.06 inch).

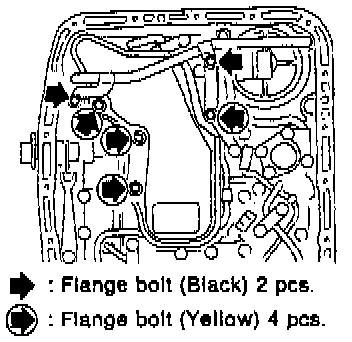

8. Remove duty solenoid B.
