Installation

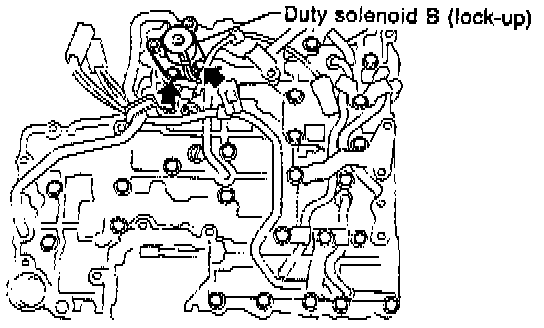

1. Install duty solenoid B (lock-up).
Tightening Torque: 11.3 +/-1.5 Nm (8.3 +/-1.1 ft. lbs.).





2. Install solenoid valves. Shift solenoids, 1, 2 and 3, and duty solenoid A (line pressure).
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).

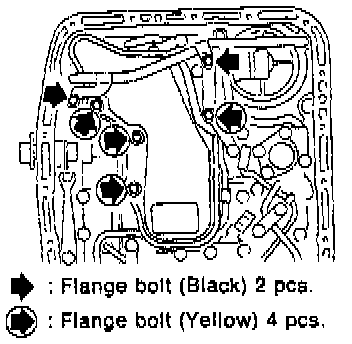

3. Install valve body and two brackets.
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).

NOTE:

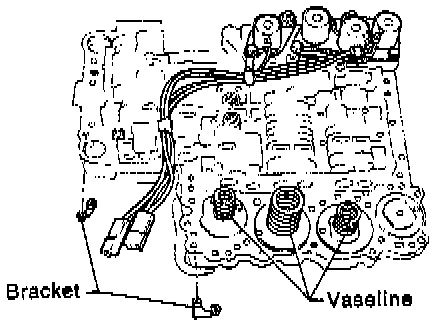

- Secure accumulator springs using Vaseline.
- Align manual valve connections.





4. Install oil strainer.
Also install oil pipe and harness connector bracket.
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).

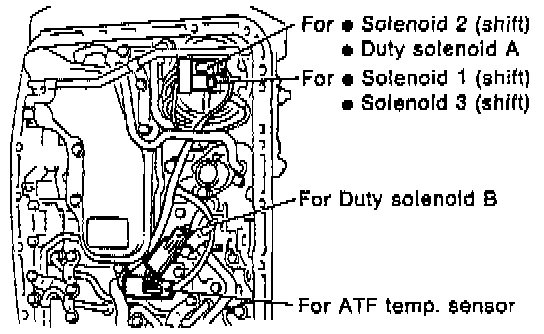

5. Connect harness connectors at 4 places.
Connect connectors of same color, and secure connectors to valve body using clips.

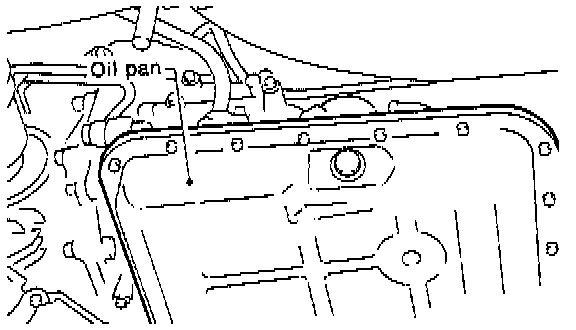

6. Install oil pan and gasket.
Tightening Torque: 4.9 +/-0.5 Nm (3.6 +/-0.4 ft. lbs.).

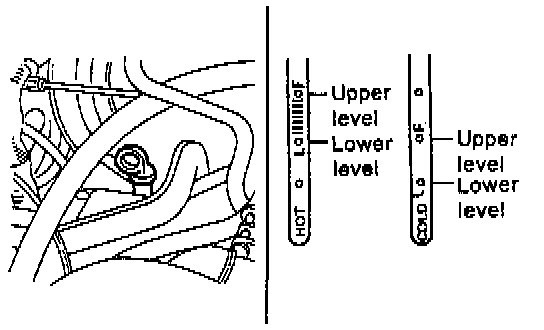

7. Add ATF and check level.
