Speedometer Gear, A/T: Description and Operation

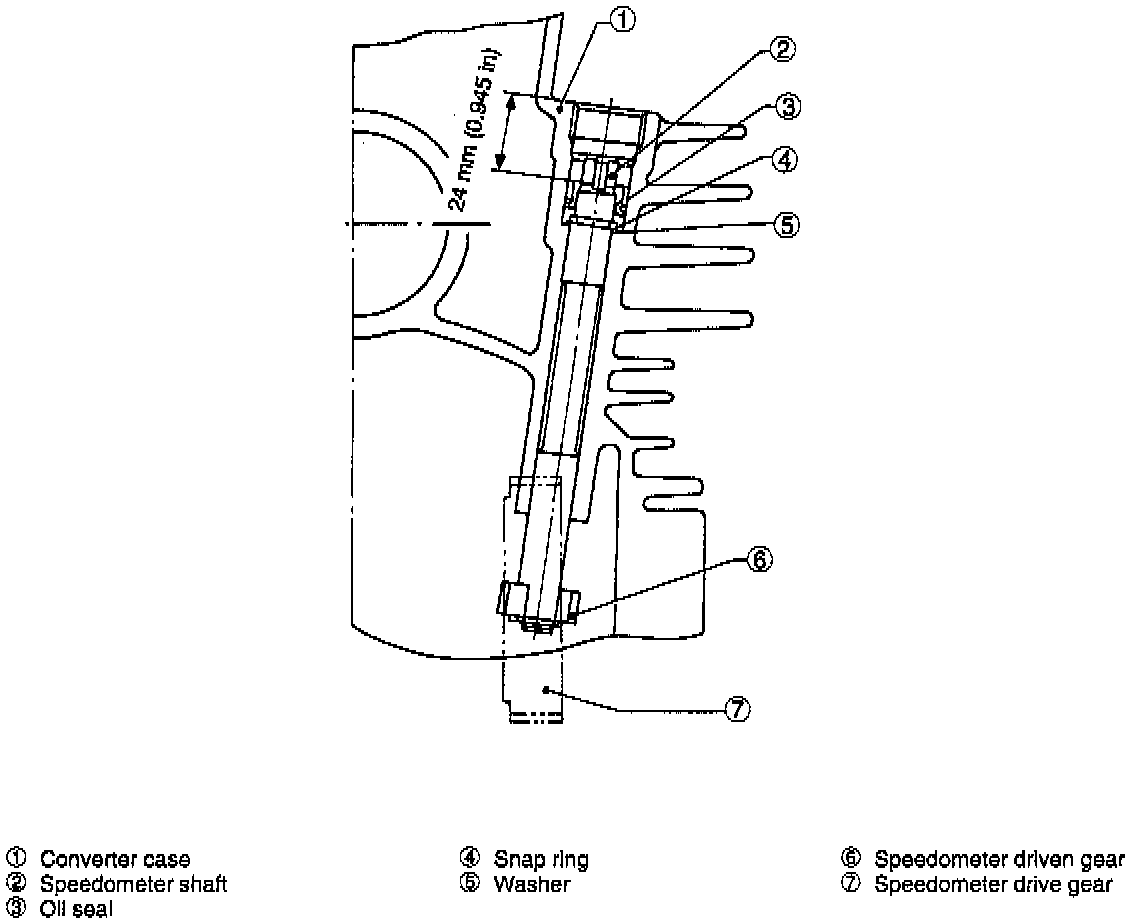

The speedometer drive gear is mounted directly on the differential case, and the speedometer driven gear is mounted to the torque converter case. With this arrangement, the speedometer drive and driven gears are properly lubricated.
