Disassembly and Assembly

DISASSEMBLY

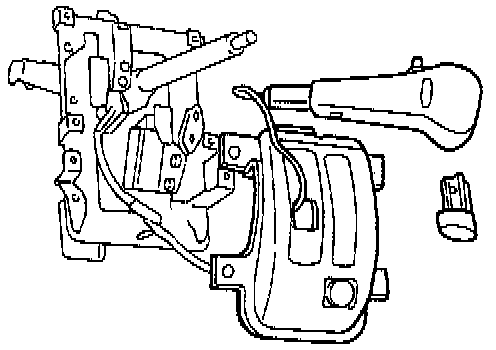

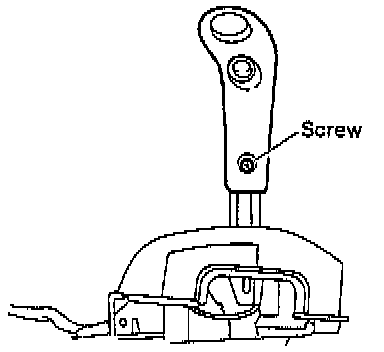

1. Remove grip from selector lever.
2. Remove indicator from plate.





3. Remove the following parts from the grip.

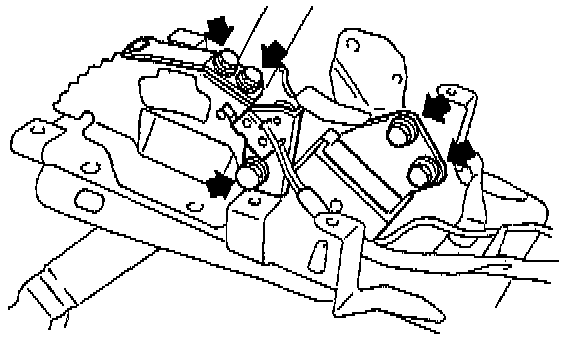

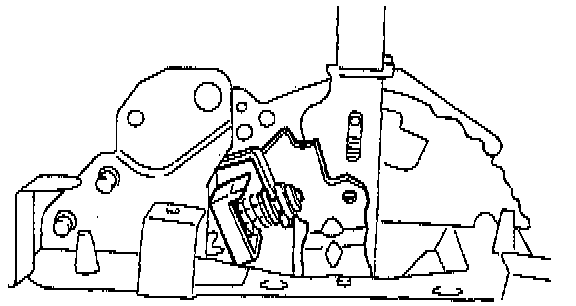

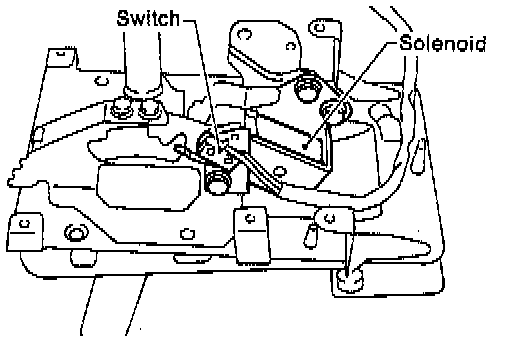

4. Remove shift-lock solenoid and "P" position switch.





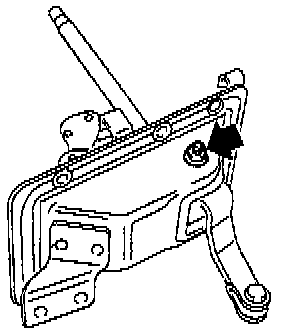

5. Remove the bolt to take off the selector lever from the plate and remove selector lever from the plate.

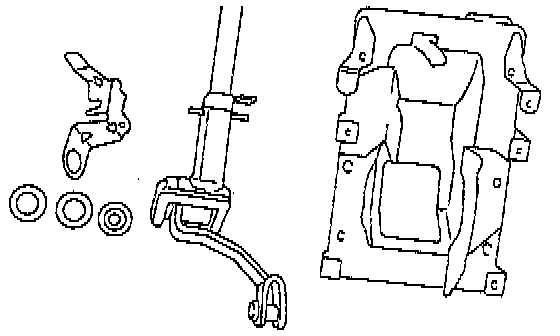

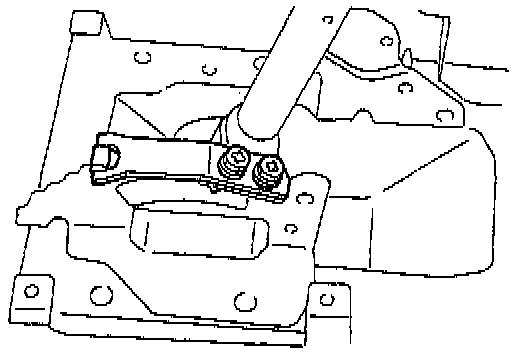

6. Remove lock plate.
7. Remove selector lever from the plate.





8. Remove detention spring.

INSPECTION
1. Inspect removed parts by comparing with new ones for deformation, damage and wear. Correct or replace if defective.
2. Confirm the following parts for operating condition before assembly.
a. Sliding condition of the button in the grip ... it should move smoothly.
b. Insertion of the grip on the selector lever... when pushing the grip on the selector lever by hand, screw holes should be aligned.
c. Operation of selector lever and rod ... they should move smoothly.
d. Insertion of the spacer into the selector lever... it should be inserted lightly by finger pressure.

ASSEMBLY
1. Clean all parts before assembly.
2. Assemble selector lever to the plate.





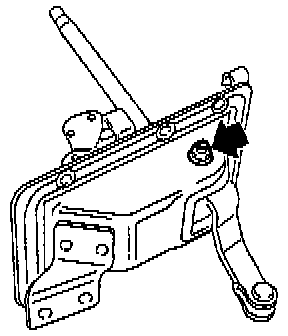

3. Insert the bolt and tighten the flange nut to the specified torque.
Tightening torque (Flange nut): 12 +/-3 Nm (8.9 +/-2.2 ft. lbs.).





4. Assemble detention spring, shift-lock solenoid and "P" position switch.





5. Adjust the position of shift-lock plate and solenoid. Then, tighten bolts.





6. Assemble indicator to the plate
Tightening Torque: 1.6 +/-0.4 Nm (1.18 +/-0.30 ft. lbs.).

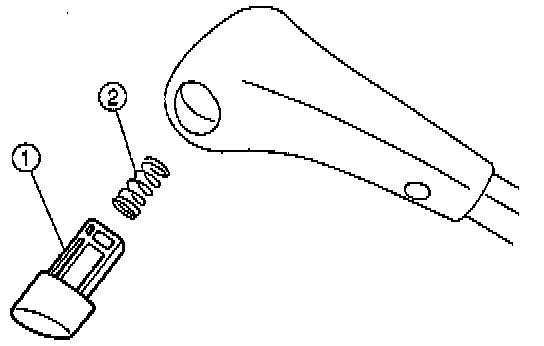

7. Assemble the following parts to the grip.

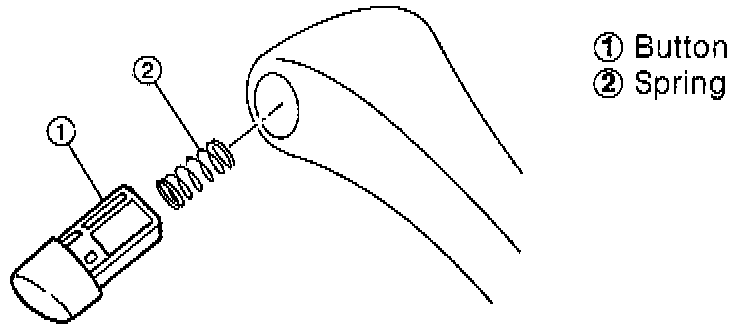

(1) Button
(2) Spring

CAUTION: Apply grease on sliding surfaces of the following parts.





8. Assemble the grip to the selector lever.
9. After completion of fitting, transfer selector lever to range "P" ~ "1", pressing the button of the grip; then check whether the indicator and select lever agree, whether the pointer and position mark agree and what the operating force is.
