Control Valve and Oil Pan

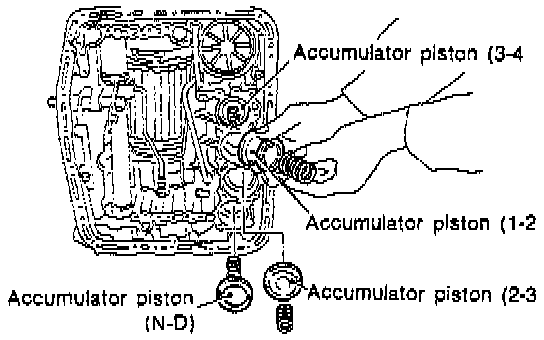

1. Install four accumulators with oil pans facing upward.

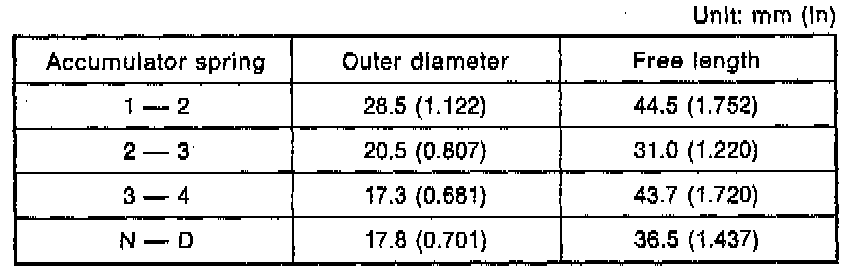

CAUTION: Be careful not to confuse the springs and installation positions.

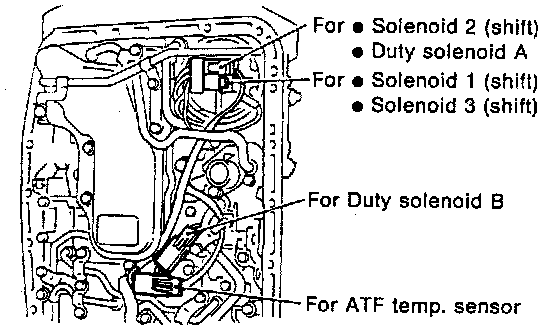

2. Install and route the transmission harness.

CAUTION: Be careful not to damage the harness.





3. Install the control valve assembly.
a. Set the select lever in range "2".
b. Install the two brackets and the control valve by engaging the manual valve and manual lever, then tighten the 17 bolts.
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).

CAUTION:
- Be careful not to pinch the harness roll the gasket.
- Tighten the control valve mounting bolts evenly.





4. Install the oil strainer to the control valve. Be careful not to cut or break the O-ring. Then tighten four bolts.
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).





5. Secure four connectors.





6. Install the oil cooler outlet pipe, and secure with two bolts.
Tightening Torque: 8 +/-1 Nm (5.8 +/-0.7 ft. lbs.).

CAUTION: Fit the pipe into position. Be careful to avoid twisting.





7. Install the oil pan.
a. Attach the magnet at the specified position.





b. With gasket inserted, secure the oil pan by tightening 20 bolts.
Tightening Torque: 4.9 +/-0.5 Nm (3.6 +/-0.4 ft. lbs.).

NOTE: Tighten the bolts evenly.
