Home >> Subaru >> 1997 >> Outback [Legacy] AWD F4-2.5L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Location and Installation Direction of Thrust Needle Bearing

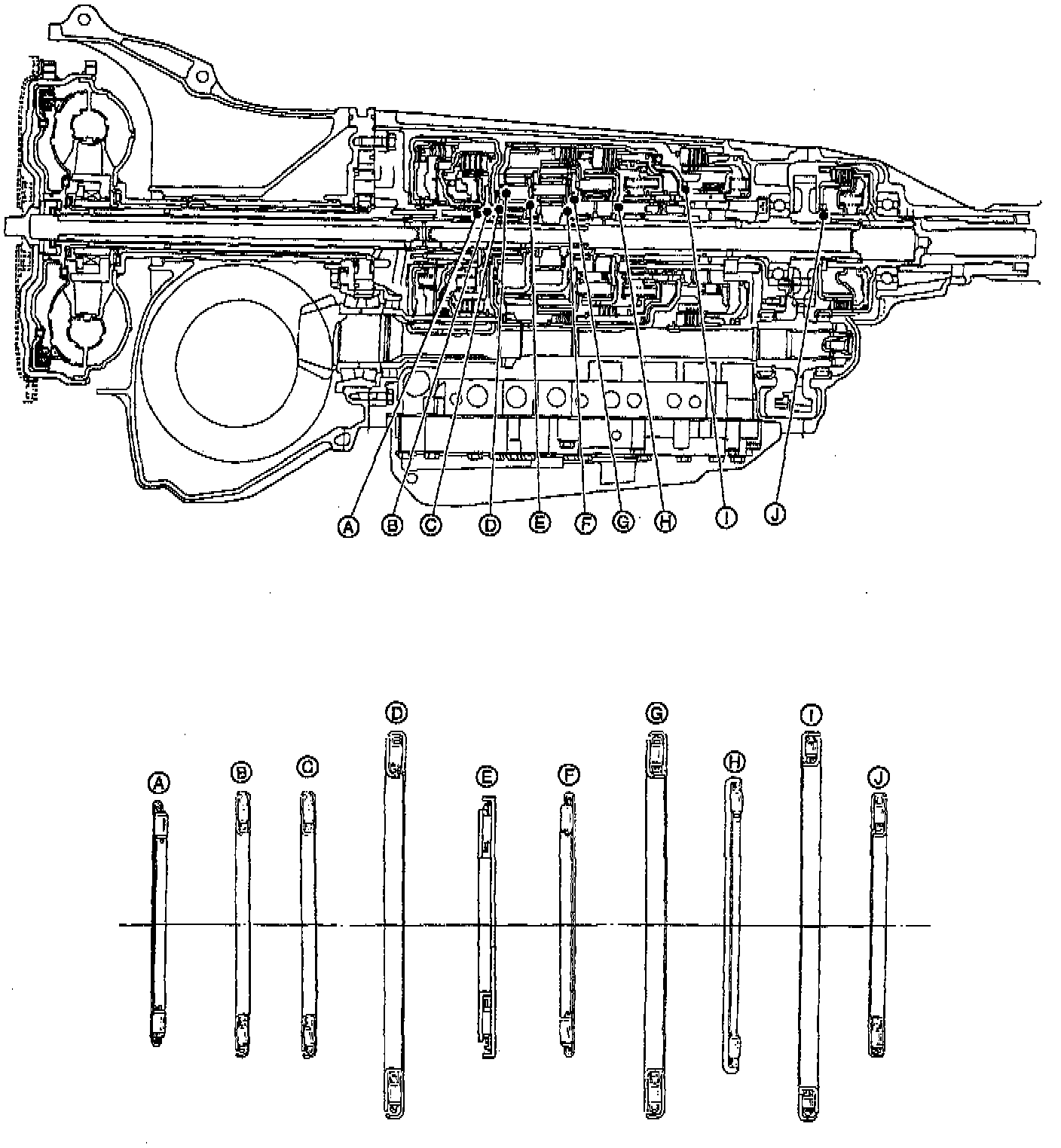

Location and Installation Direction of Thrust Needle Bearing

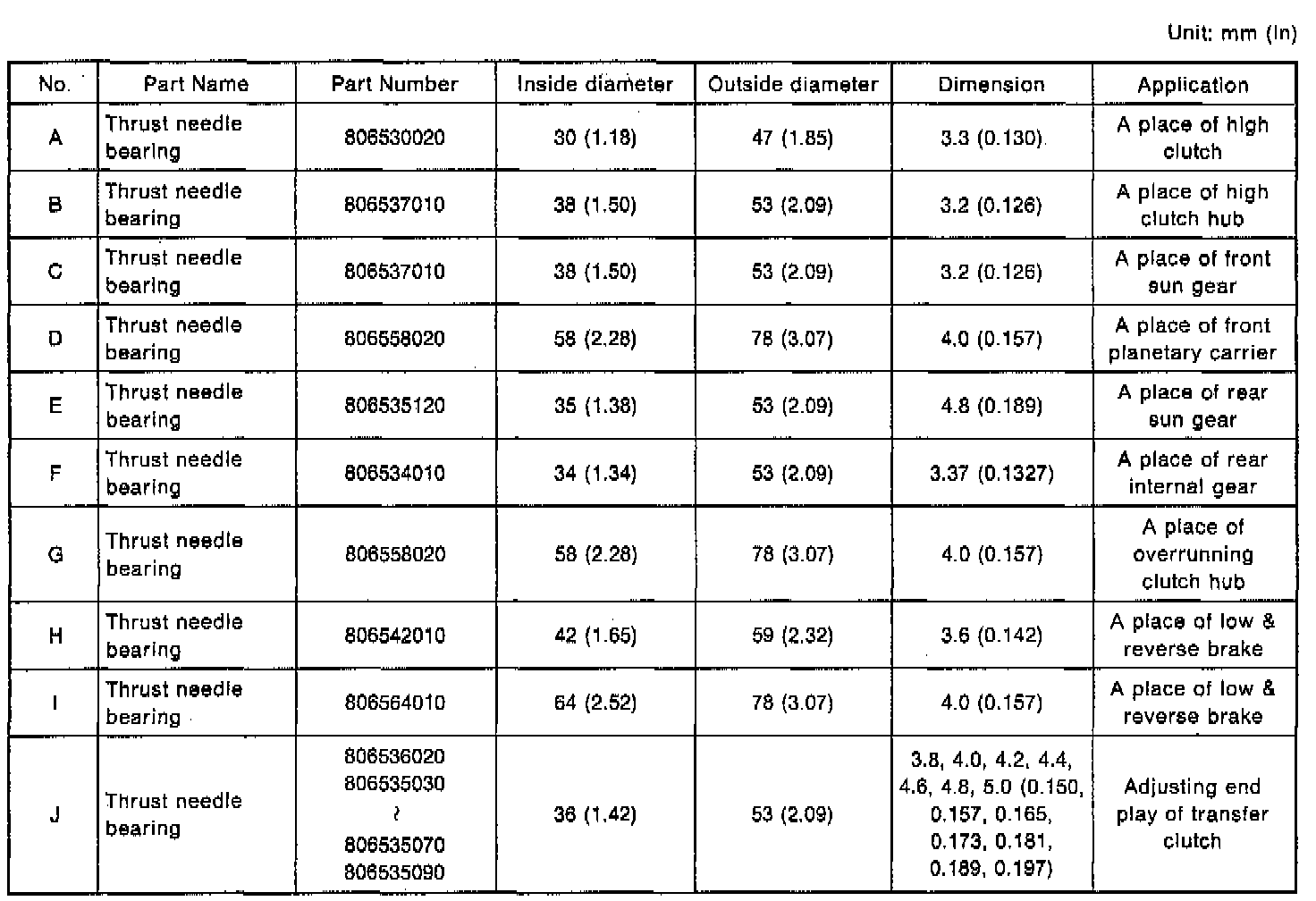

Part 1 Of 2:



Part 2 Of 2:
