Carrier Pinion Gears: Description and Operation

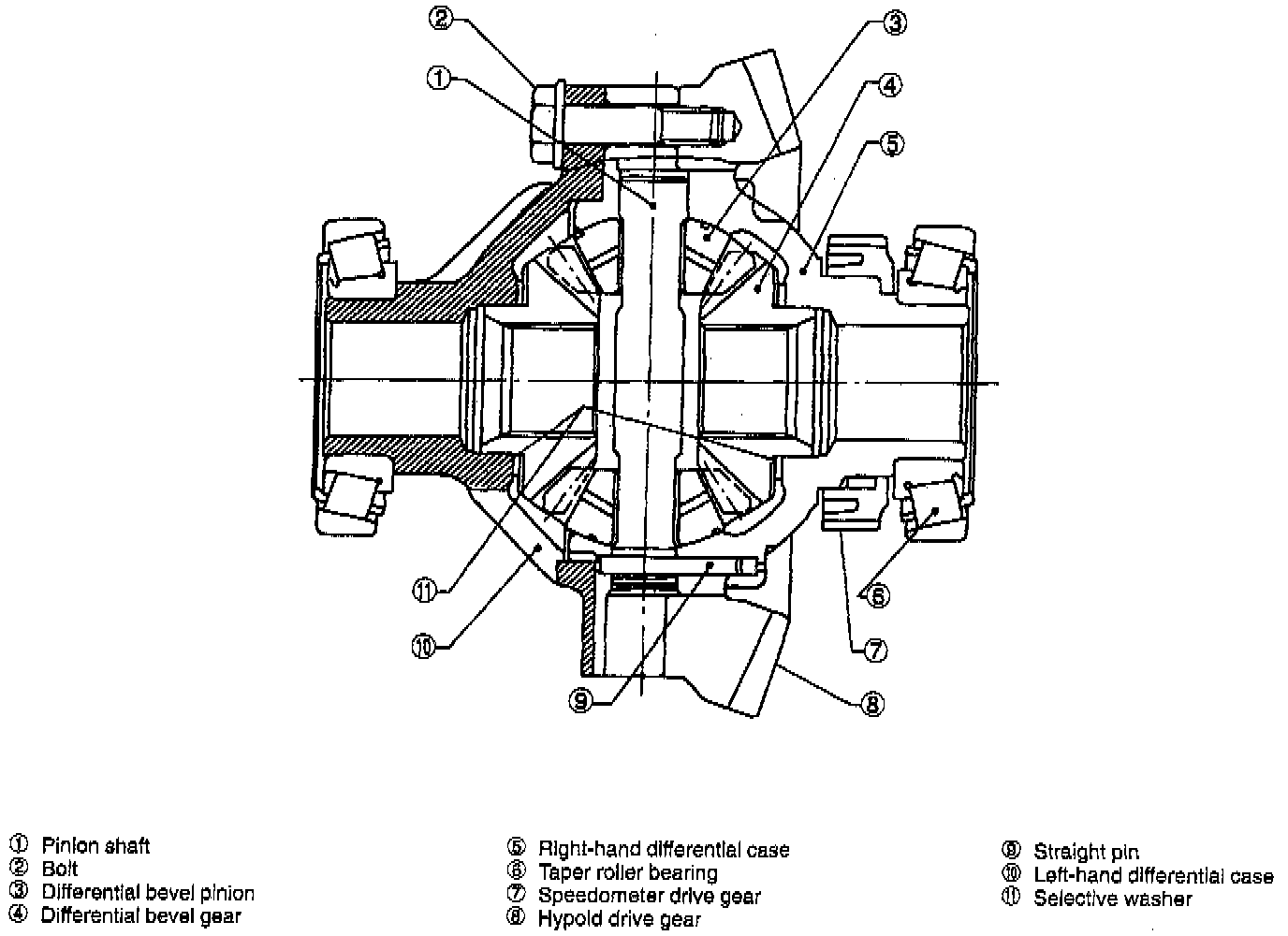

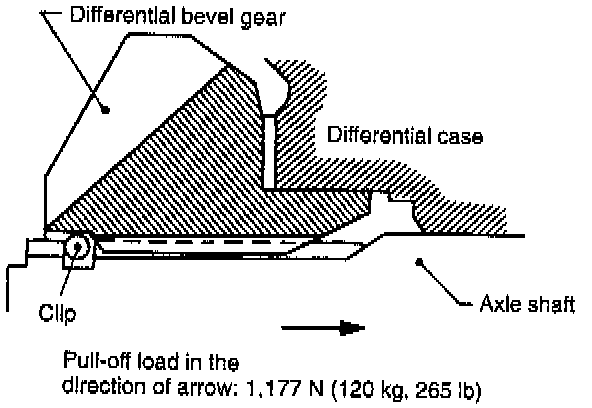

The differential bevel gear is locked to the axle shaft by a clip.
