Removal

REMOVAL
1) Loosen rear wheel nuts.

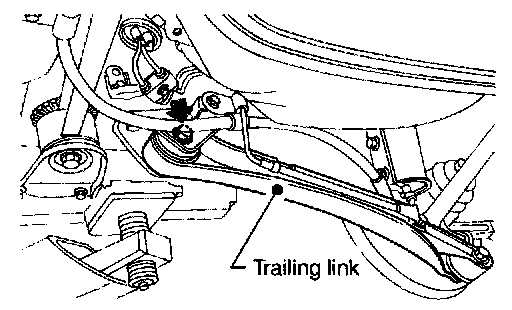

2) Lift-up vehicle, support it with safely stands (rigid racks) and remove rear wheels.
3) Remove both rear parking brake clamp and A.B.S. sensor harness. (A.B.S. equipped models.)

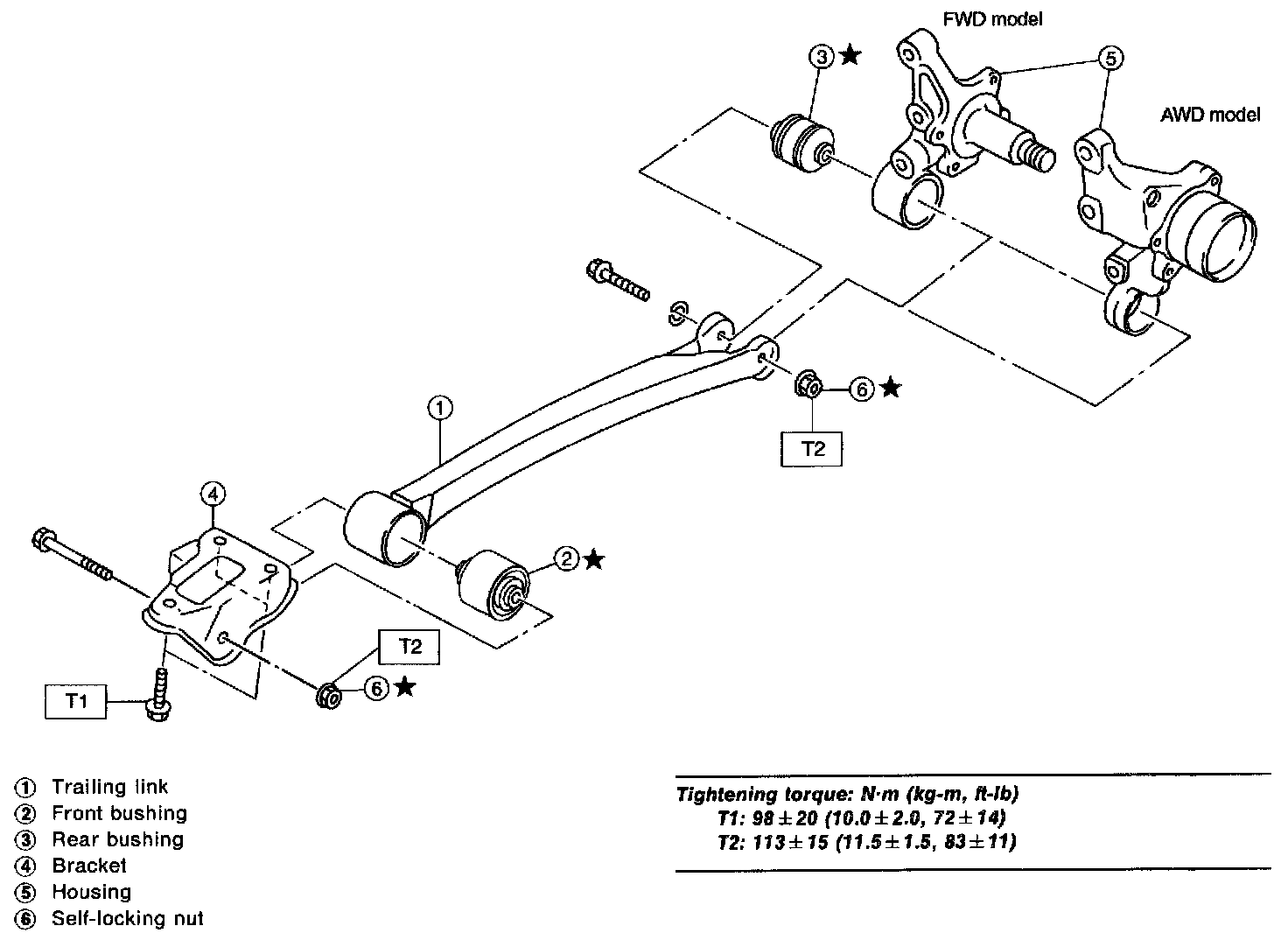

4) Remove bolt which secure trailing link to trailing link bracket.
5) Remove bolt which secure trailing link to rear housing.
