Removal

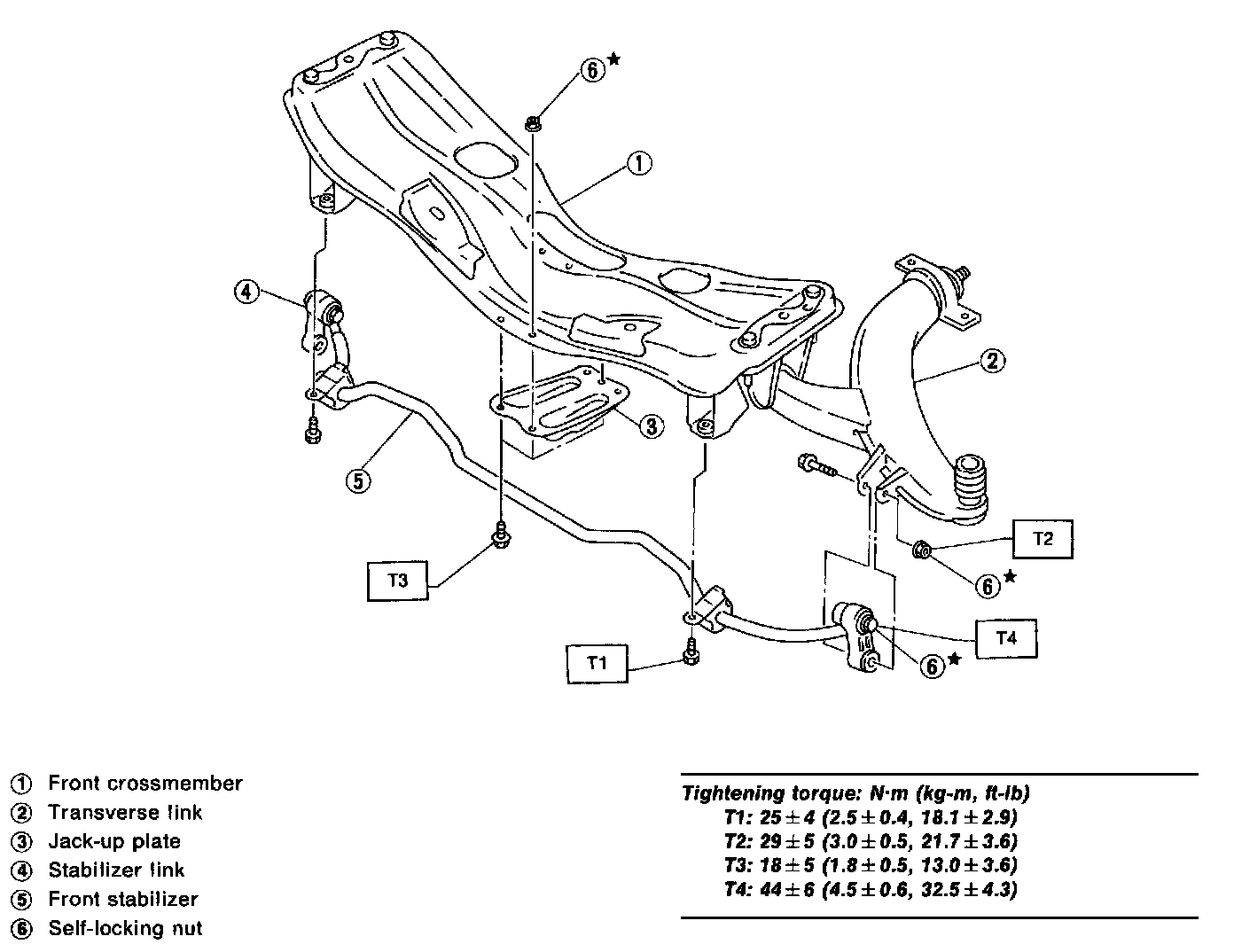

REMOVAL





1) Jack-up the front part of the vehicle, support it with safety stand (rigid racks).
2) Remove bolts which secure stabilizer to crossmember.





3) Remove boils which secure stabilizer link to front transverse link.
4) Remove jack-up plate from lower part of crossmember.
