Outback [Legacy] AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
M/T Torque Data
M/T Torque Data

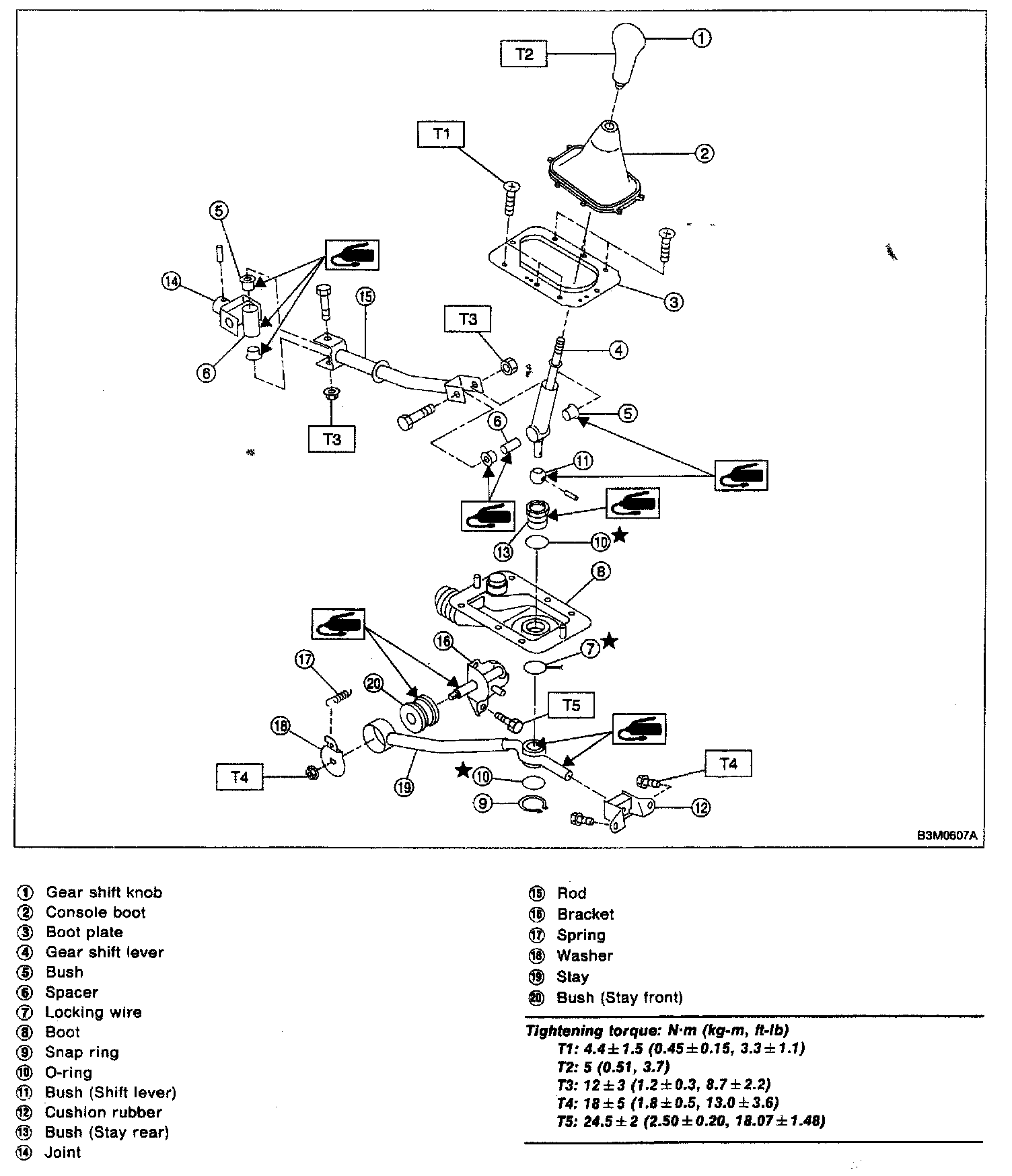

5-spd M/T, Transmission Control System (FWD):
5-spd M/T, Transmission Control System (AWD):

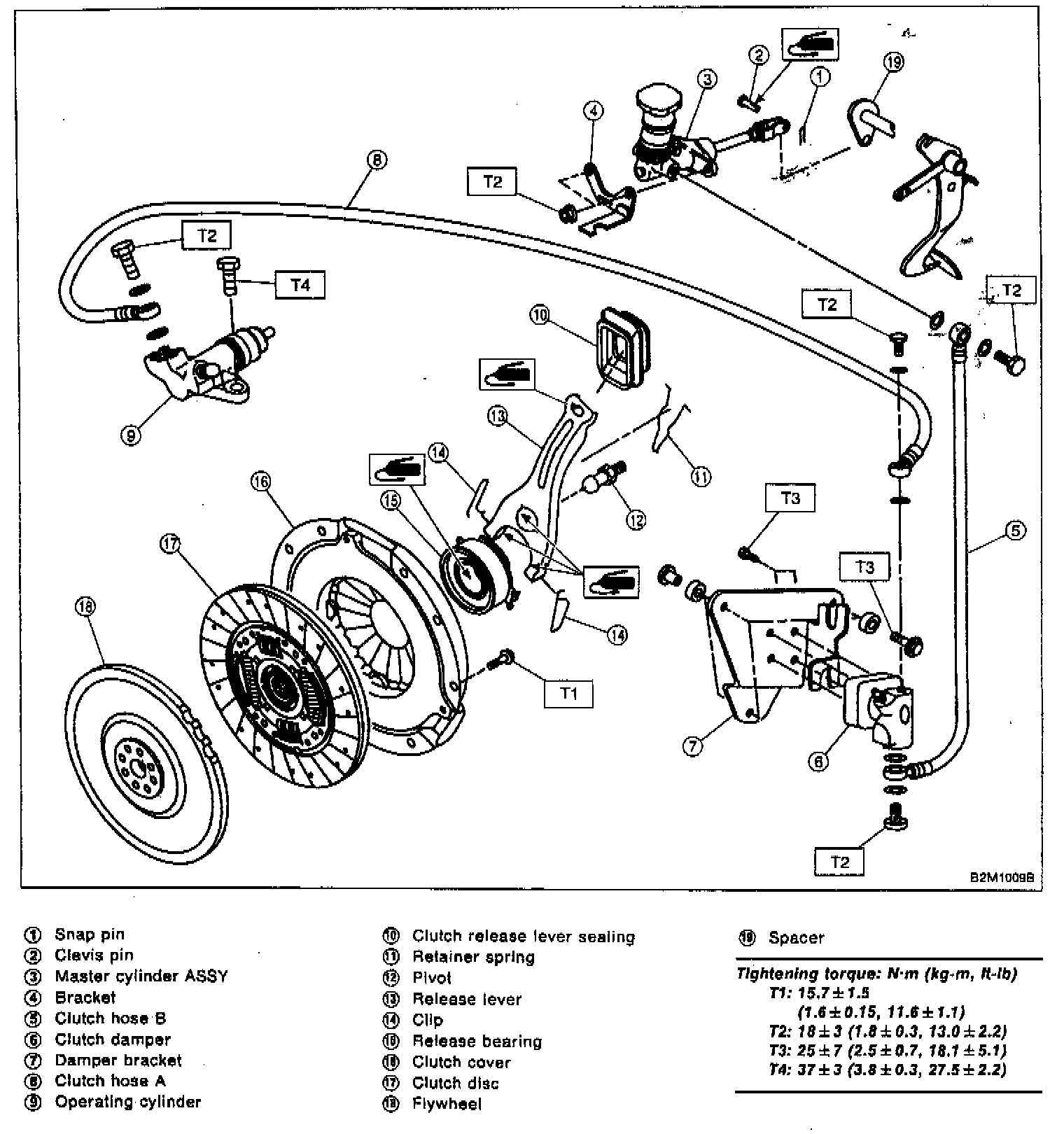

5-spd M/T, Transmission Clutch Assembly (Hydraulic Type):
