Thrust Washer For Side Clearance
Thrust Washer For Side Clearance

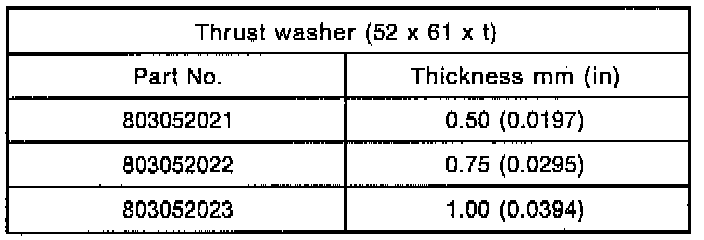

Thrust washer (52 x 61 x t) to ball bearing side clearance:
0.05 - 0.30 mm (0.0020 - 0.0118 inch)
