Snap Ring For Side Clearance

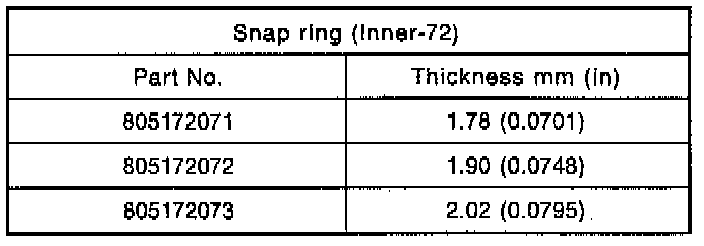

Snap ring (Inner-72) to ball bearing side clearance: 0 - 0.15 mm (0 - 0.0059 inch)

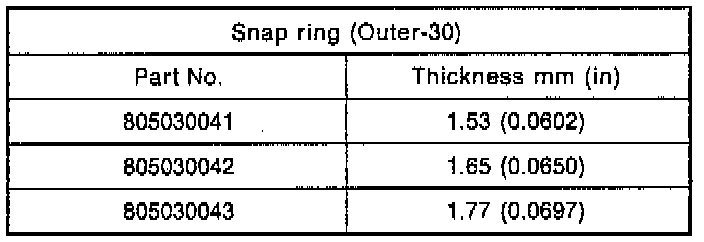

Snap ring (Outer-30) to ball bearing side clearance: 0 - 0.15 mm (0 - 0.0059 inch)
