Home >> Subaru >> 1997 >> Outback [Legacy] AWD F4-2.5L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> System Specifications >> Differential Technical Data >> AWD System

AWD System

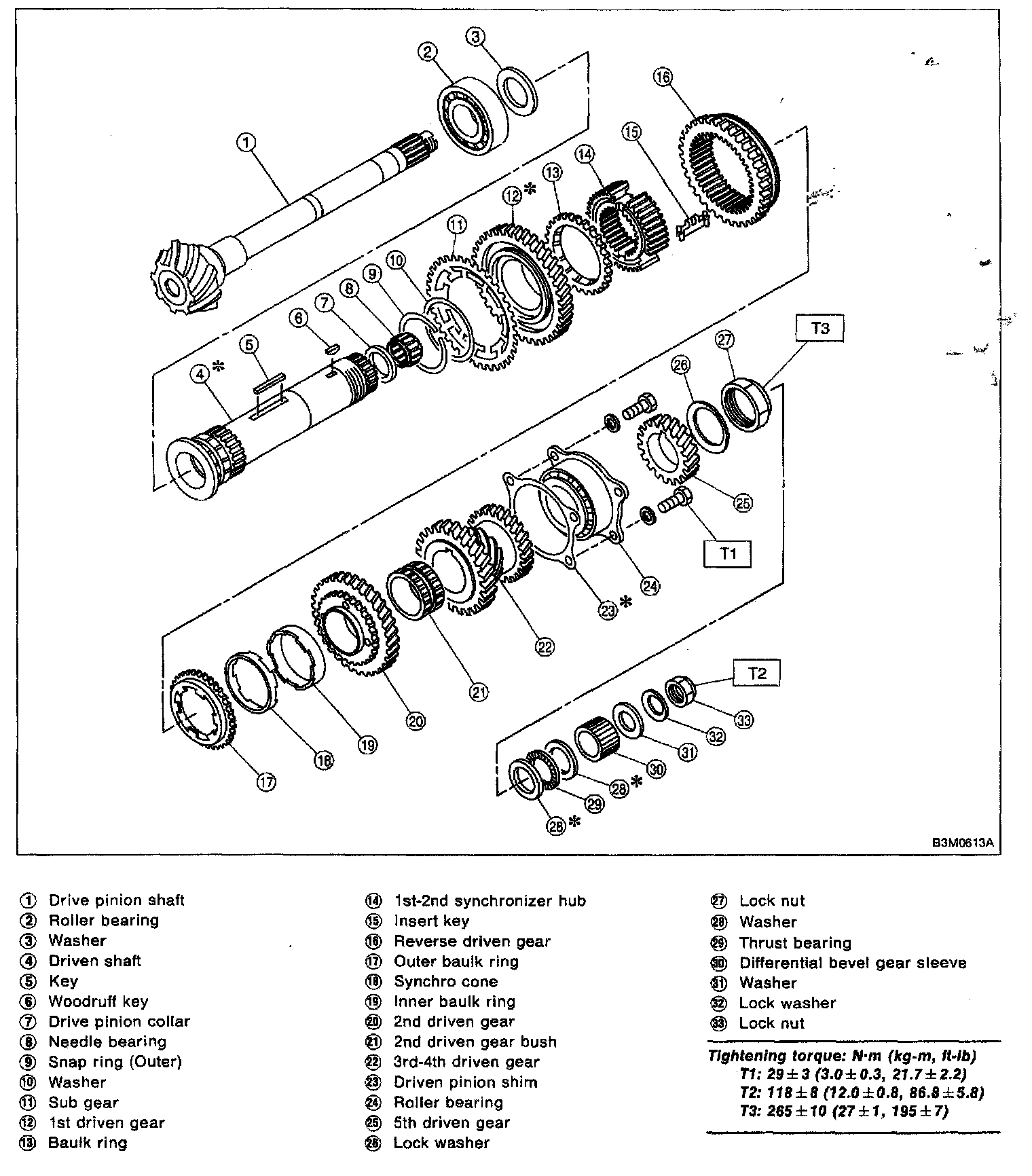

5-spd M/T, Drive Pinion Assembly (AWD):
