ABS/TCS Control Module
>>
Removal
Removal
REMOVAL
1)
Disconnect ground cable from battery.
2)
Remove floor mat located under lower right side of front seat.
3)

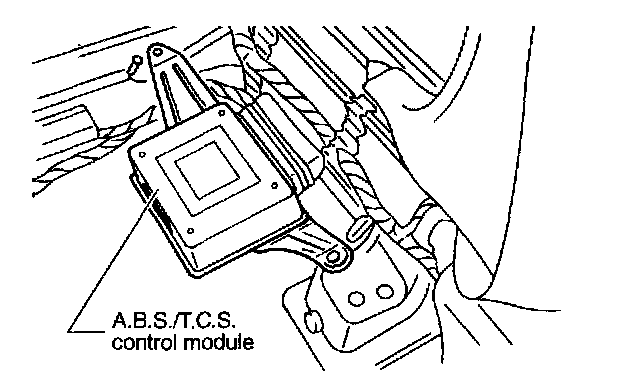

Remove screw which secure ABS/TCS control module from the body.
4)
Disconnect connector from ABS/TCS control module.
