Electronic Brake Control Module
>>
Service and Repair
>>
ABS Control Module
>>
Removal
Removal
REMOVAL
1)
Remove floor mat located under lower right side of front seat.

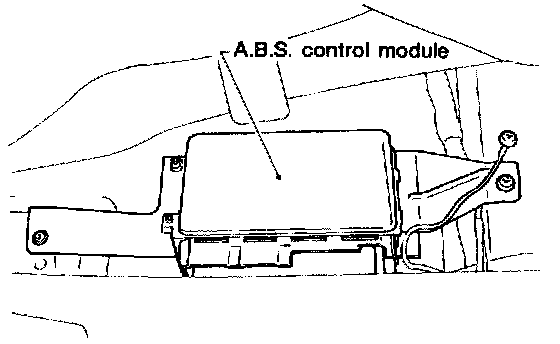

2)
Remove screw which secure
ABS control module
from the body.

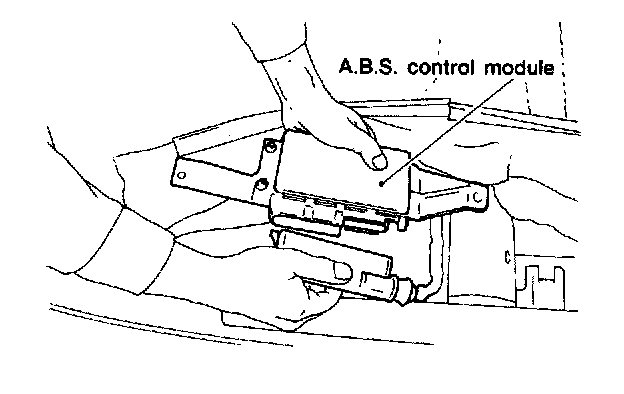

3)
Disconnect connector from
ABS control module
.
