Control Module: Service and Repair

REMOVAL
1. Disconnect battery ground cable.

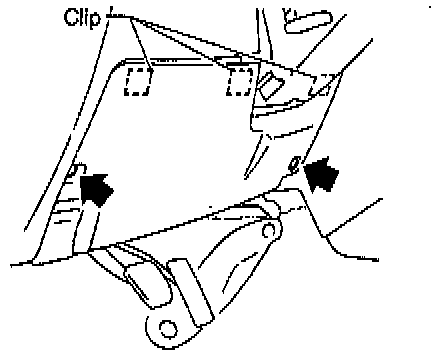

2. Remove lower cover and then disconnect connector.





3. Remove TCM from steering support beam.

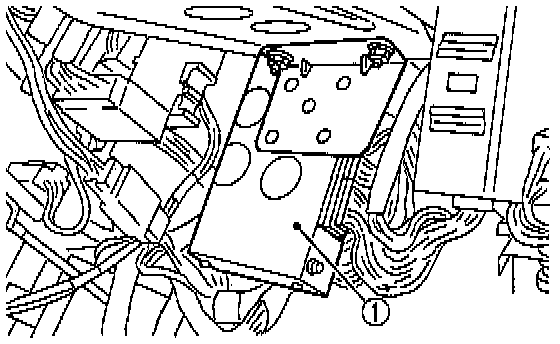

4. Disconnect connectors form TCM (1).

INSTALLATION
1. Connect connectors to TCM (1).
2. Install TCM to steering support beam.
Tightening Torque: 7.4 +/-2.0 Nm (5.4 +/-1.4 ft. lbs.).
3. Installing procedure hereafter is in the reverse order of removal.
