Rollover Valve: Description and Operation
PURPOSE

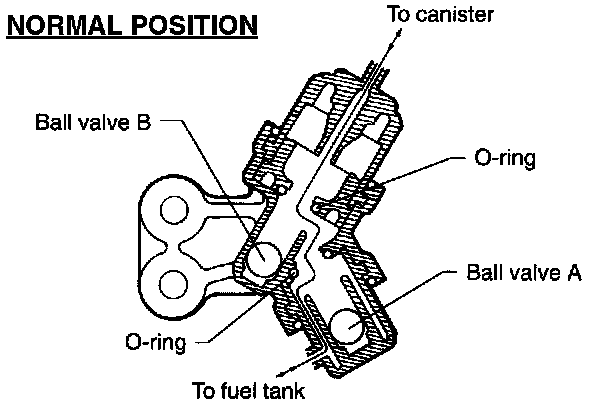

ROLL OVER VALVE

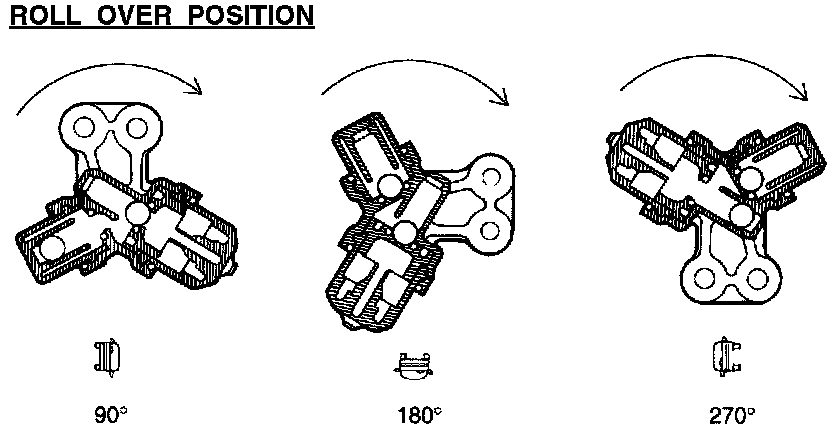

The roll over valve prevents fuel leakage in the event of the vehicle rolling over.
