Fuel Pump: Testing and Inspection

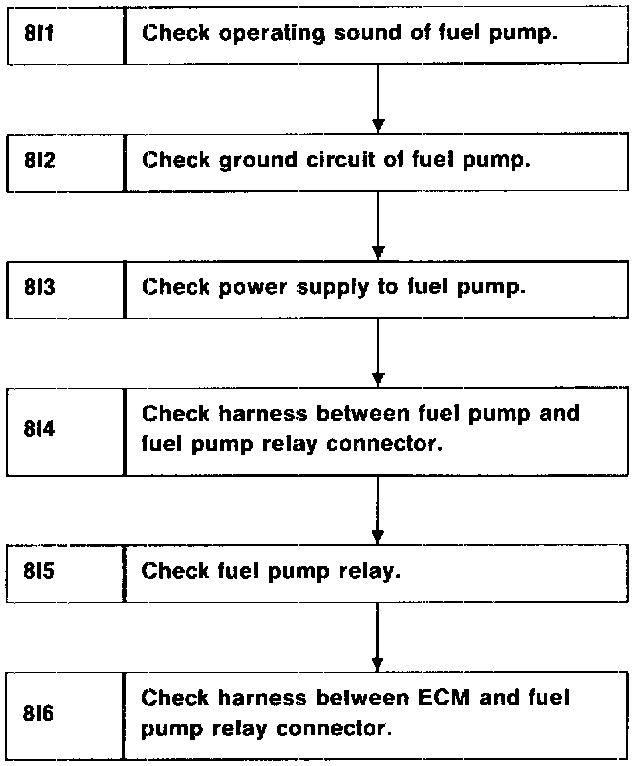

DIAGNOSTICS FOR ENGINE STARTING FAILURE: FUEL PUMP CIRCUIT (2200 cc AWD





CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

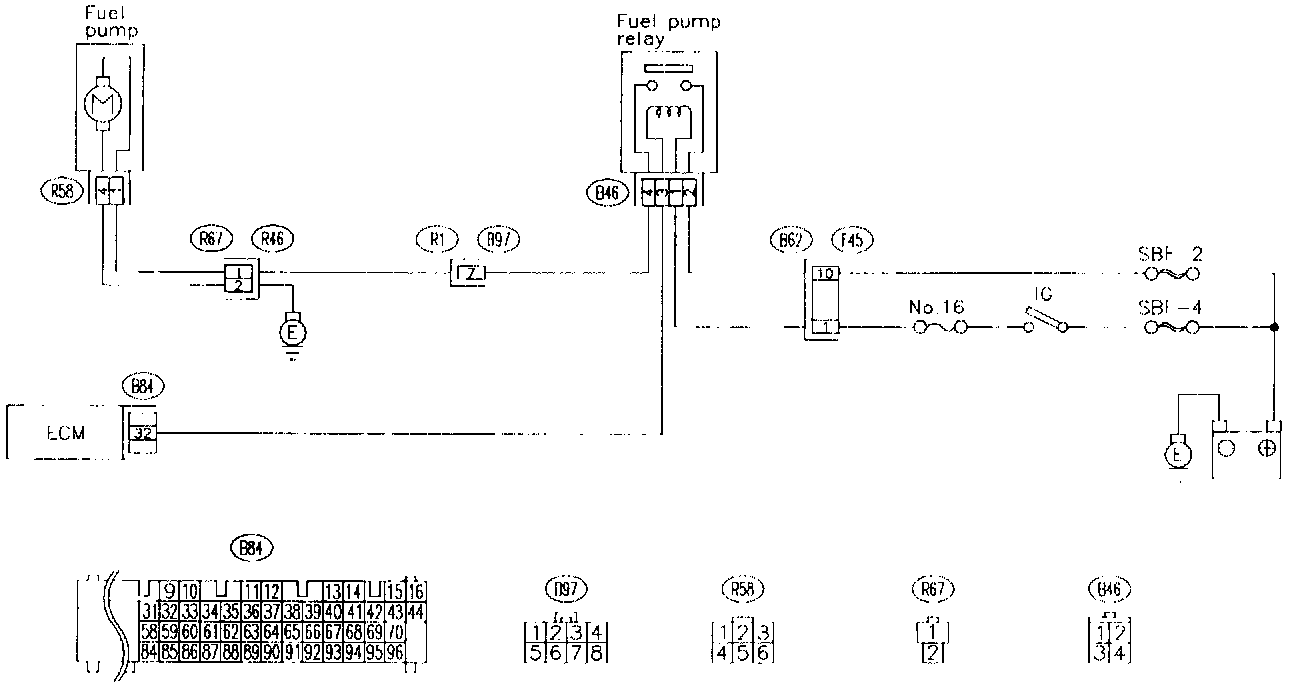

WIRING DIAGRAM

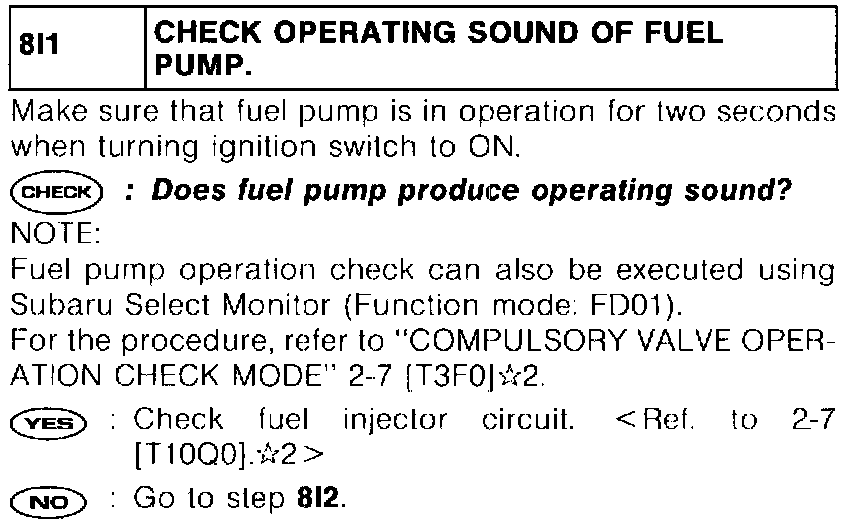

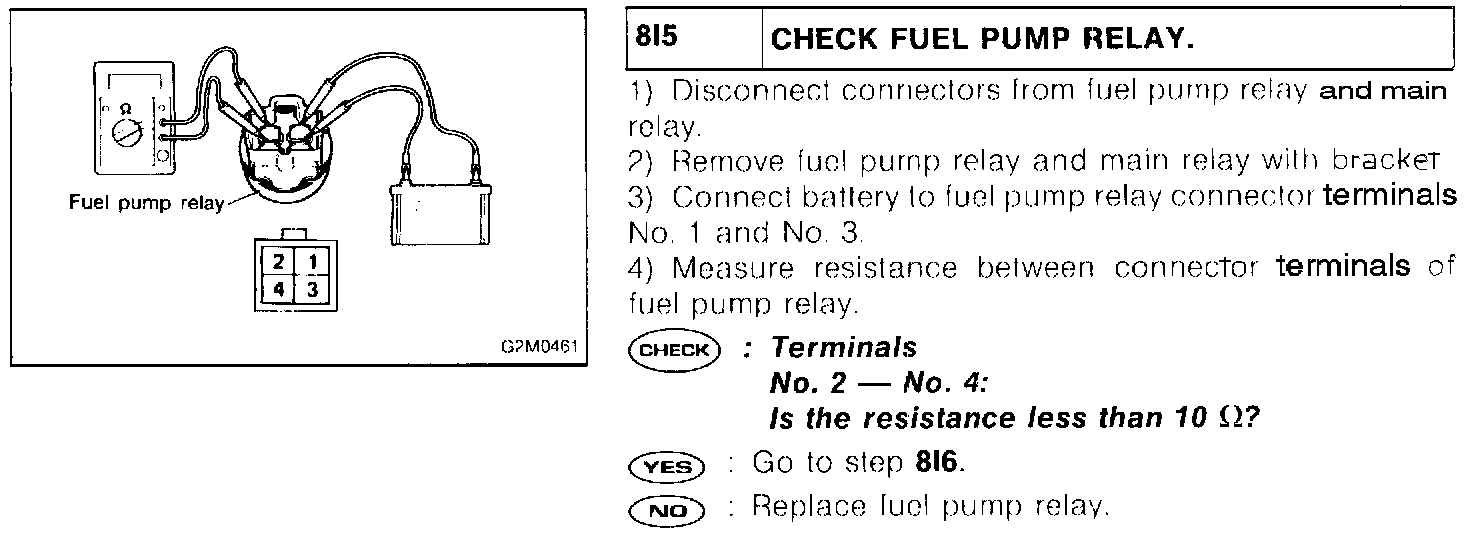

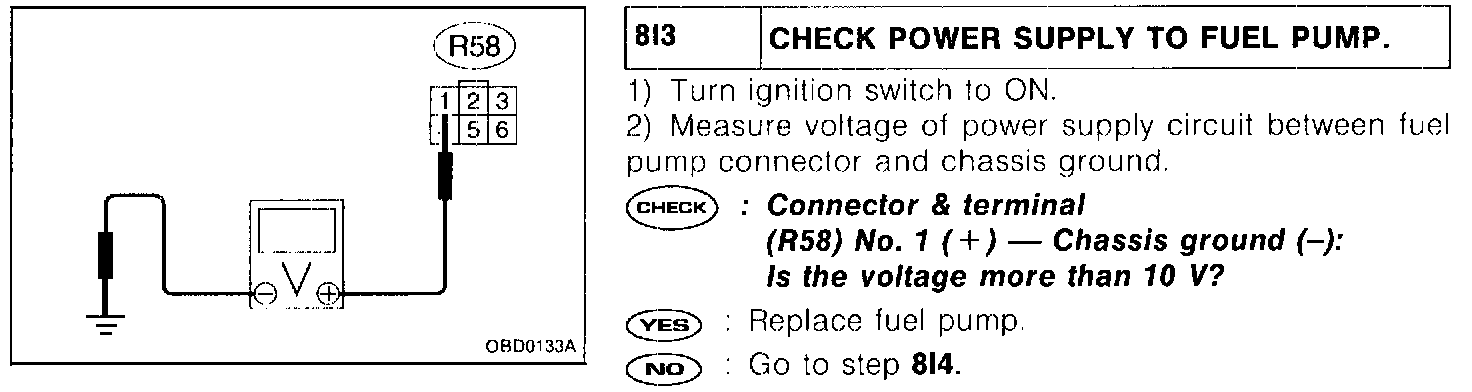

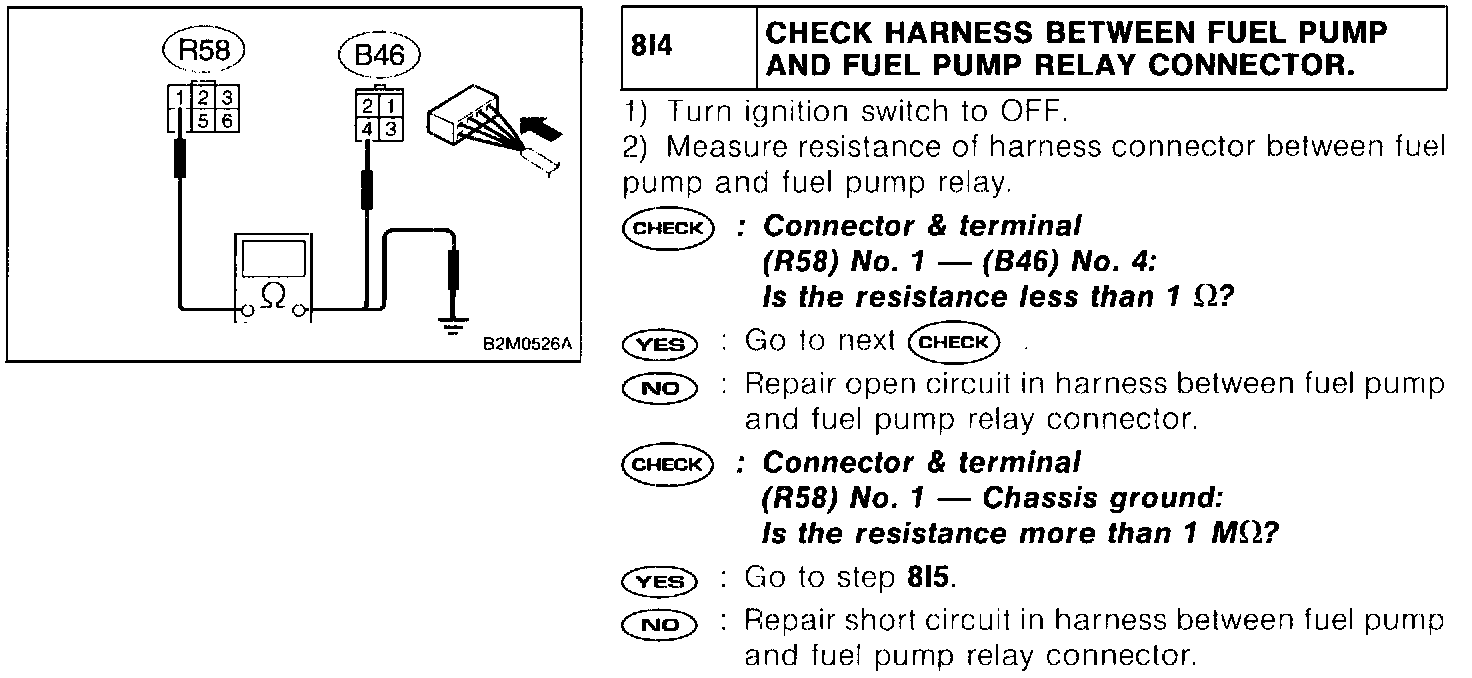

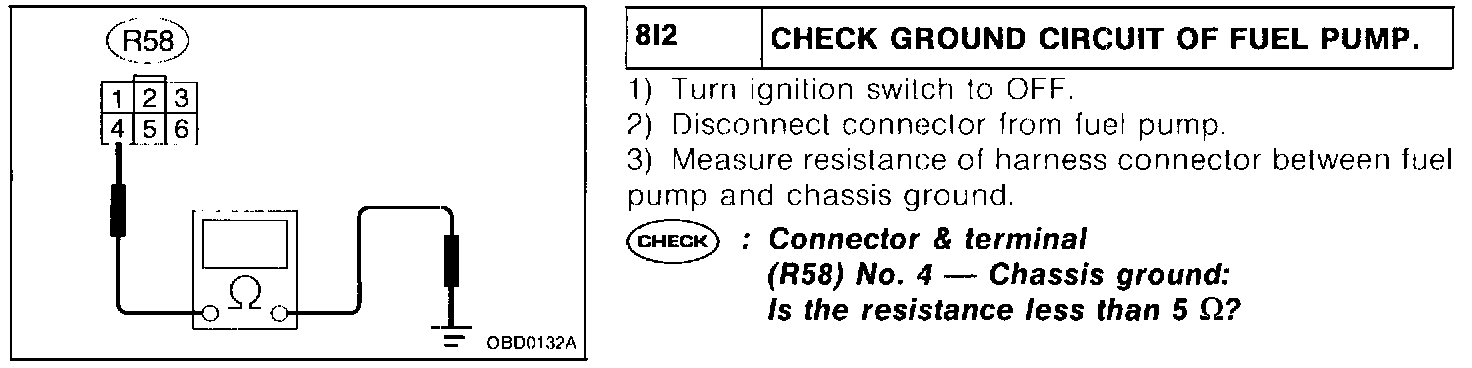

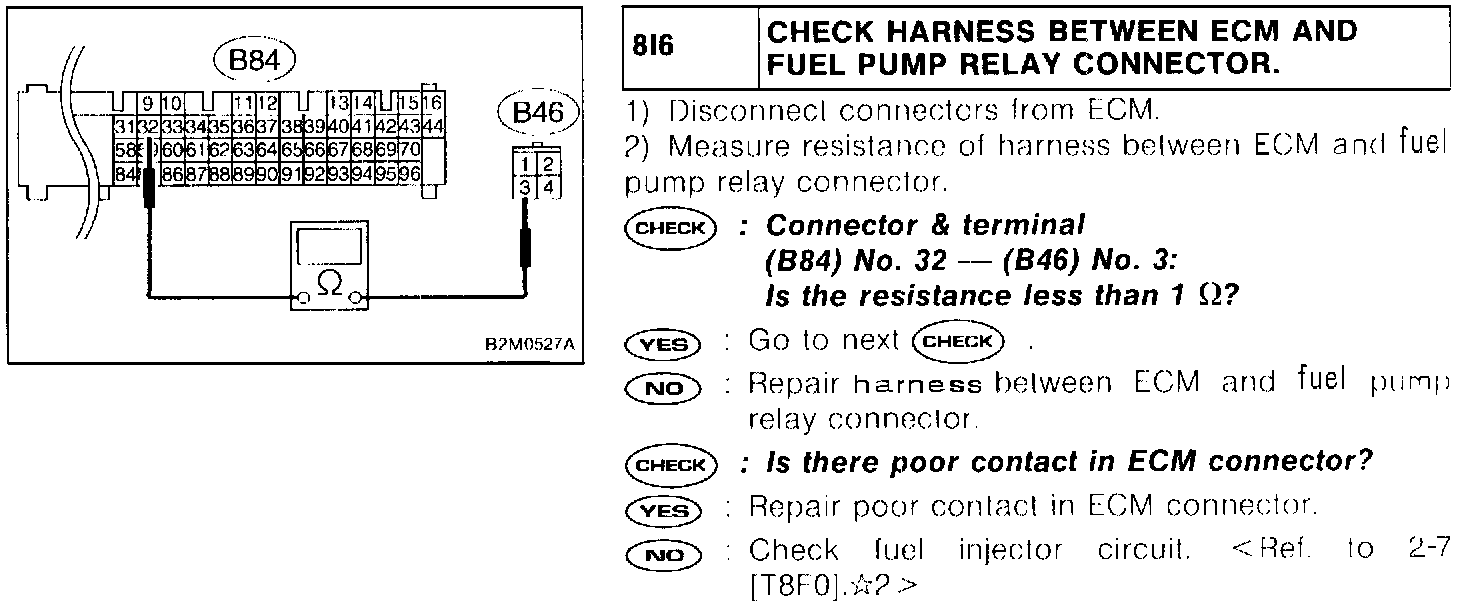

PROCEDURES
