EGR Valve: Service and Repair

EGR Valve (AT Vehicles Only):

EXHAUST GAS RECIRCULATION VALVE
REMOVAL AND INSTALLATION

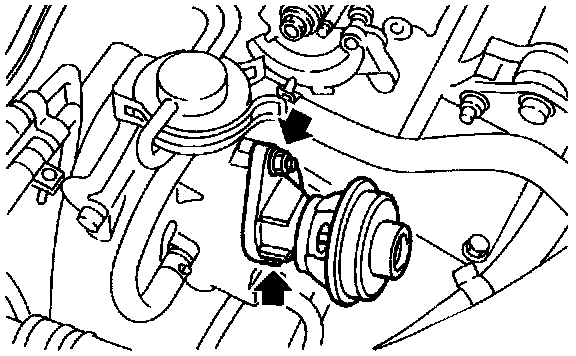

1. Disconnect vacuum hose from Exhaust Gas Recirculation (EGR) valve.
2. Remove bolts which install EGR Valve onto intake manifold.
3. Installation is in the reverse order of removal.

CAUTION: Replace gasket with a new one.

Tightening Torque: 17.1 ± 20.1 N.m (12.6 ± 14.8 ft-lb).
