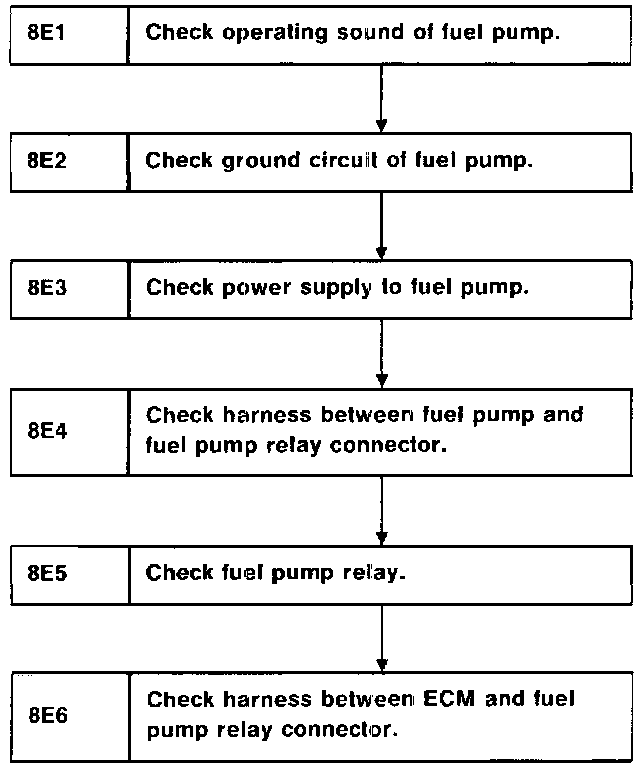

Fuel Pump & Fuel Pump Circuit Check

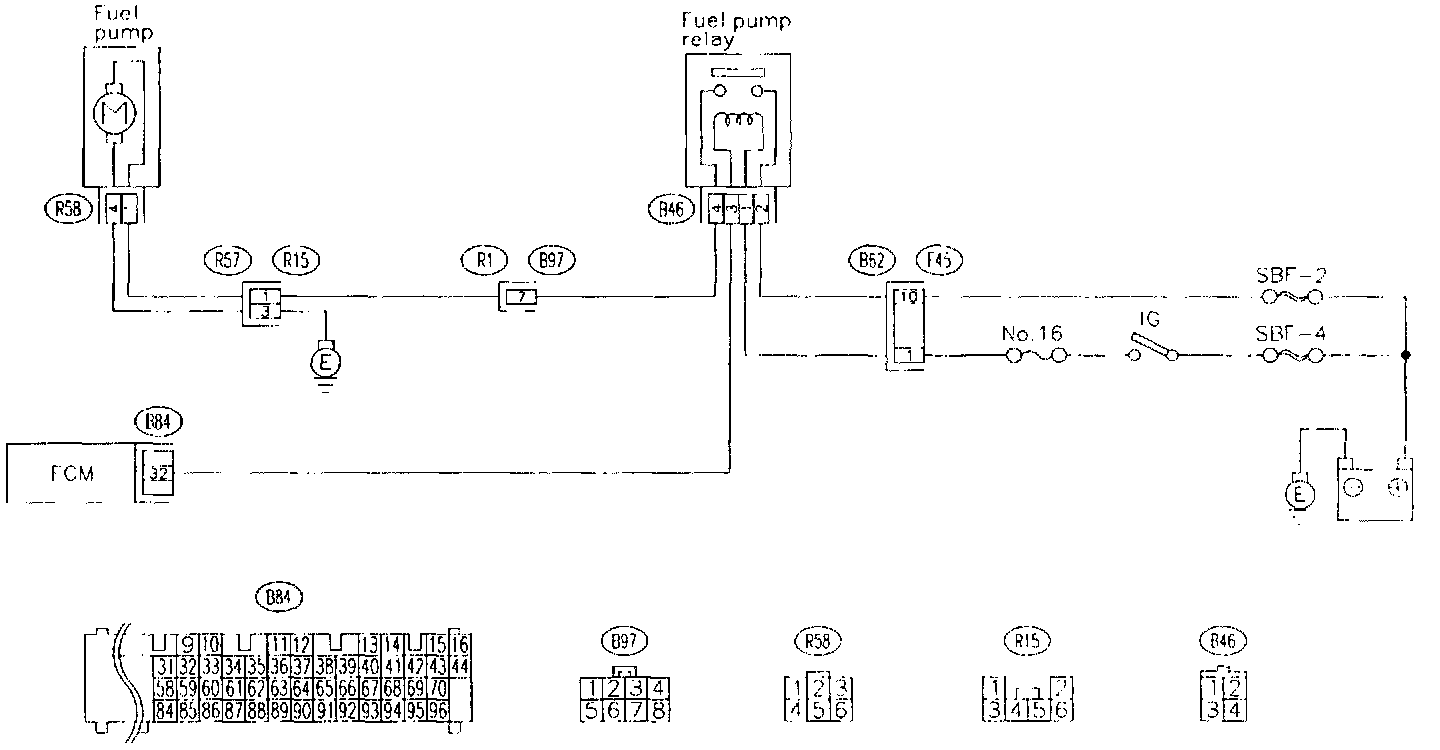

WIRING DIAGRAM



























CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
