Control Module Power Supply and Ground Line

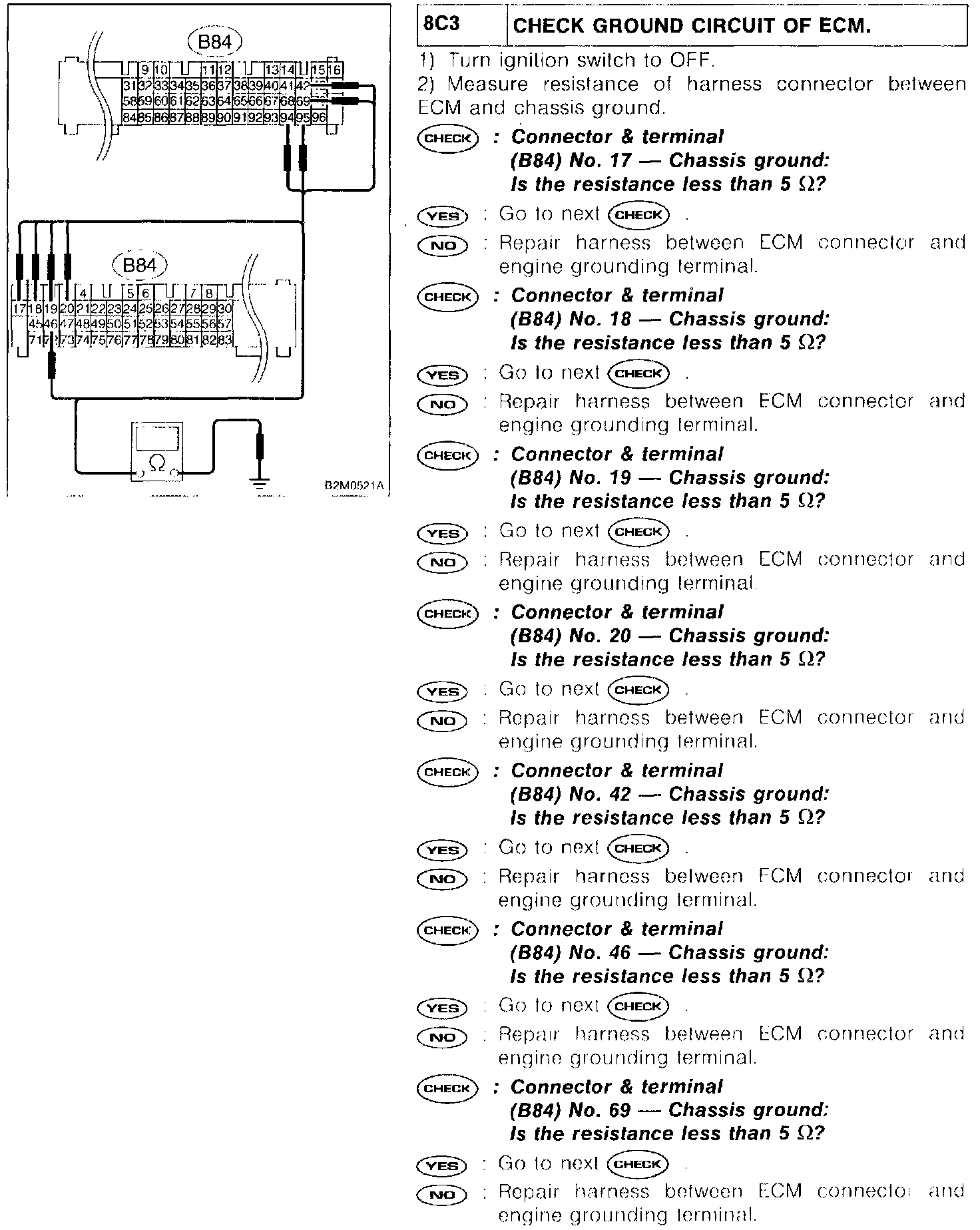

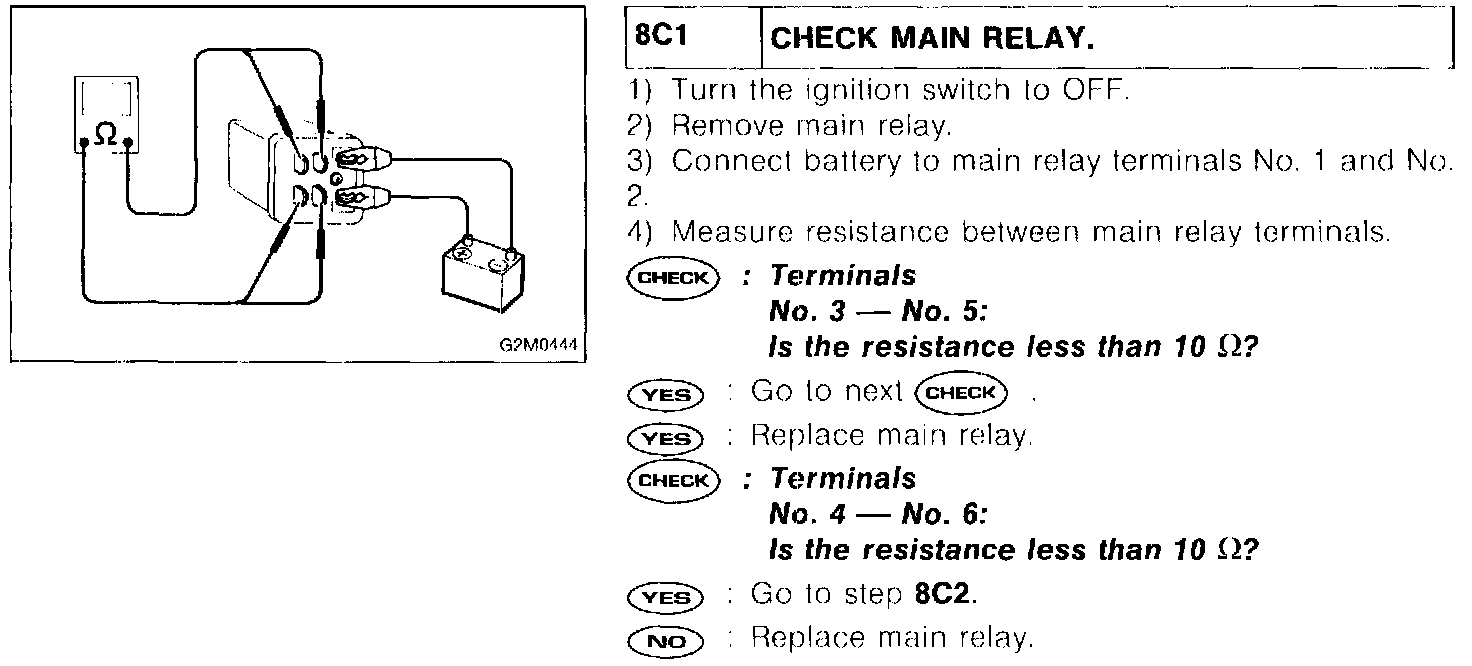

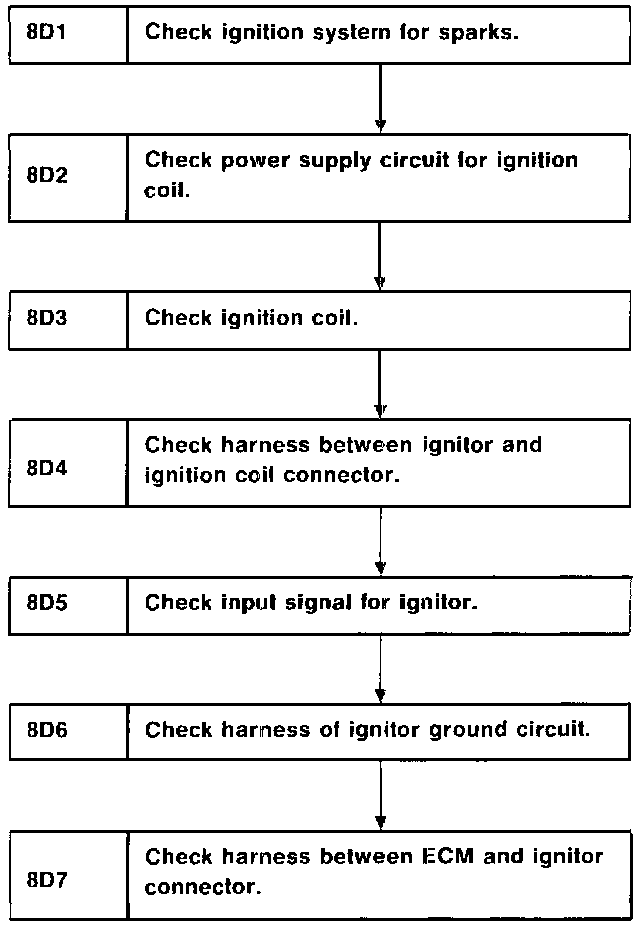

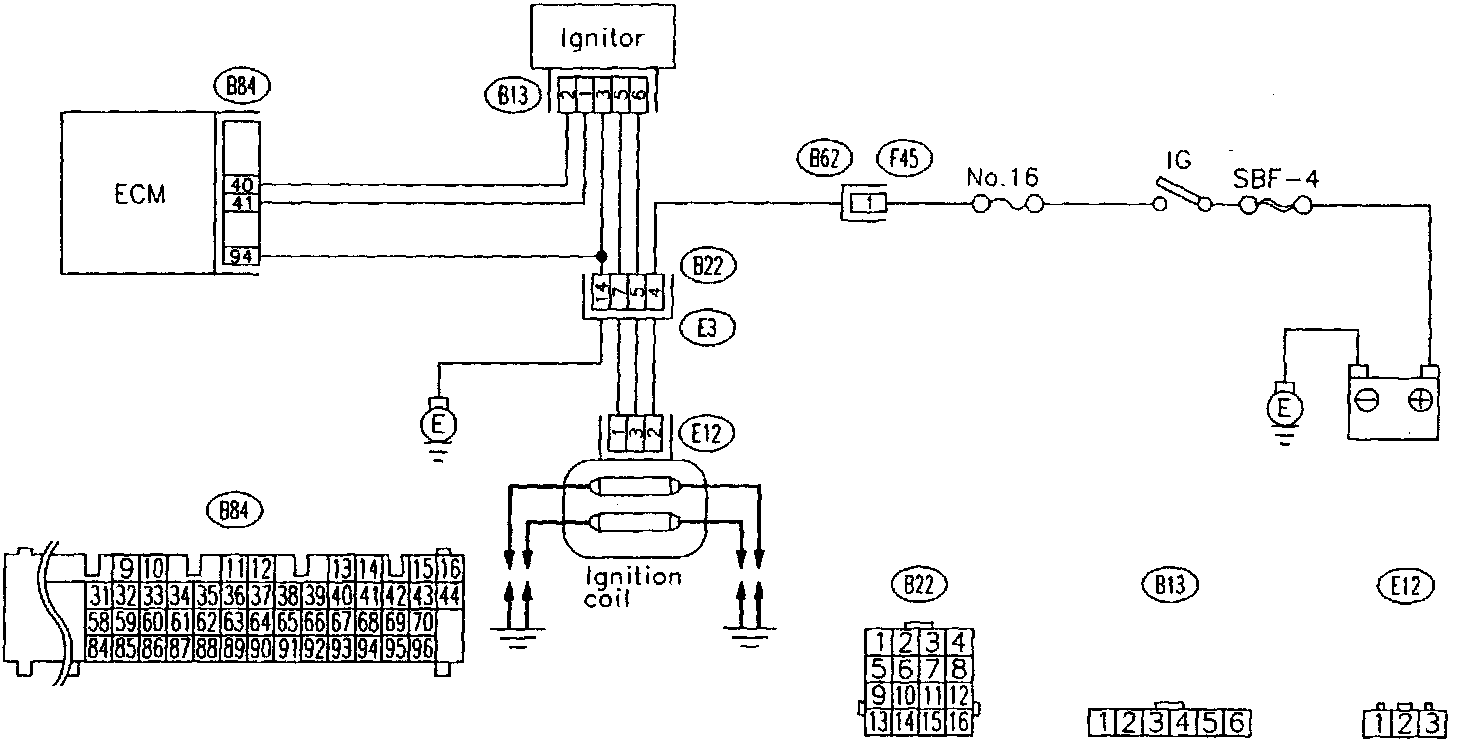

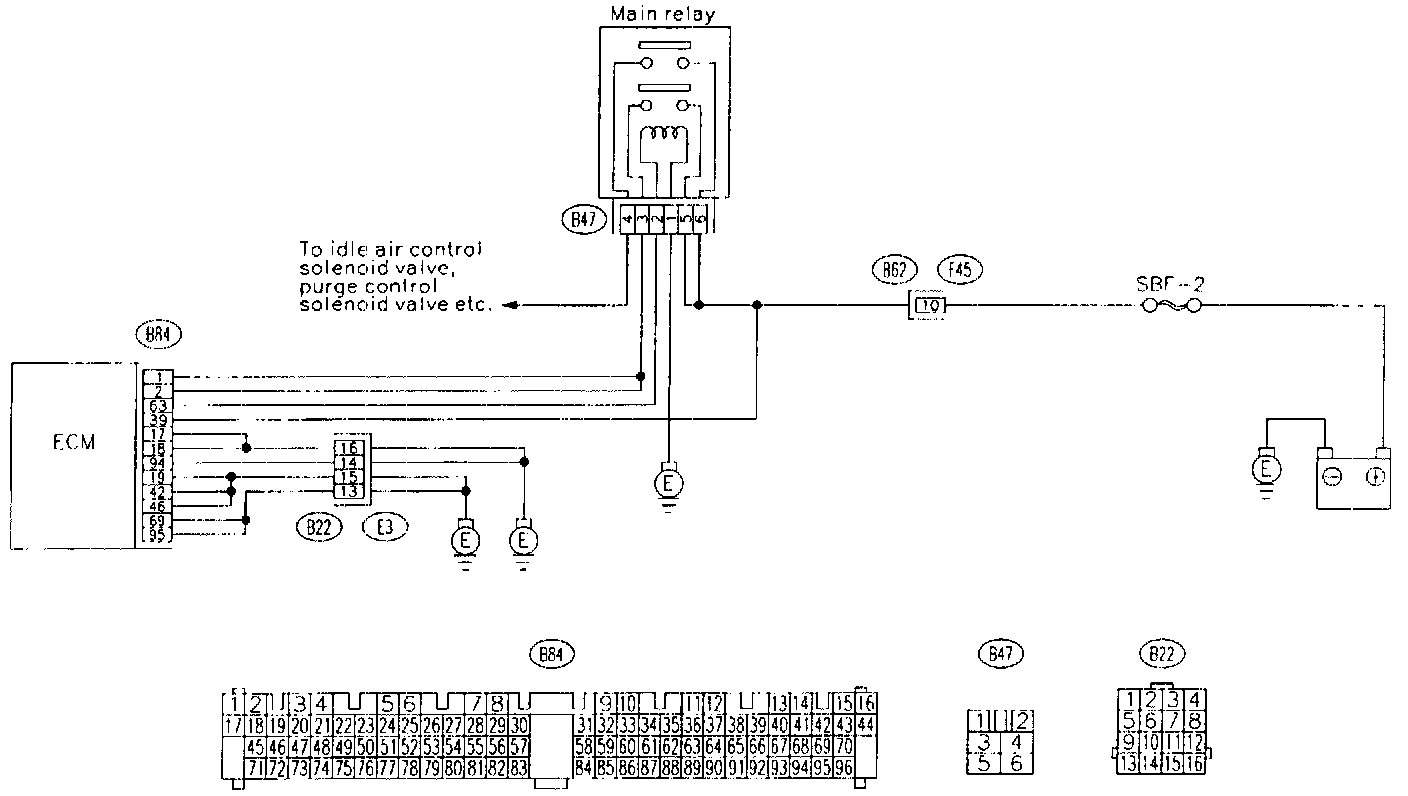

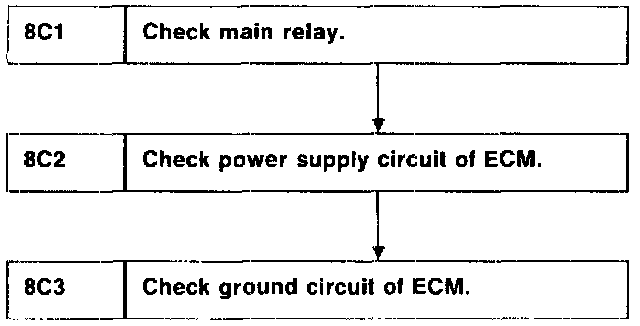

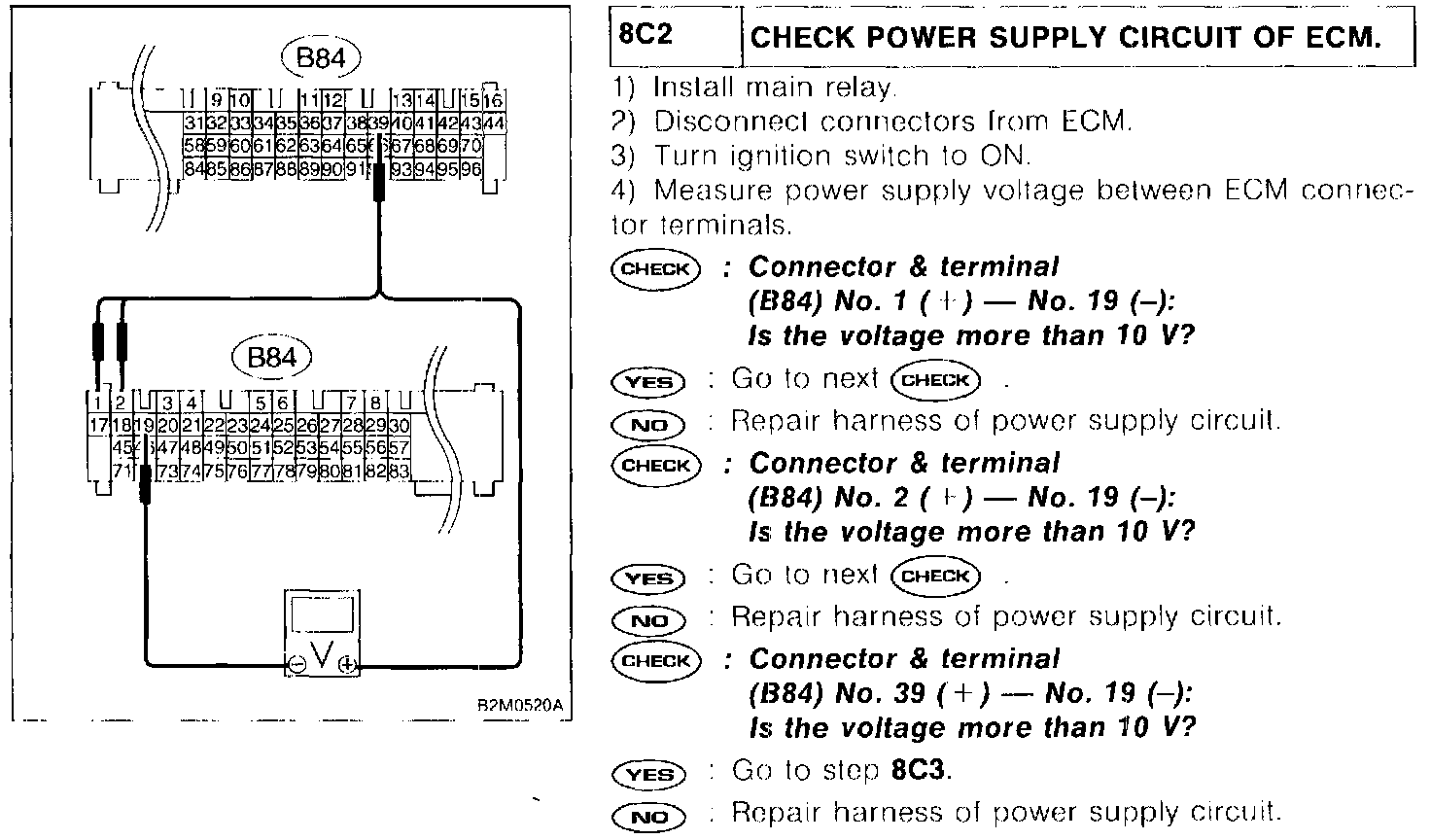

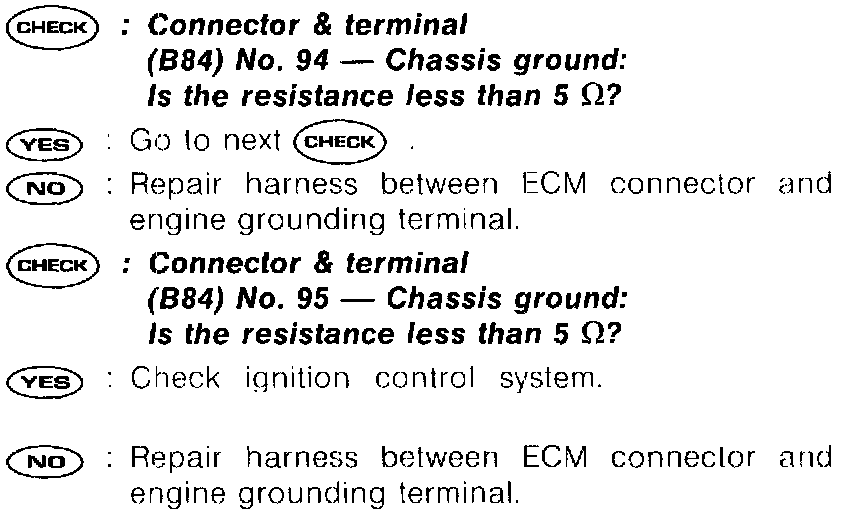

WIRING DIAGRAM
























CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
