ABS With Traction Control

DISPLAY SYSTEM

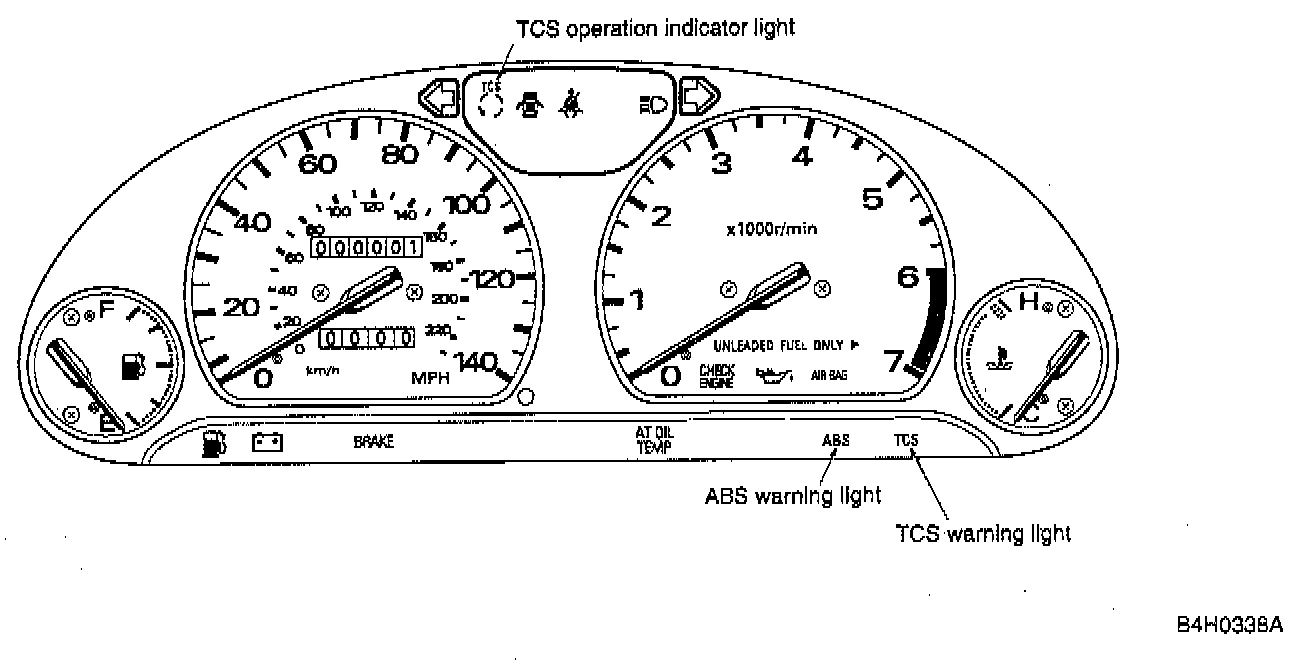

Anti-lock Brake System/Traction Control System (ABS/TCS) consists of ABS warning light, indicator lights specially for TCS conditions (failure operation, OFF), and joint malfunction indicator light (CHECK ENGINE) with EGI.

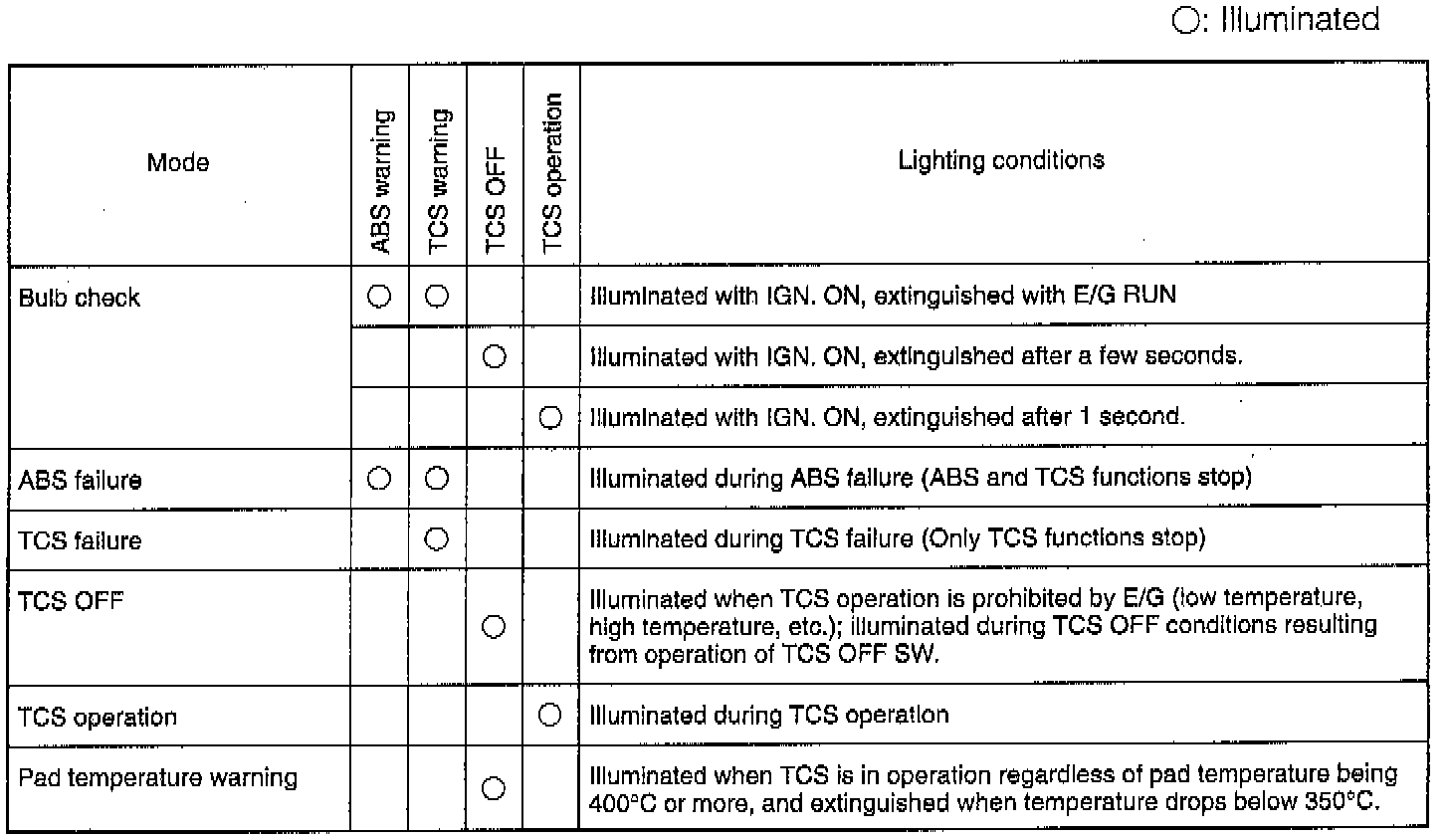

The types of display systems and lighting conditions are shown in table form.





Display System Type and Lighting Conditions
