Outback [Legacy] AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System

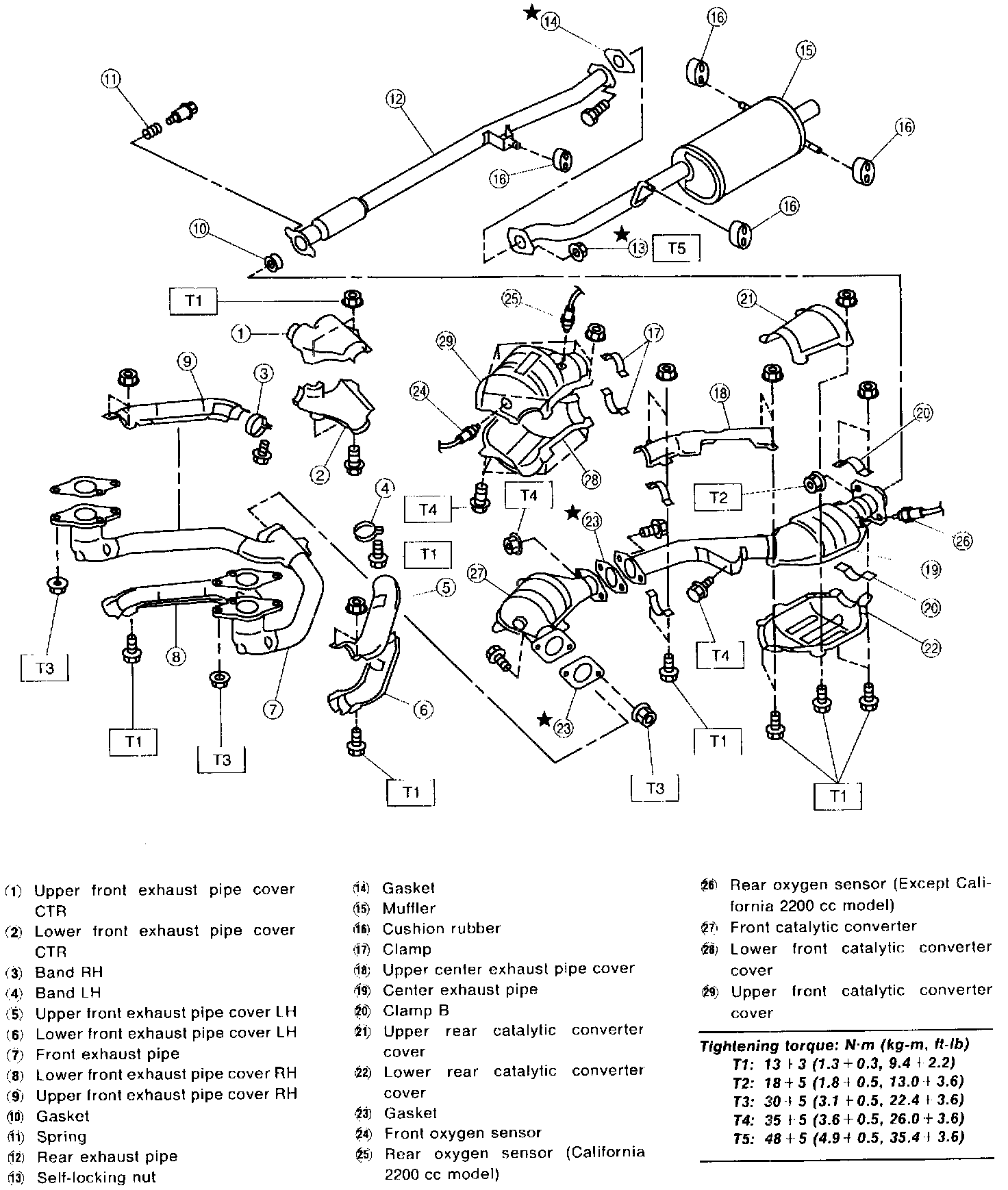

2500 cc MODEL

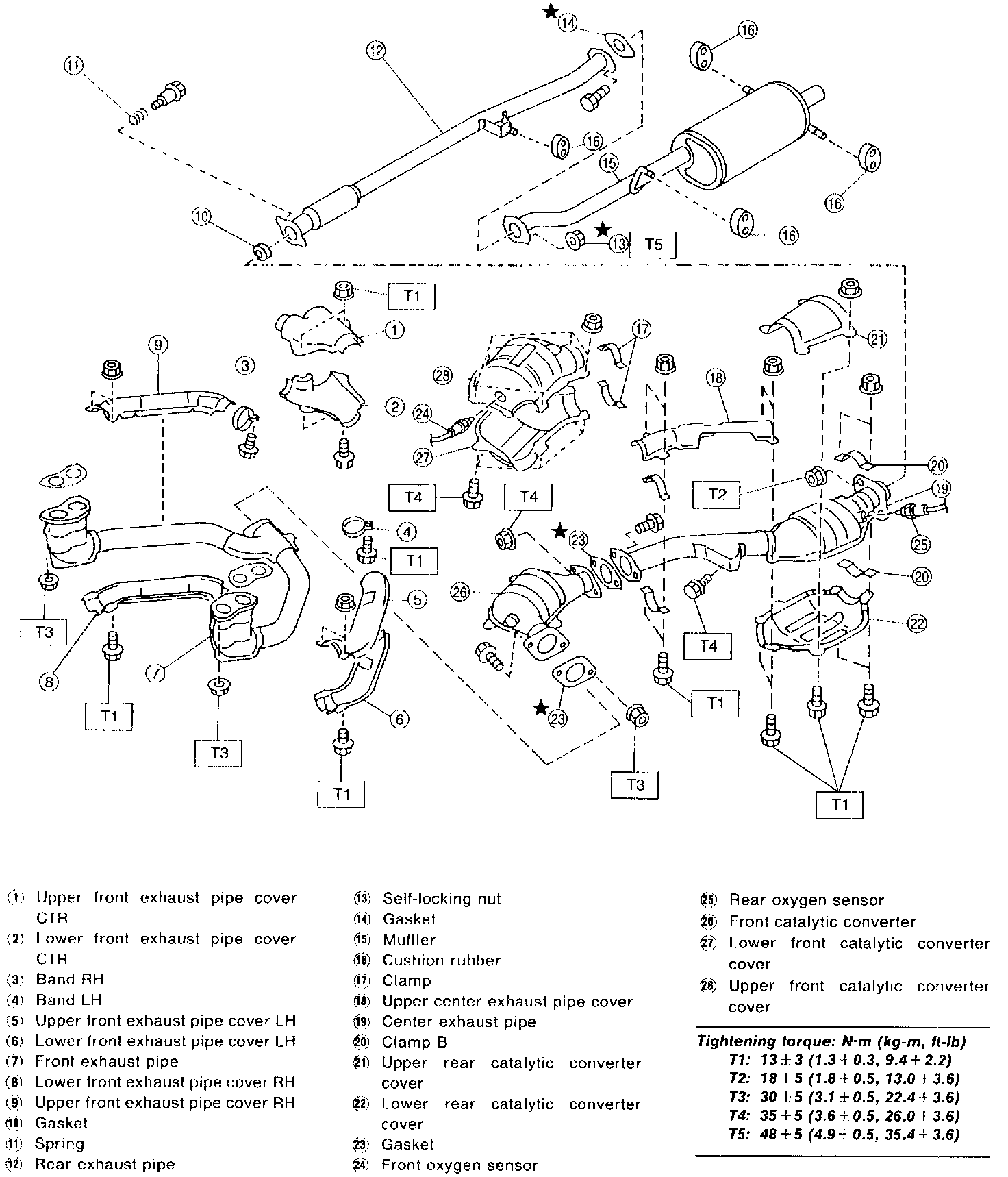

2200 cc MODEL
