Traction Control System
Traction Control System

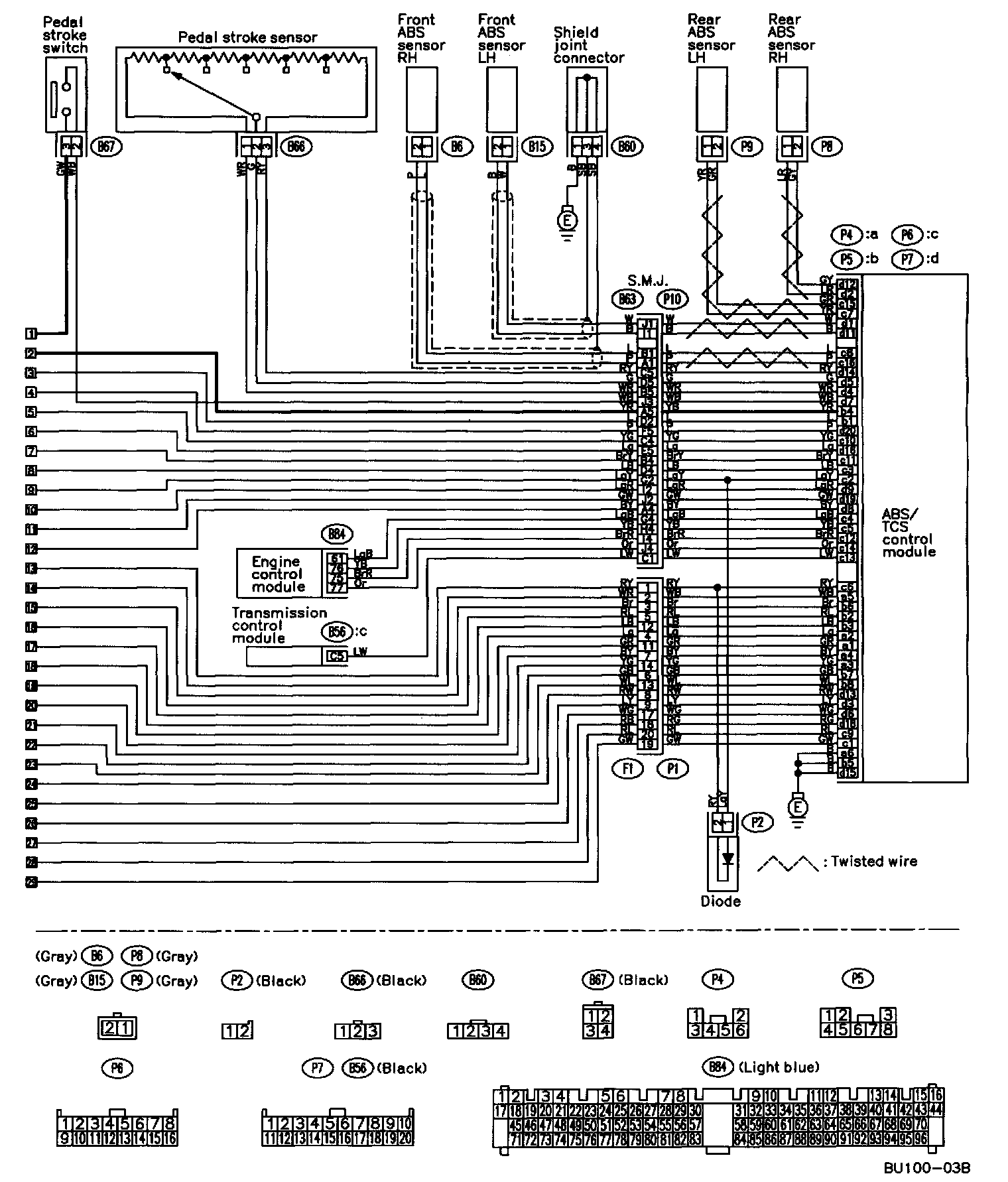

Traction Control System Circuit 1:

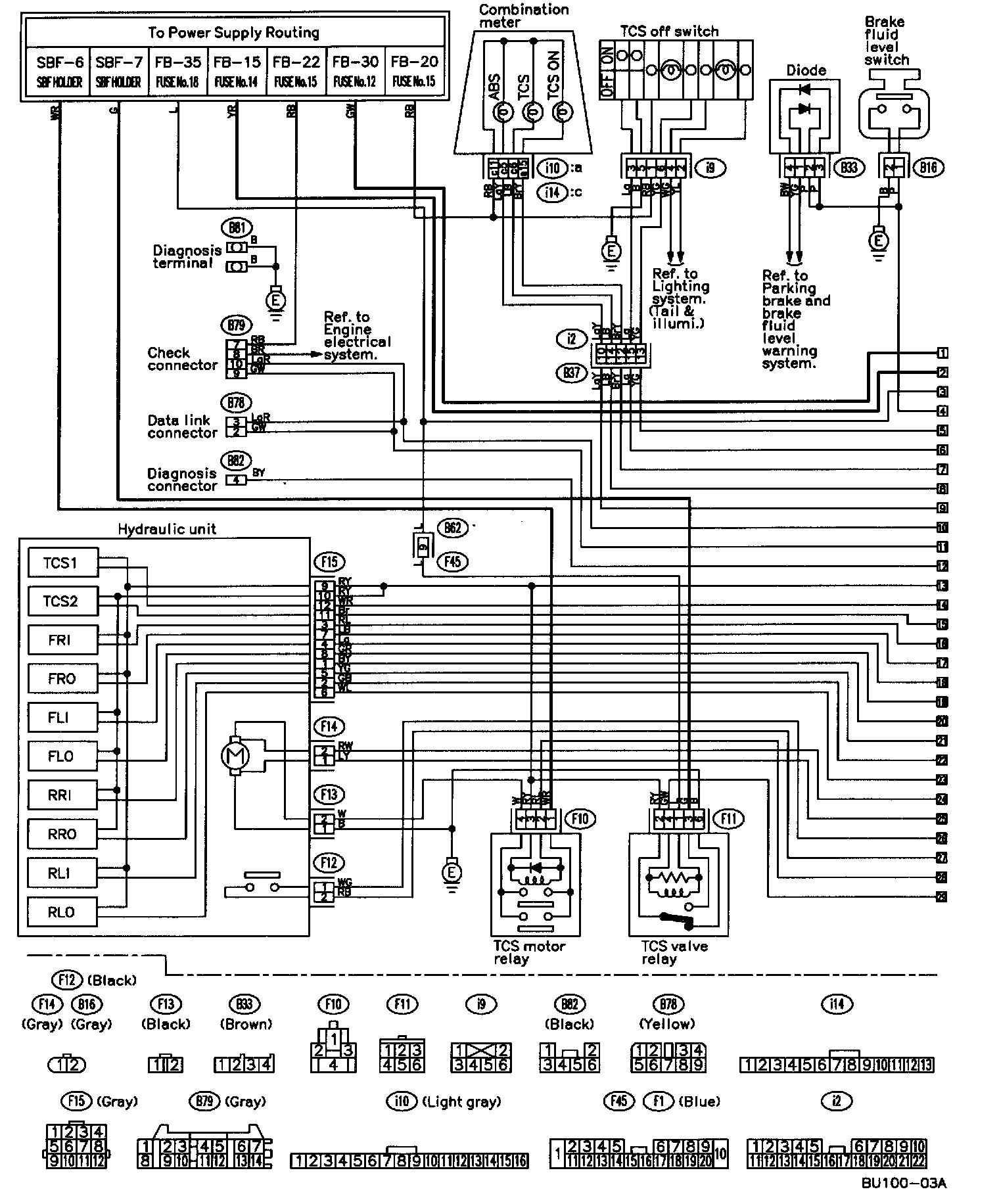

Traction Control System Circuit 2:
