Home >> Subaru >> 1997 >> Outback [Legacy] AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Engine Wiring Harness, Transmission Cord and Ground Point

Engine Wiring Harness, Transmission Cord and Ground Point

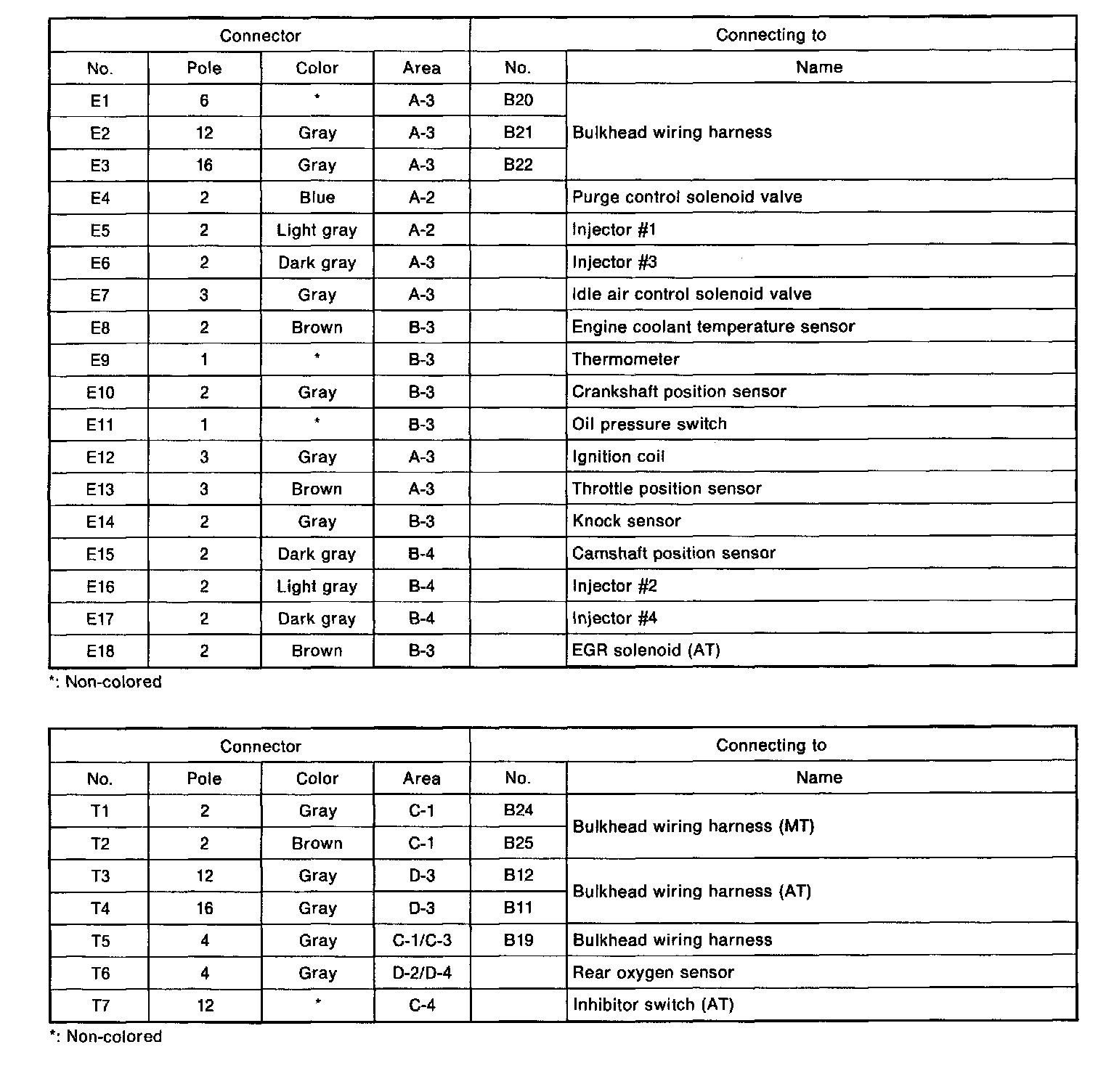

Engine Wiring Harness, Transmission Cord And Ground Point - List Of Items:

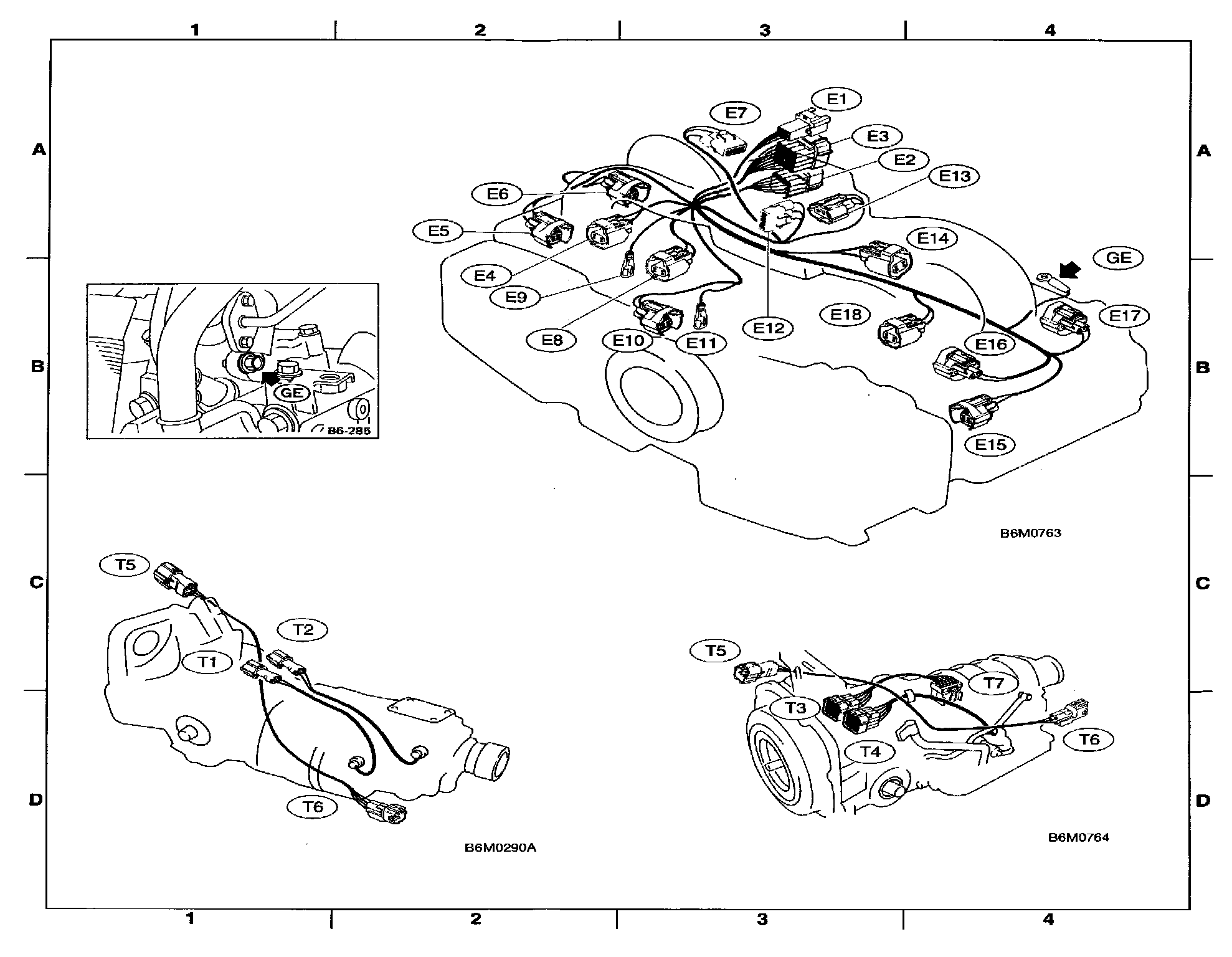

Engine Wiring Harness, Transmission Cord And Ground Point - Locations:
