Function Code F03 and F07: Rear Right Wheel Speed Signal (RR)

MODE F03 AND F07:
^ Compare speedometer with monitor indications.
^ F03: RR wheel speed is indicated in mile per hour (mile/h).
^ F07: RR wheel speed is indicated in kilometer per hour (km/h).

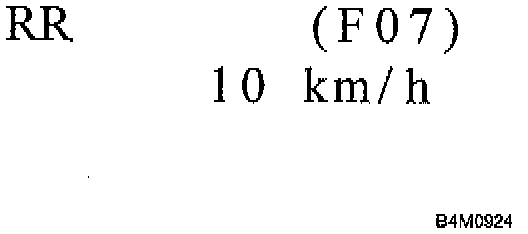

NOTE: The monitor as shown, indicates that RR wheel speed is 10 km/h.
