Function Code F01 and F05: Front Right Wheel Speed Signal (FR)

MODE F01 AND F05:
^ Compare speedometer with monitor indications.
^ F01: FR wheel speed is indicated in mile per hour (mile/h).
^ F05: FR wheel speed is indicated in kilometer per hour (km/h).

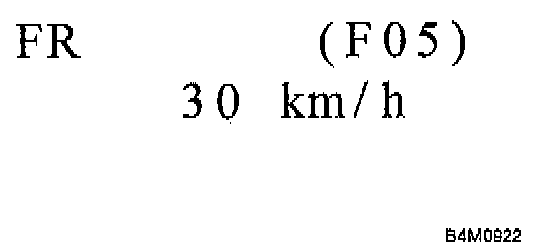

NOTE: The monitor as shown, indicates that FR wheel speed is 30 km/h.
