TCS Lights Work Properly, While ABS Warning Light Does Not

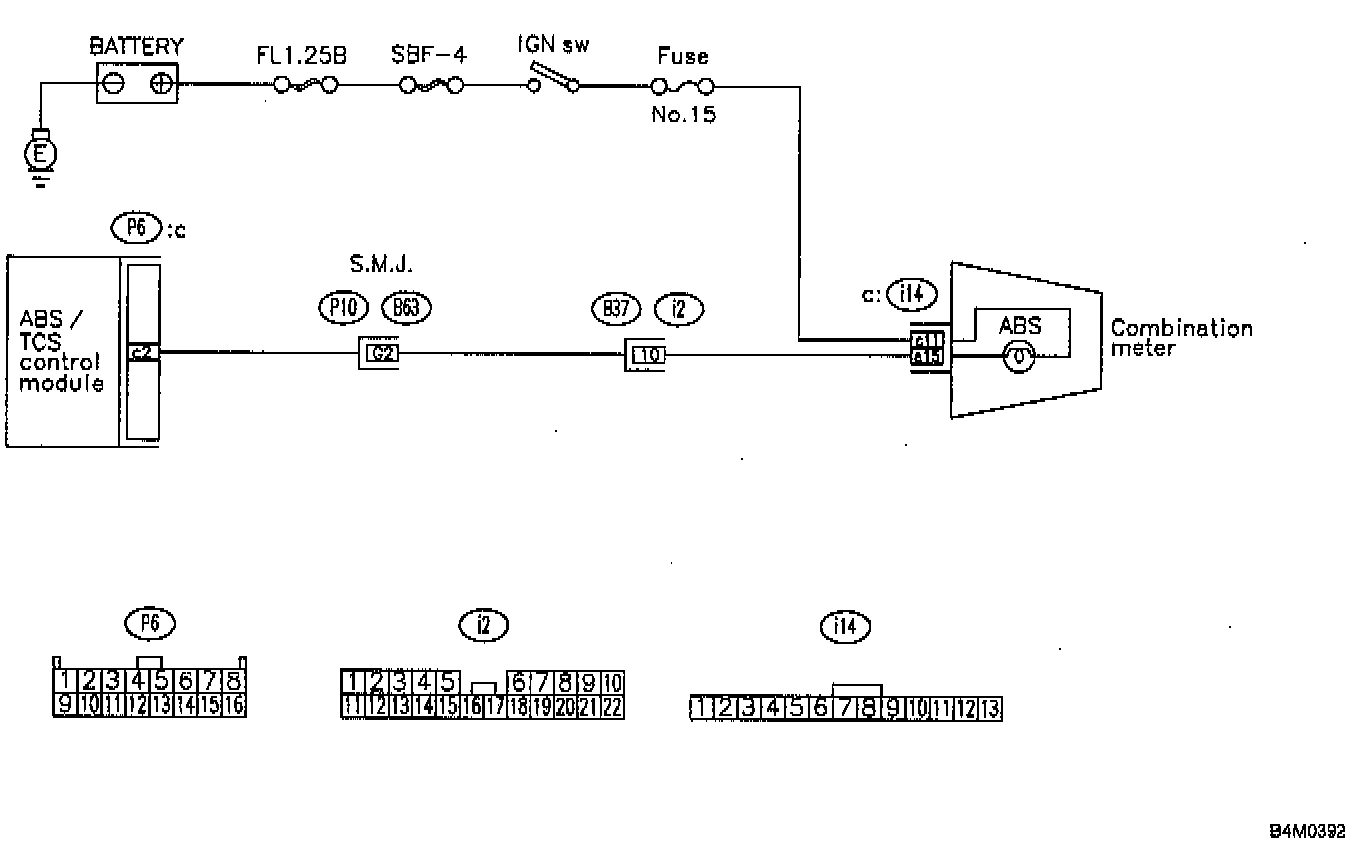

Check harness connector between ABS/Traction Control System (TCS) control module and abs warning light as follows:
1. Turn ignition switch OFF.
2. Disconnect connector from ABS/TCS control module and TCS valve relay.

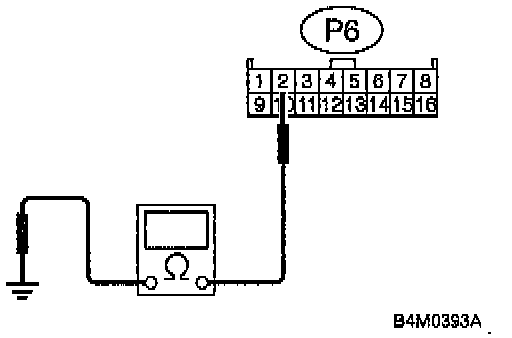

3. Measure resistance between ABS/TCS control module connector (P6) terminal 2 and body. Resistance should be 1 M ohm.
