Test 7A8

TEST 7A8: GROUND HARNESS CHECK

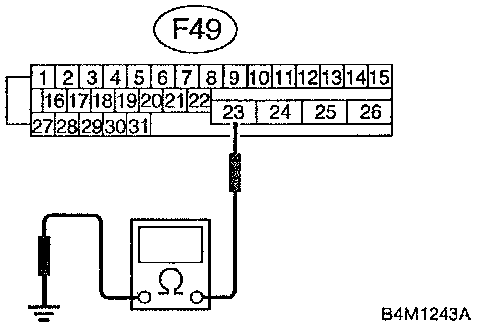

Measure resistance between ABS Control Module (ABSCM)/Hydraulic Unit (H/U) terminal (F49) terminal 23 and chassis ground. Is the resistance less than 0.5 ohms?
YES: Test 7A9
NO: Repair ABSCM and H/U ground harness.
