Test 7A6
TEST 7A6: ABS WARNING LIGHT HARNESS BATTERY SHORT CHECK1. Turn ignition switch to OFF.

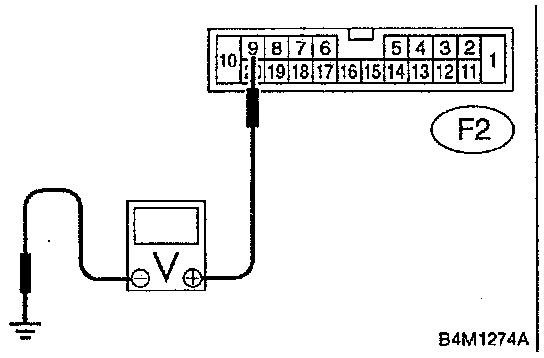

2. Measure voltage between connector (F2) terminal 9 and chassis ground. Is the voltage less than 3 Volts?
YES: Test 7A7
NO: Repair wiring harness.
1. Turn ignition switch to OFF.
2. Measure voltage between connector (F2) terminal 9 and chassis ground. Is the voltage less than 3 Volts?
YES: Test 7A7
NO: Repair wiring harness.
