P1702
DTC P1702: AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL CIRCUIT LOW INPUT
SUBARU SELECT MONITOR DISPLAY
DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.

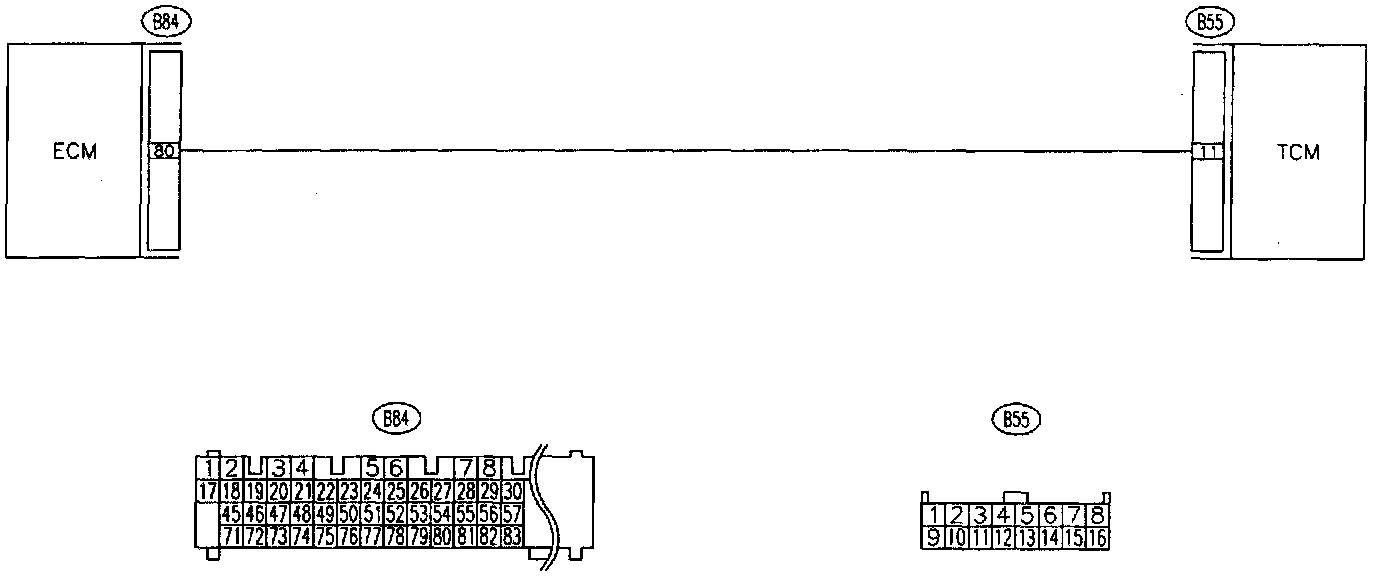

WIRING DIAGRAM (LHD)

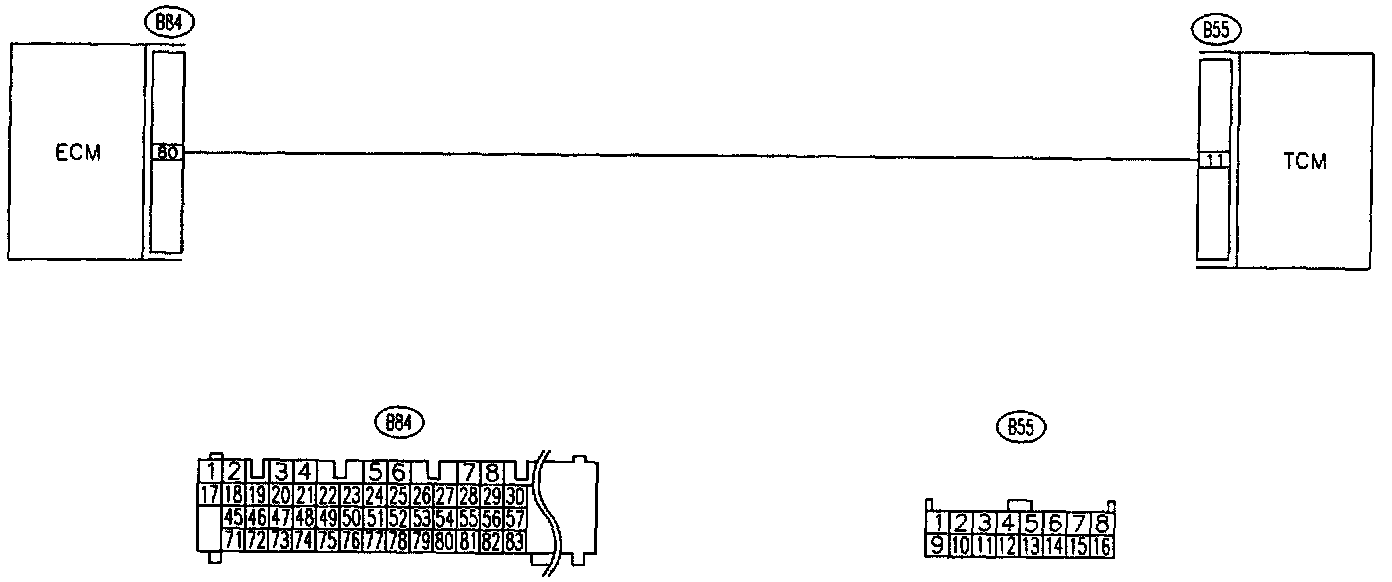

WIRING DIAGRAM (RHD)

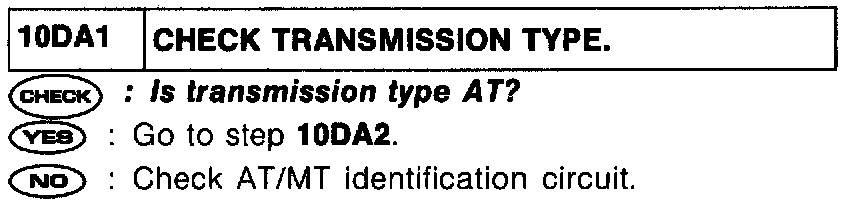

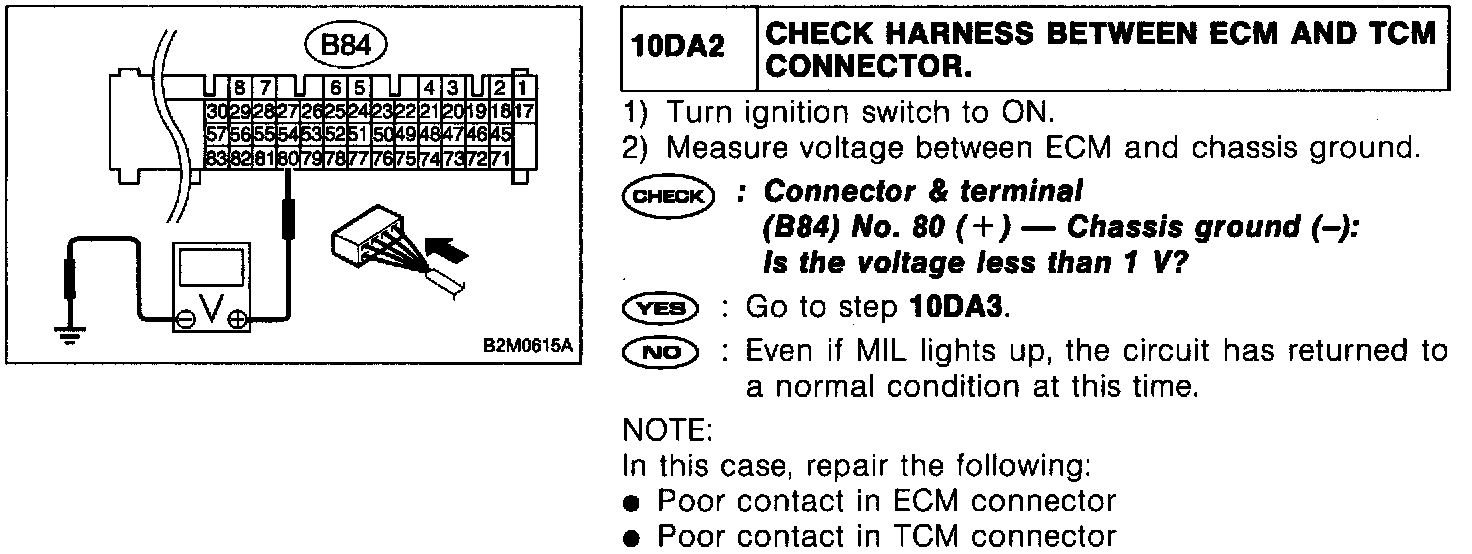

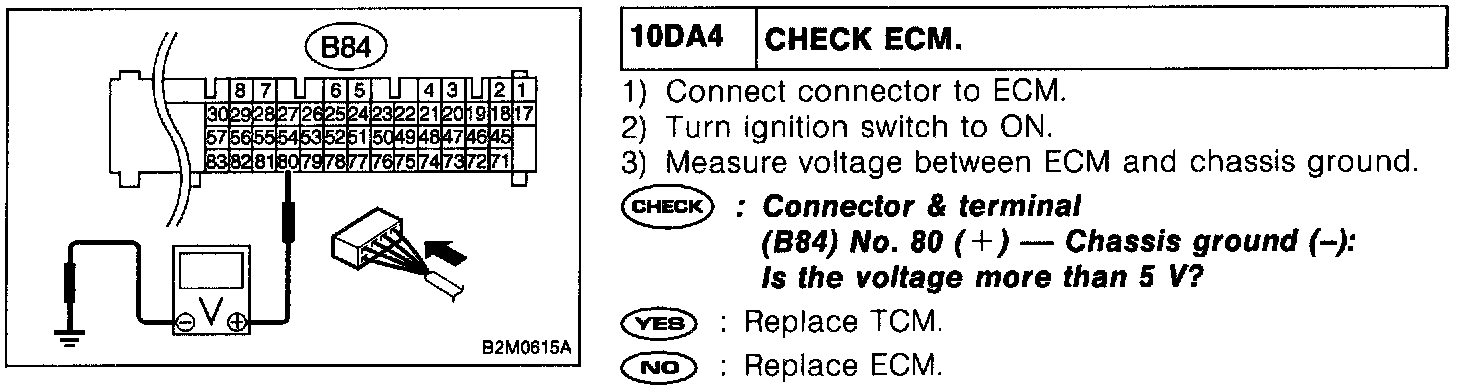

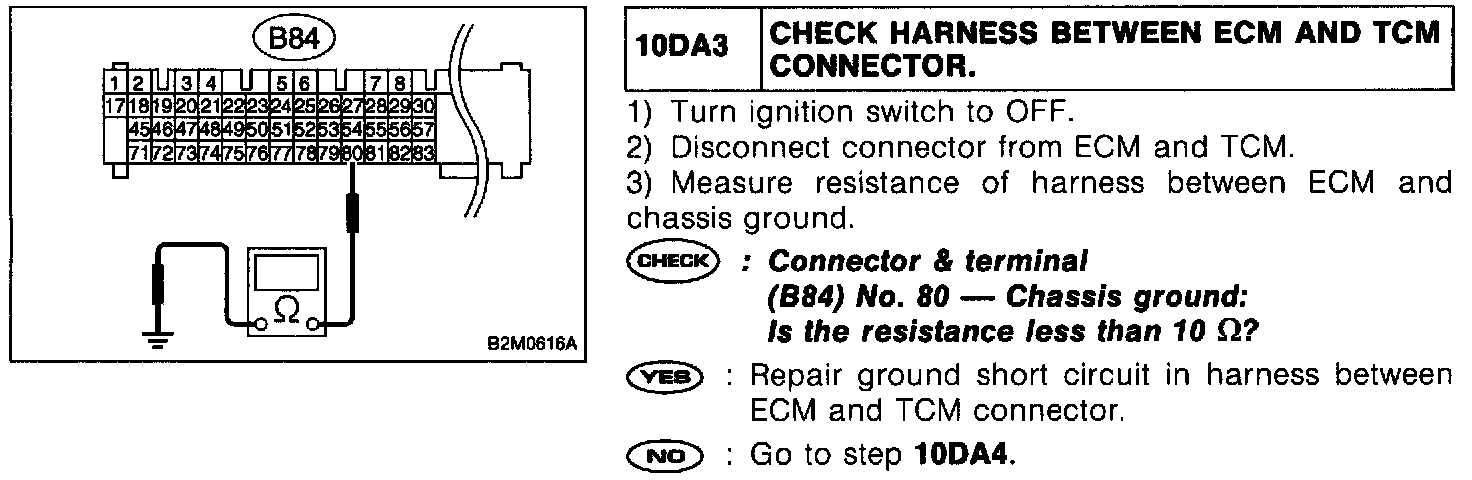

PROCEDURES
