P1500

DTC P1500: RADIATOR FAN RELAY 1 CIRCUIT LOW INPUT

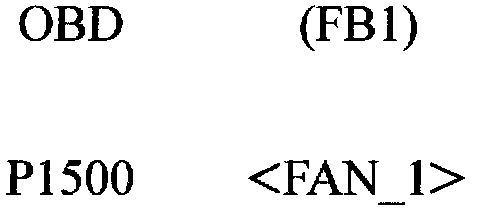

SUBARU SELECT MONITOR DISPLAY

DTC DETECTING CONDITION:
- Two consecutive trips with fault

TROUBLE SYMPTOM:
- Radiator tan does not operate properly.
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODE.

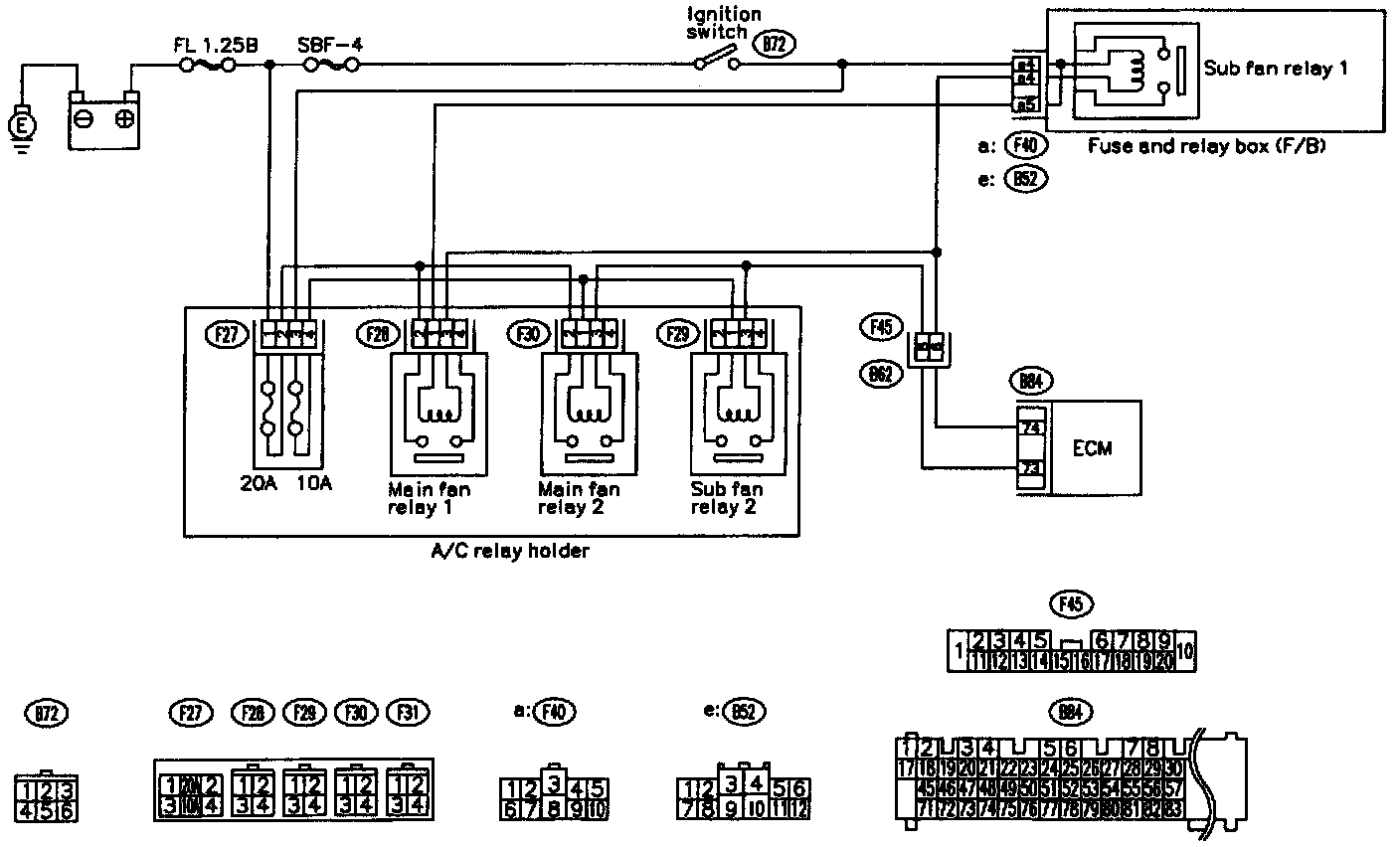

WIRING DIAGRAM (LHD)

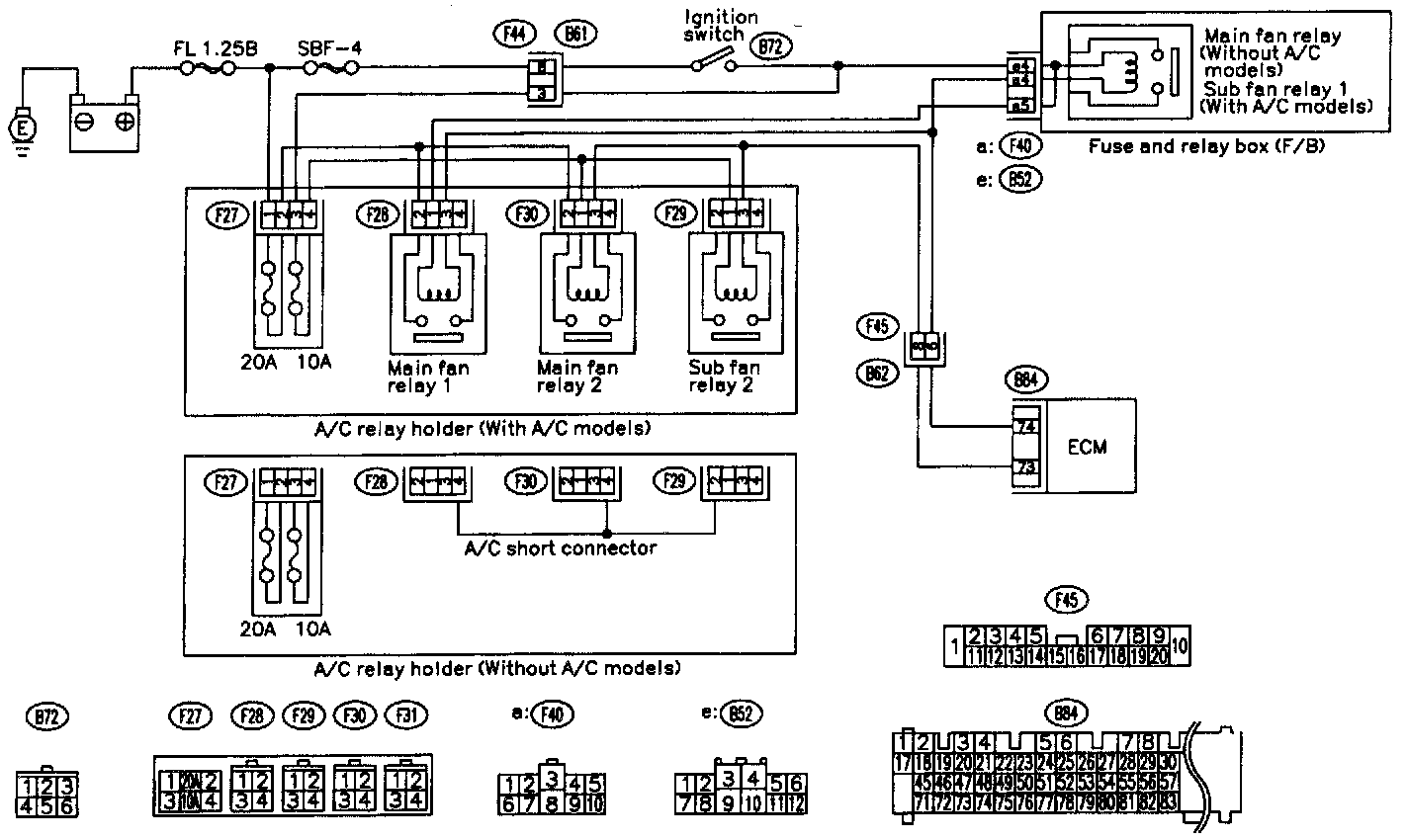

WIRING DIAGRAM (RHD)

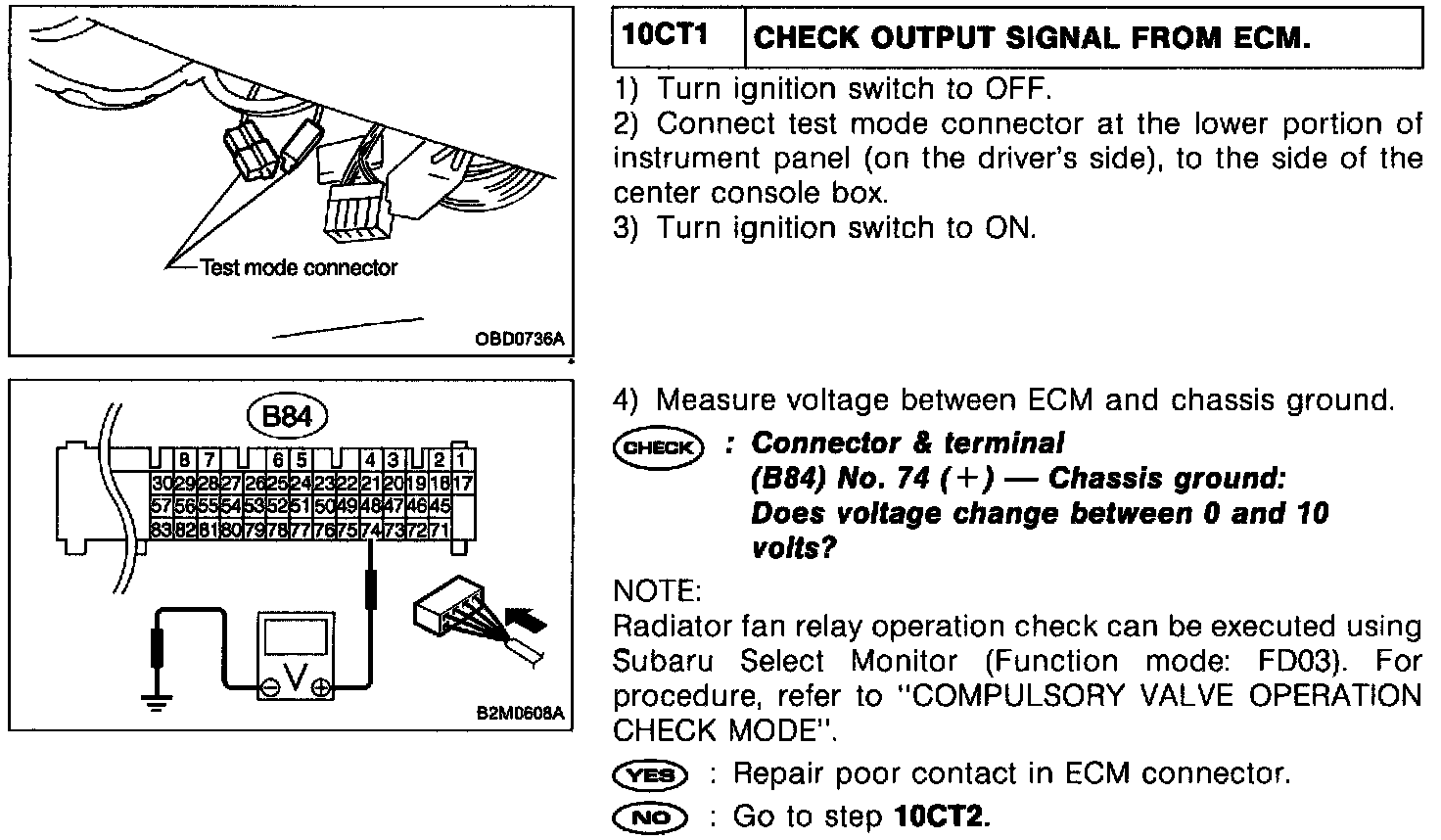

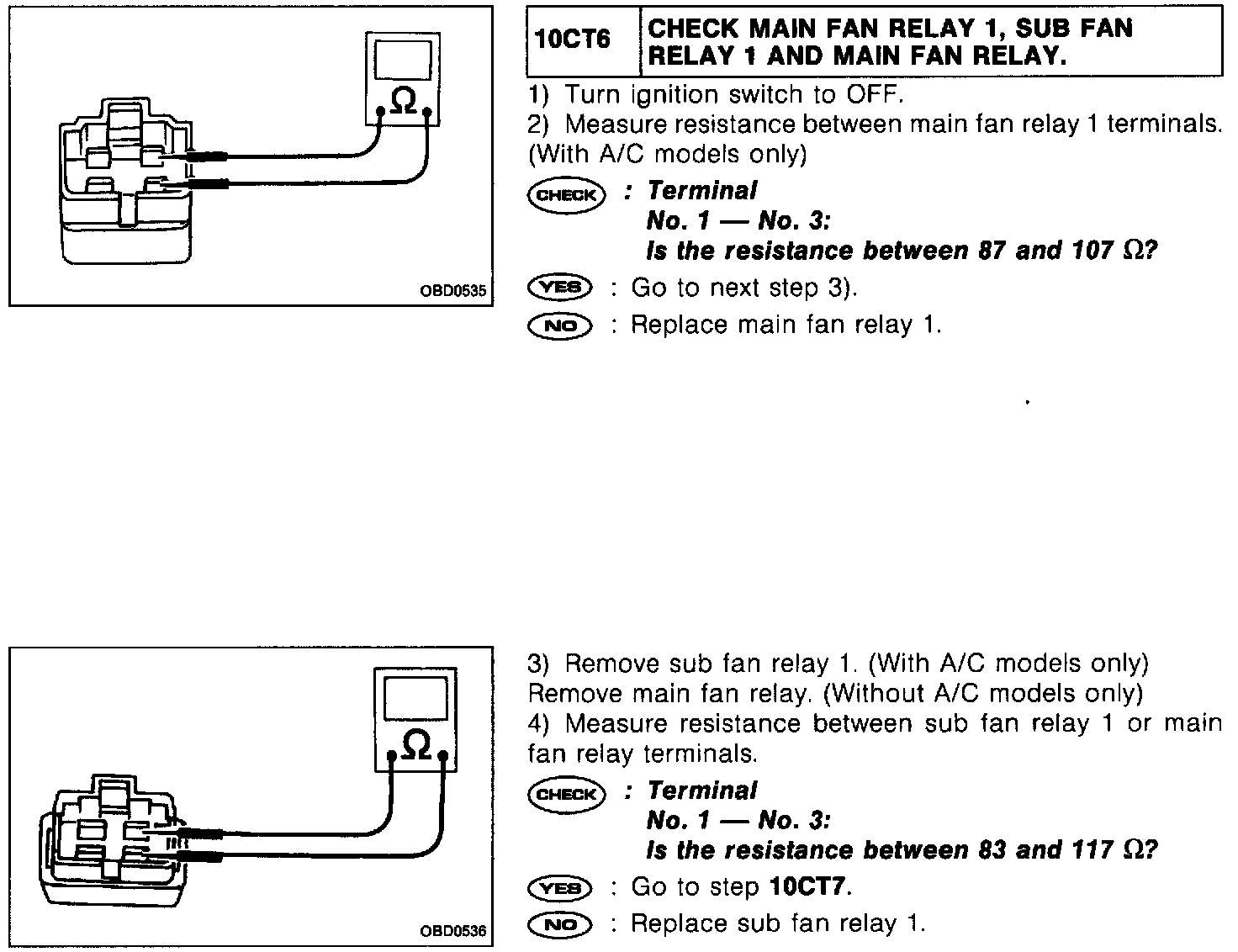

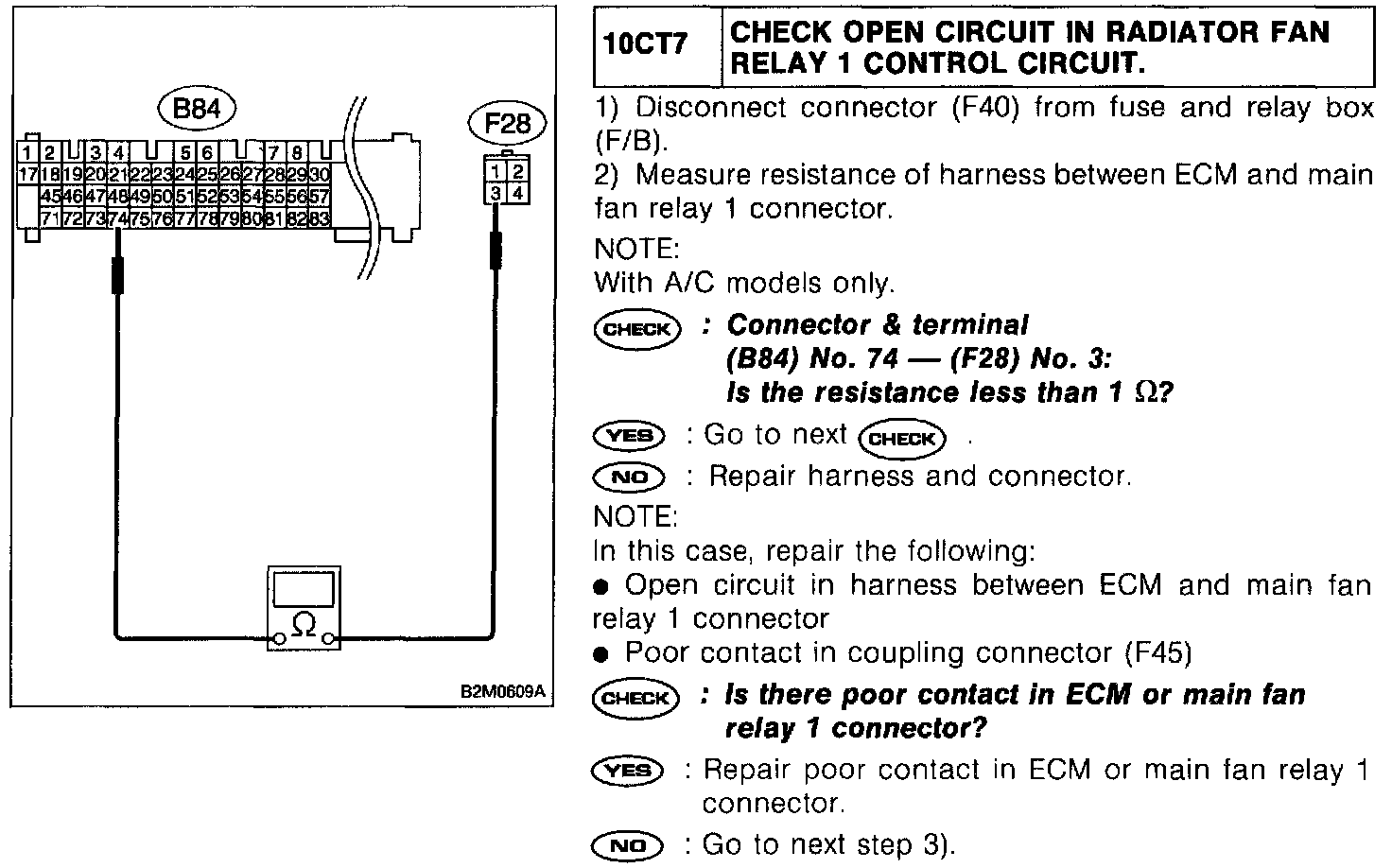

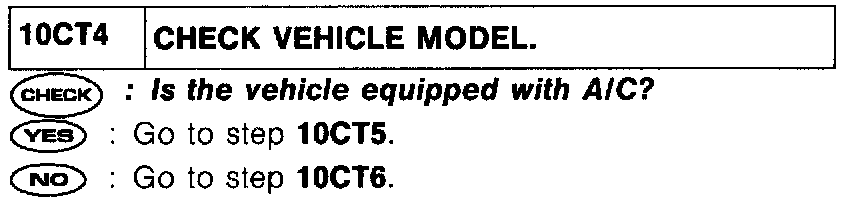

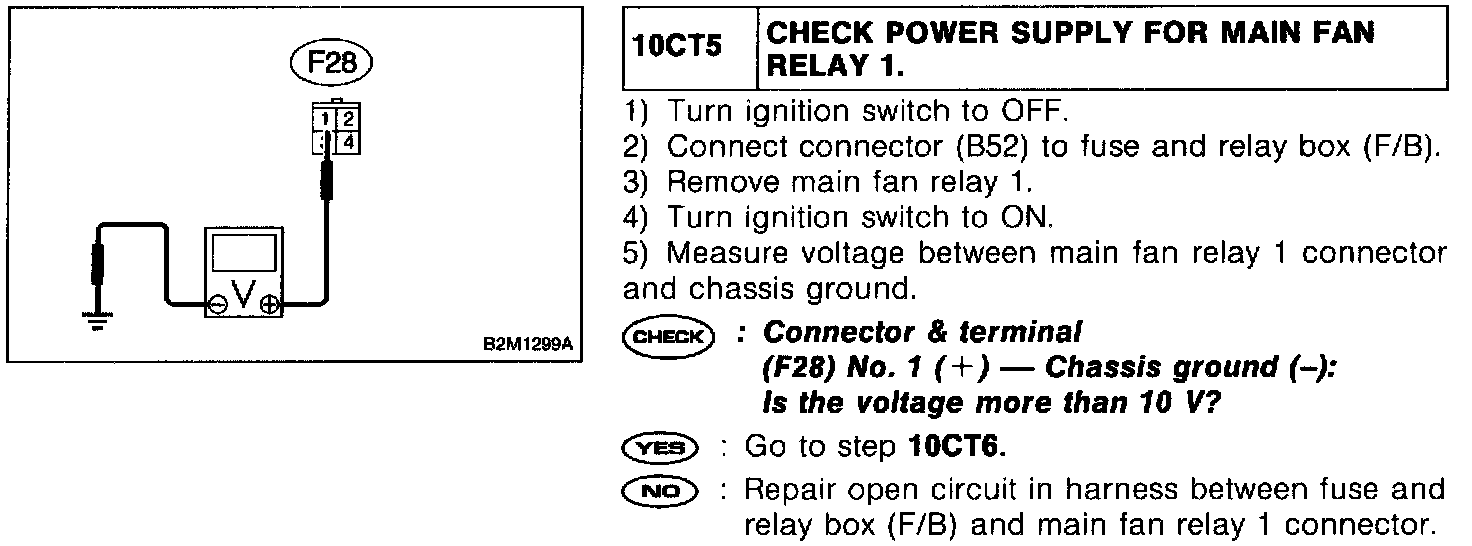

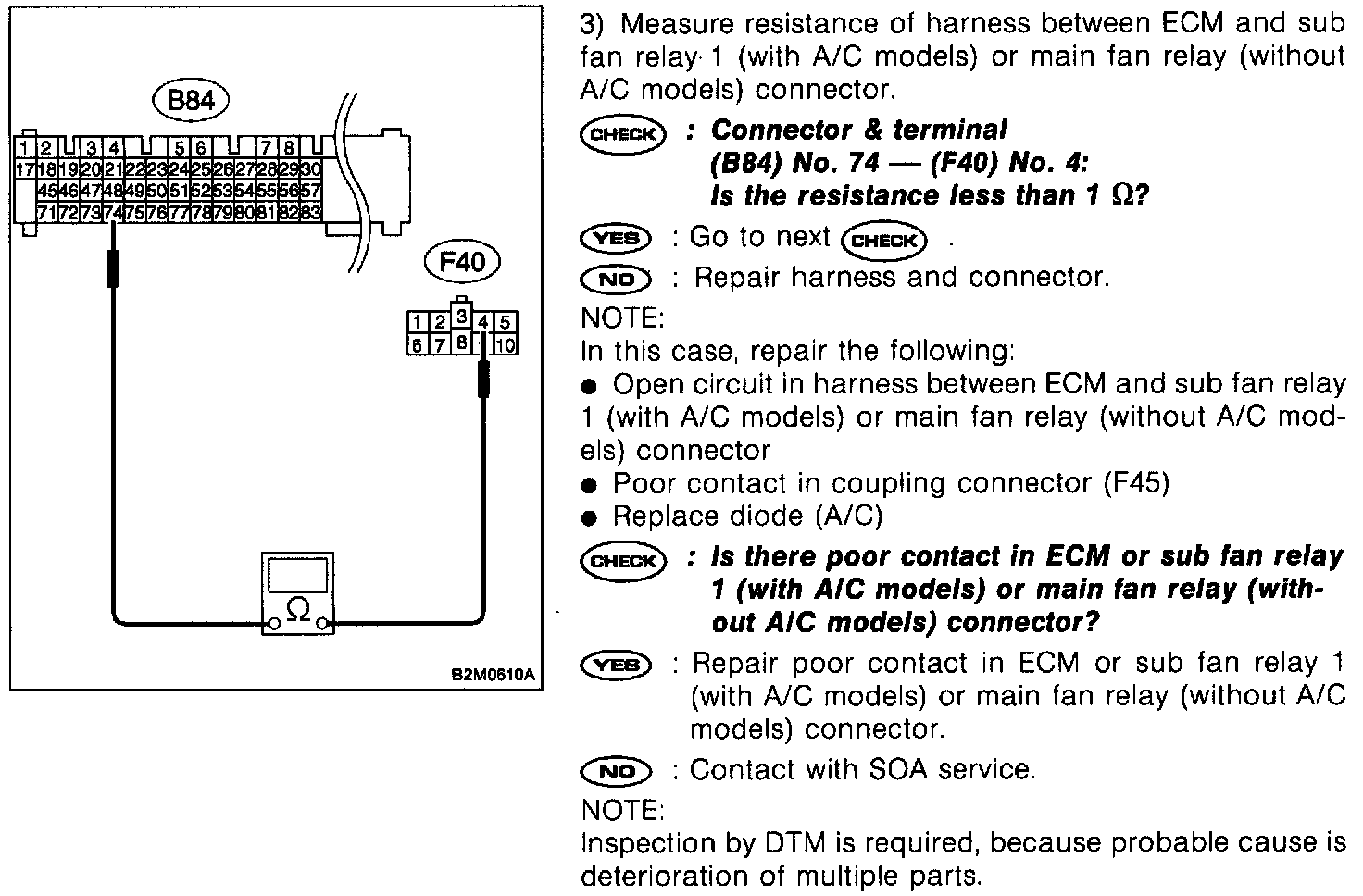

PROCEDURES
